GEPRC 官方GPS 定位模組，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

Hello all FPV enthusiasts, in order to upgrade the user experience, the GEPRC team has developed a new integrated multi-functional GPS positioning module: GEP-M8Q, which is based on the GEP-M8U.

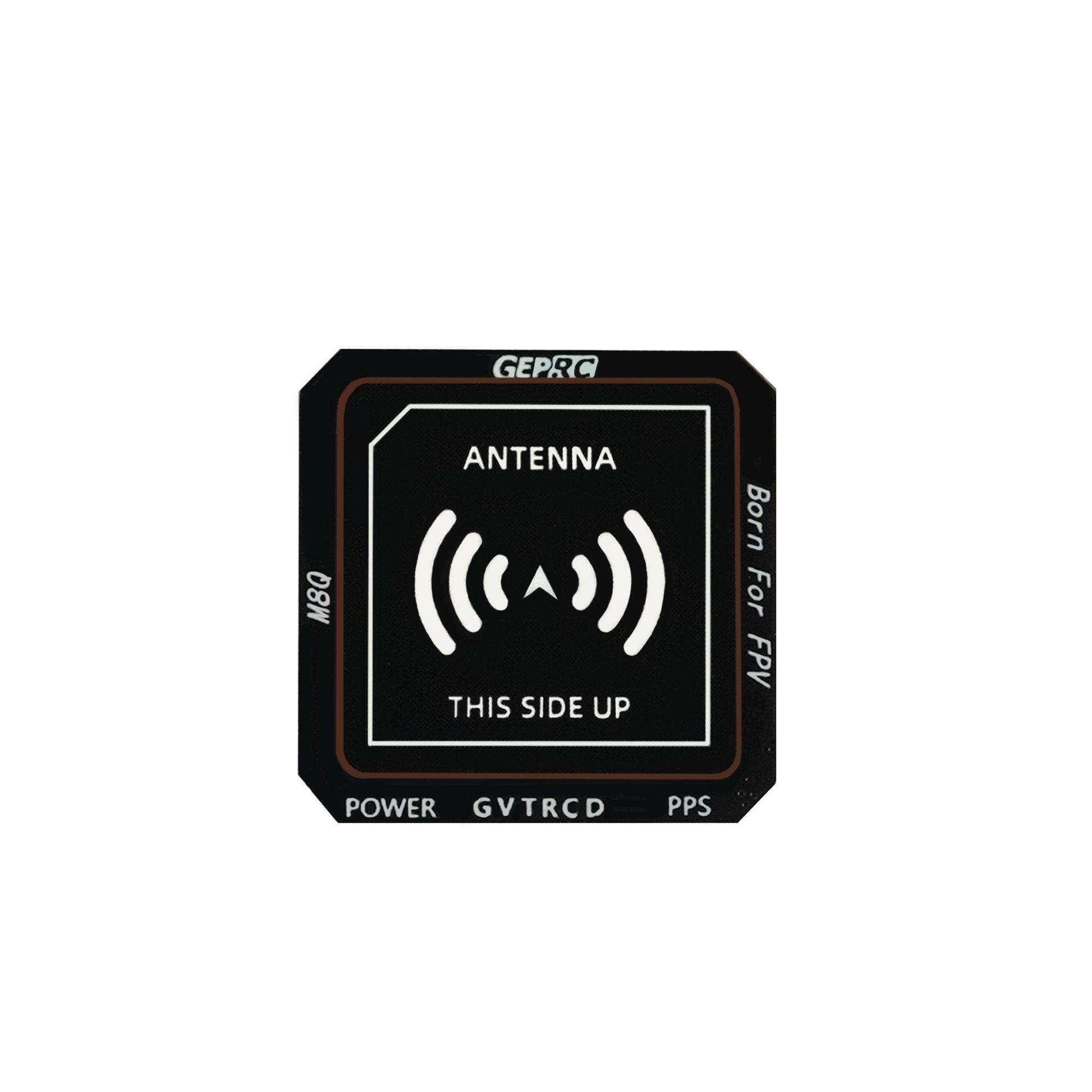

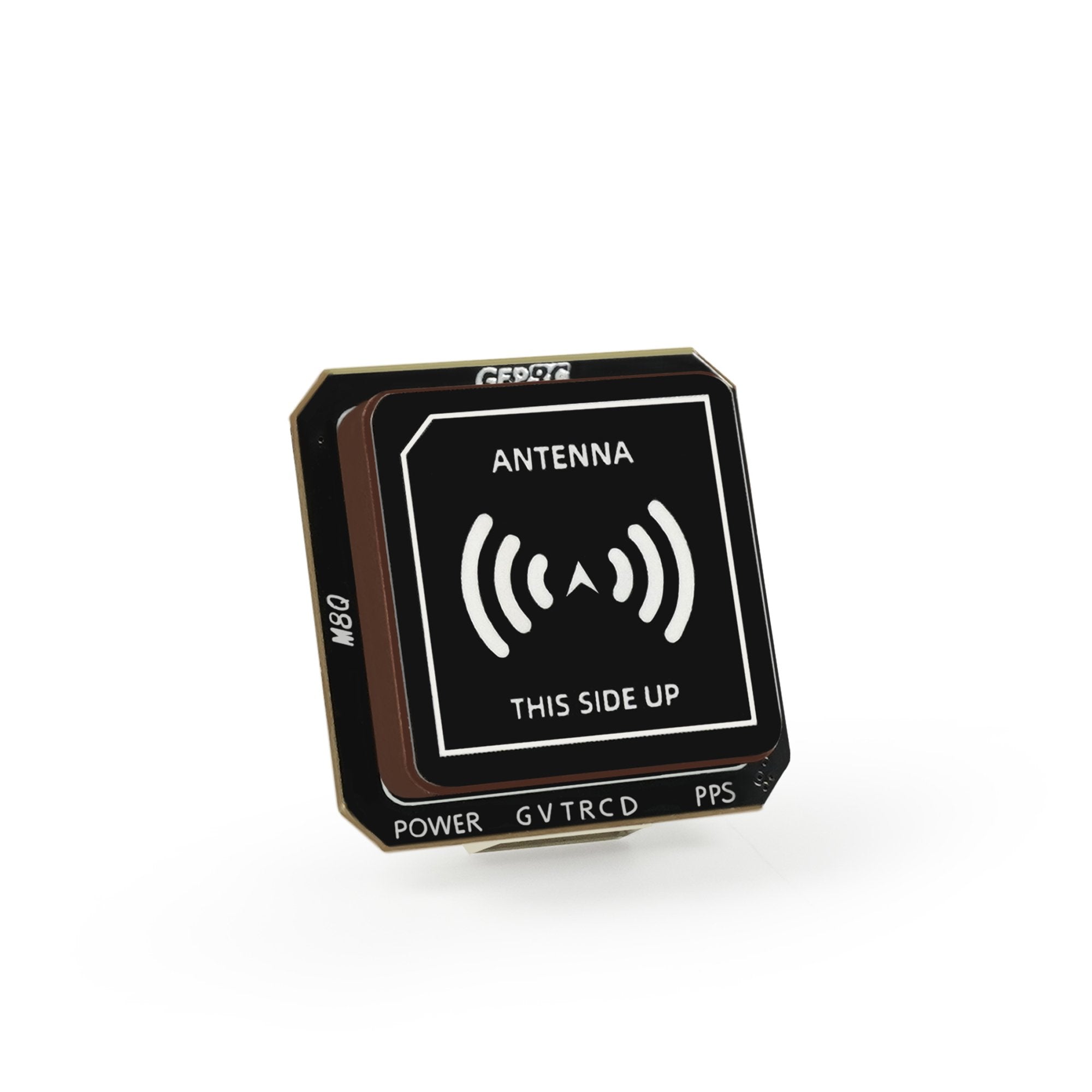

GEP-M8Q has the features of small size, fast positioning, stable connection and easy to use. The right circularly polarized patch antenna provides excellent reception capability. Built-in QMC5883L high-precision magnetometer provides accurate azimuth pointing. Integrated MS5611 high precision barometer, subtle altitude changes are not to be missed, more stable flight. Ideal for use on FPV drones, multi-rotor, fixed-wing and other model products.

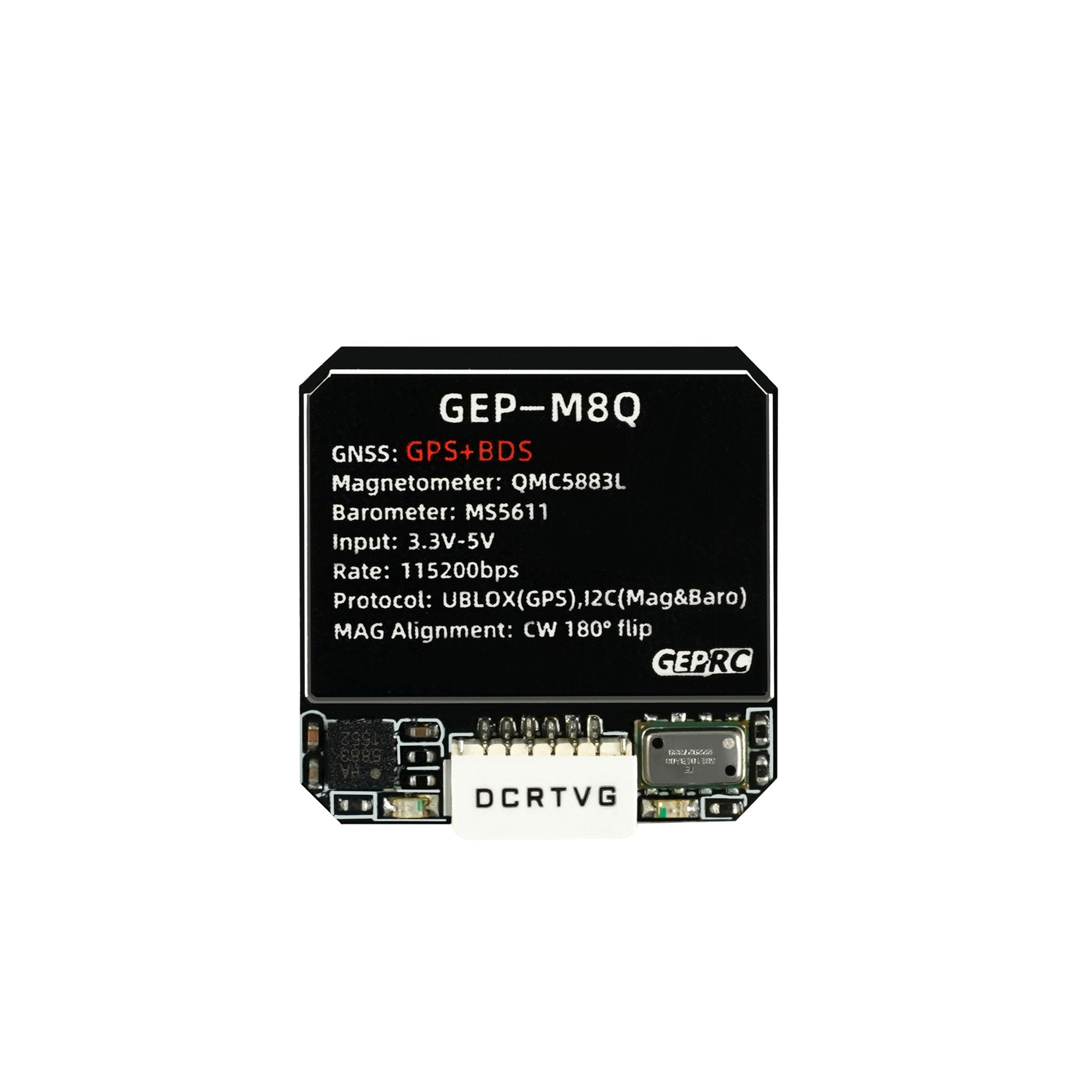

Specifications

Model: GEP-M8Q GPS module

Input Voltage: 3.3V-5V

Receiving Format: GPS，GLONASS，BDS (Choose GLONASS or BDS)

Channel: 72ch

Compass: QMC5883L

Barometer：MS5611

Baud Rate: 115200bps

Output Connector: SH1.0-6P

Communication Protocol: UBLOX(GPS)、I2C(Mag&Baro)

Output Frequency: 10Hz

MAG Alignment：CW 180° flip

Speed Accuracy: 0.05 m / s

Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M

Timing Accuracy: 30 ns

Receiving Sensitivity: Trace -162dBm, Capture-160dBm

Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s

Max Acceleration: 4G

Size: 22mm x 22mm x 8.5mm

Weight: 8g

Feature

1. Fast positioning speed

2. Stable connection

3. Unique appearance design

4. Small size and light weight

5. SH1.0-6Pin terminal design, no soldering required.

6. On-board PPS positioning and power indicator, easy to use.

7. QMC5883L Magnetometer chip，Precise pointing

8. Integration MS5611 High precision barometer

Includes

1 x GEP-M8Q GPS module

1 x SH1.0-6Pin terminal cable

1 x GEP-M8Q GPS user manual

1 x GEPRC Sticker

2 x Heat shrink tube
