GEP-M1025 Series GPS Module｜GPS 定位模組

GEP-M1025 Series GPS Module｜GPS 定位模組

GEPRC 官方GPS 定位模組，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

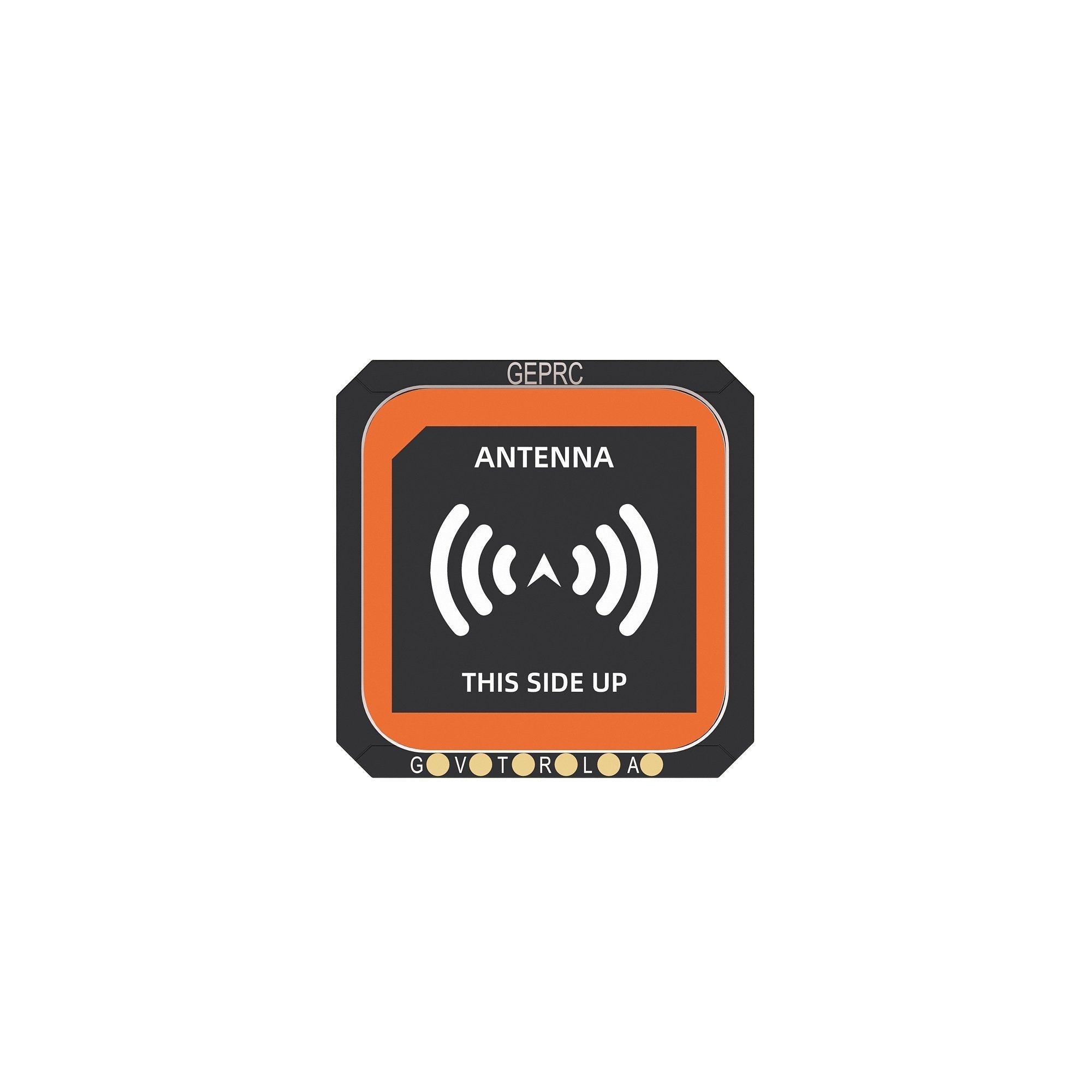

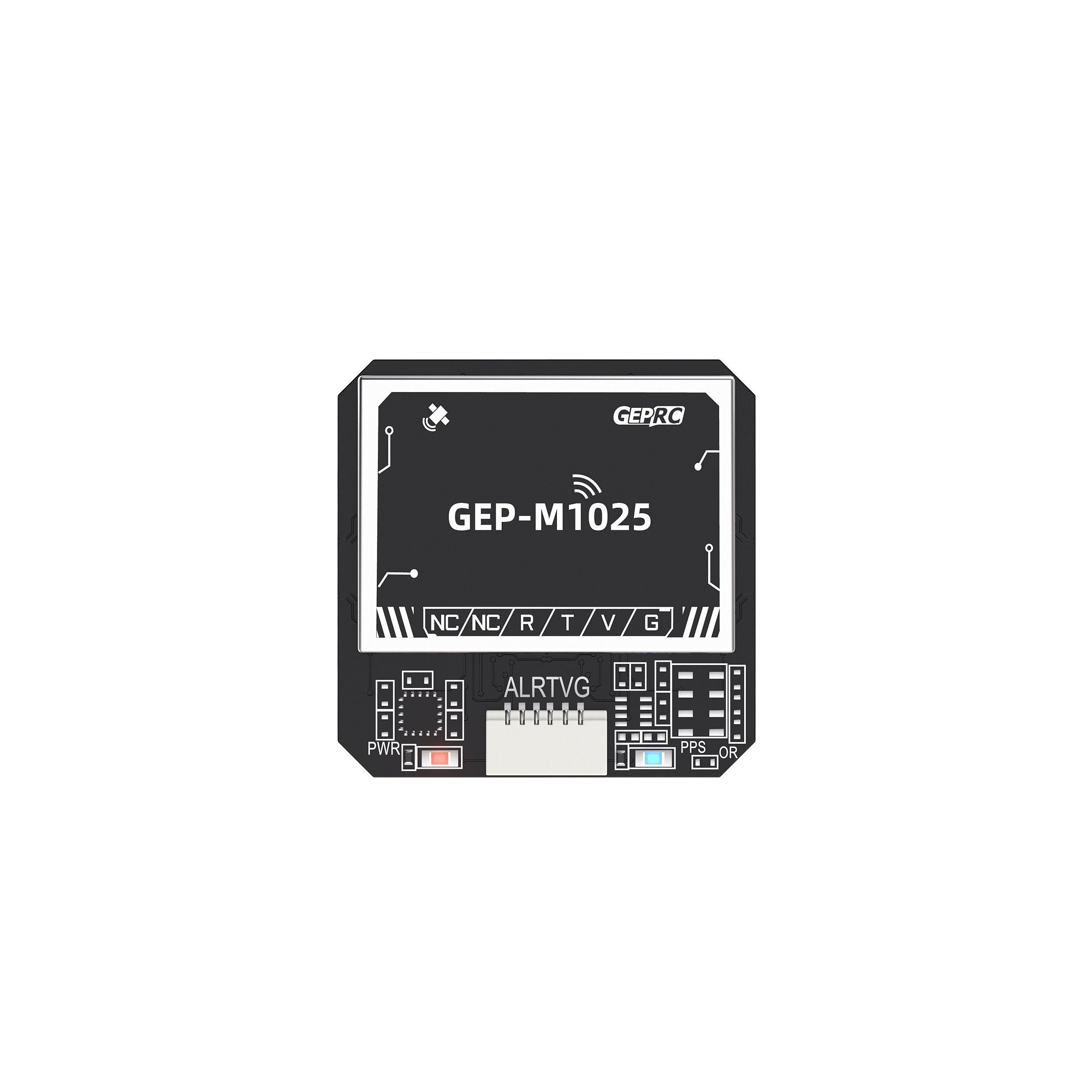

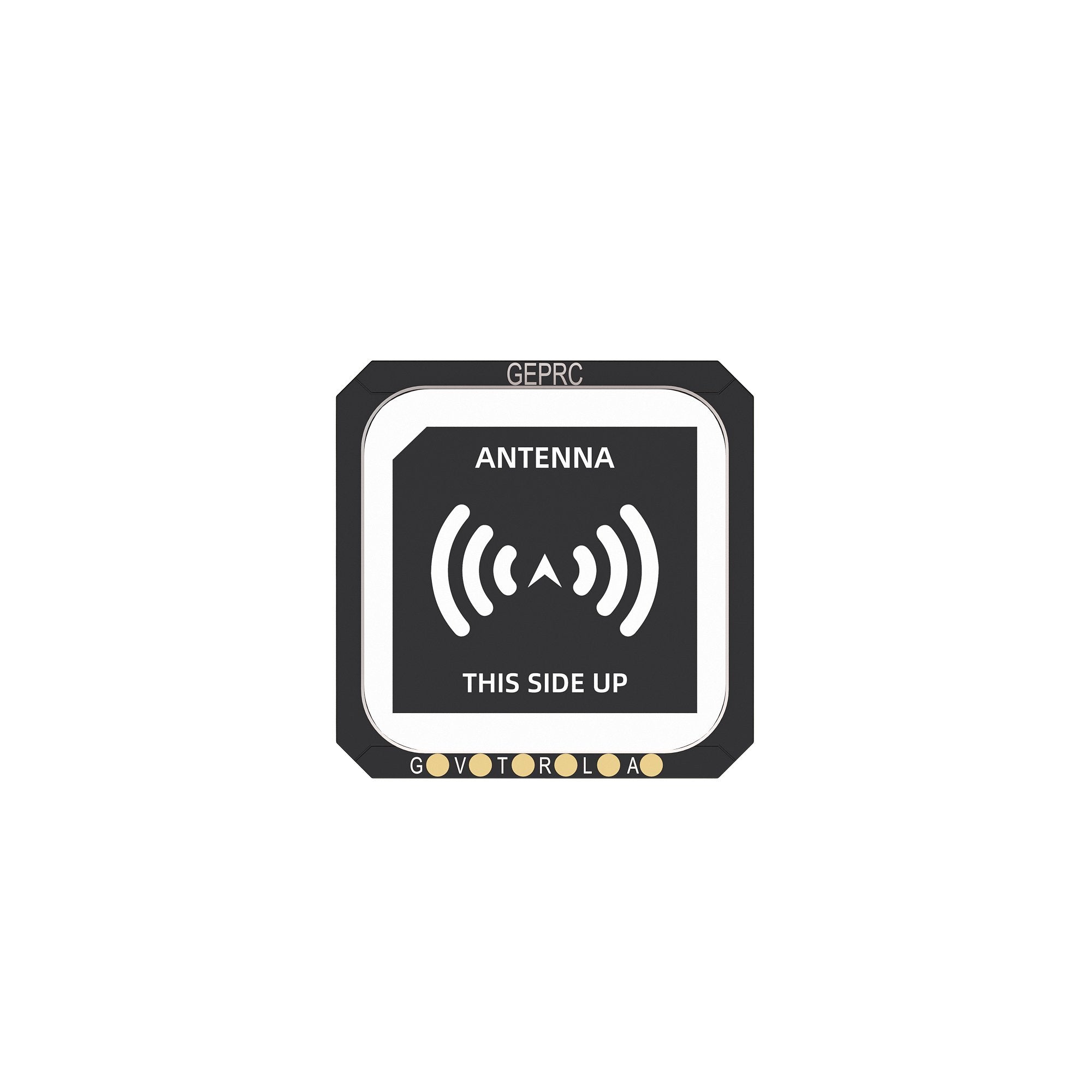

The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on u-blox M10050 chip and using 25*25mm antenna are now launched.

The GEP-M1025 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

Note: The direction of the magnetometer in INAV should be set to QMC5883: CW 0° flip, IST8310: CW 90° flip.

Due to the current out-of-stock status of the DPS310 barometer, it will be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers, and the old and new versions will be shipped randomly.

Note: Due to the current out-of-stock status of the DPS310 barometer, it will be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers, and the old and new versions will be shipped randomly.

Feature

u-blox M10 series chip

GPS+BDS+Galileo+QZSS+SBAS joint positioning

Fast positioning speed,Up to 32 satellites

Stable connection quality

25*25mm antenna size, better signal receiving performance

Built-in Flash chip and Farad capacitor

Onboard indicator light, easy to use

Optional integrated magnetometer+barometer, more collocation scheme

Includes

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing
