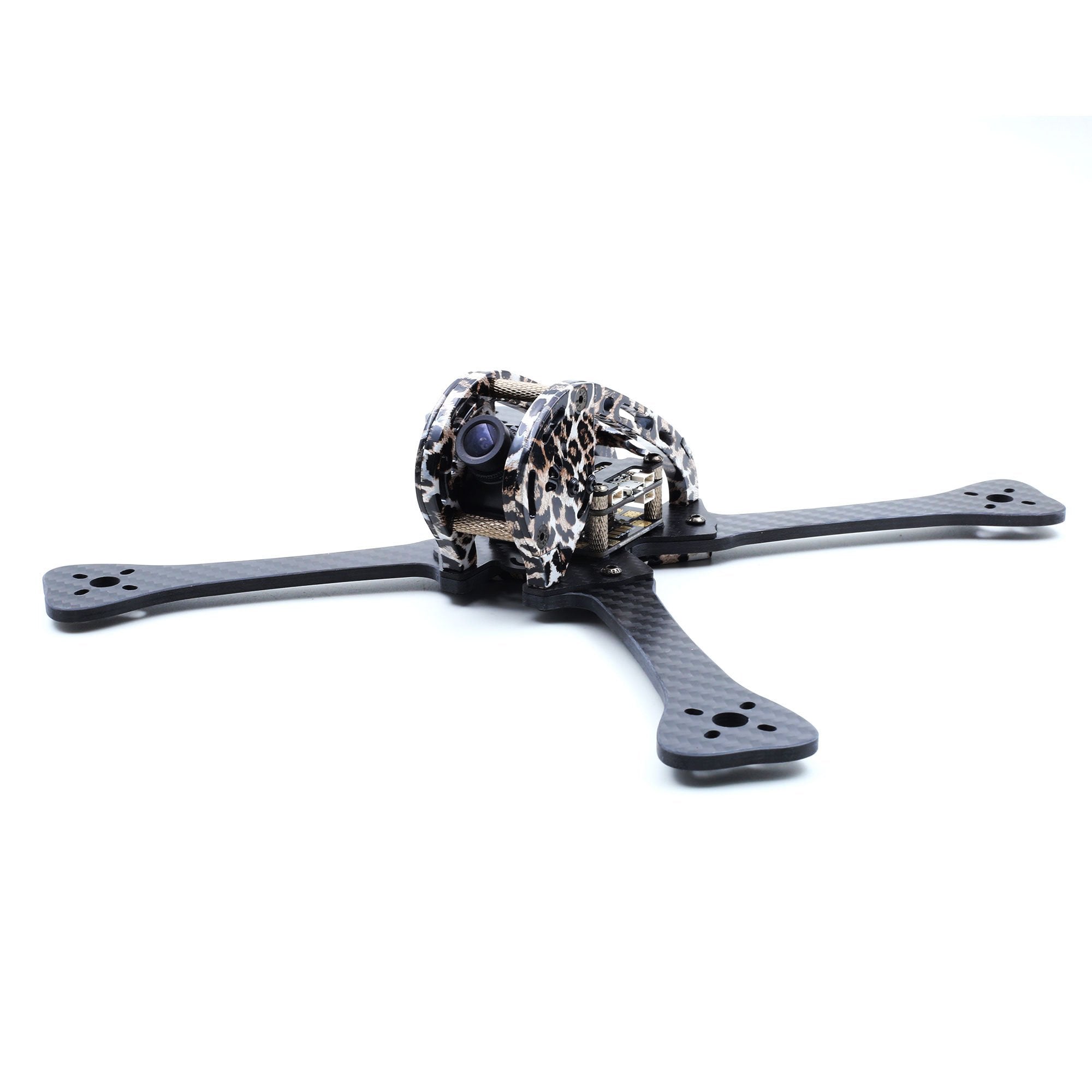

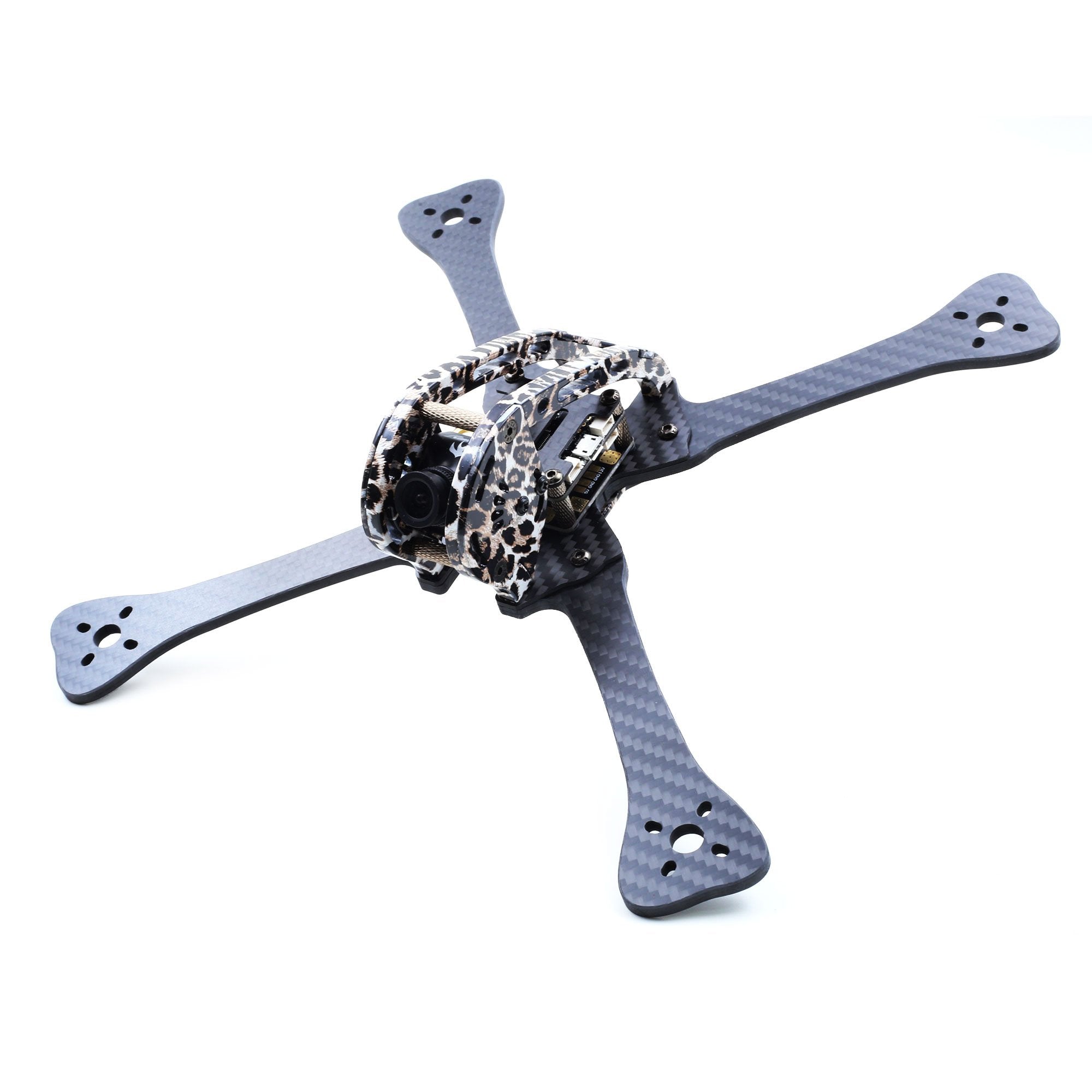

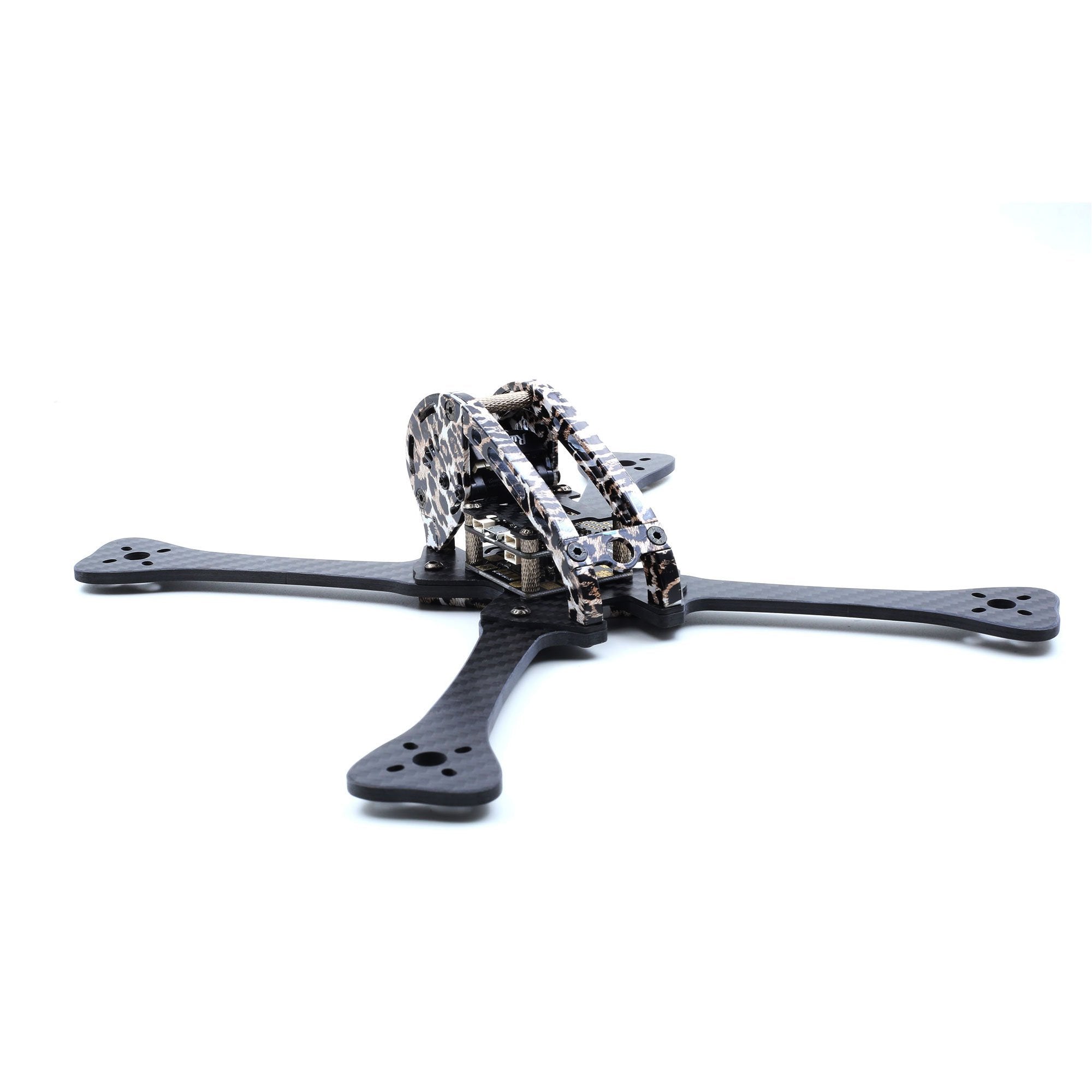

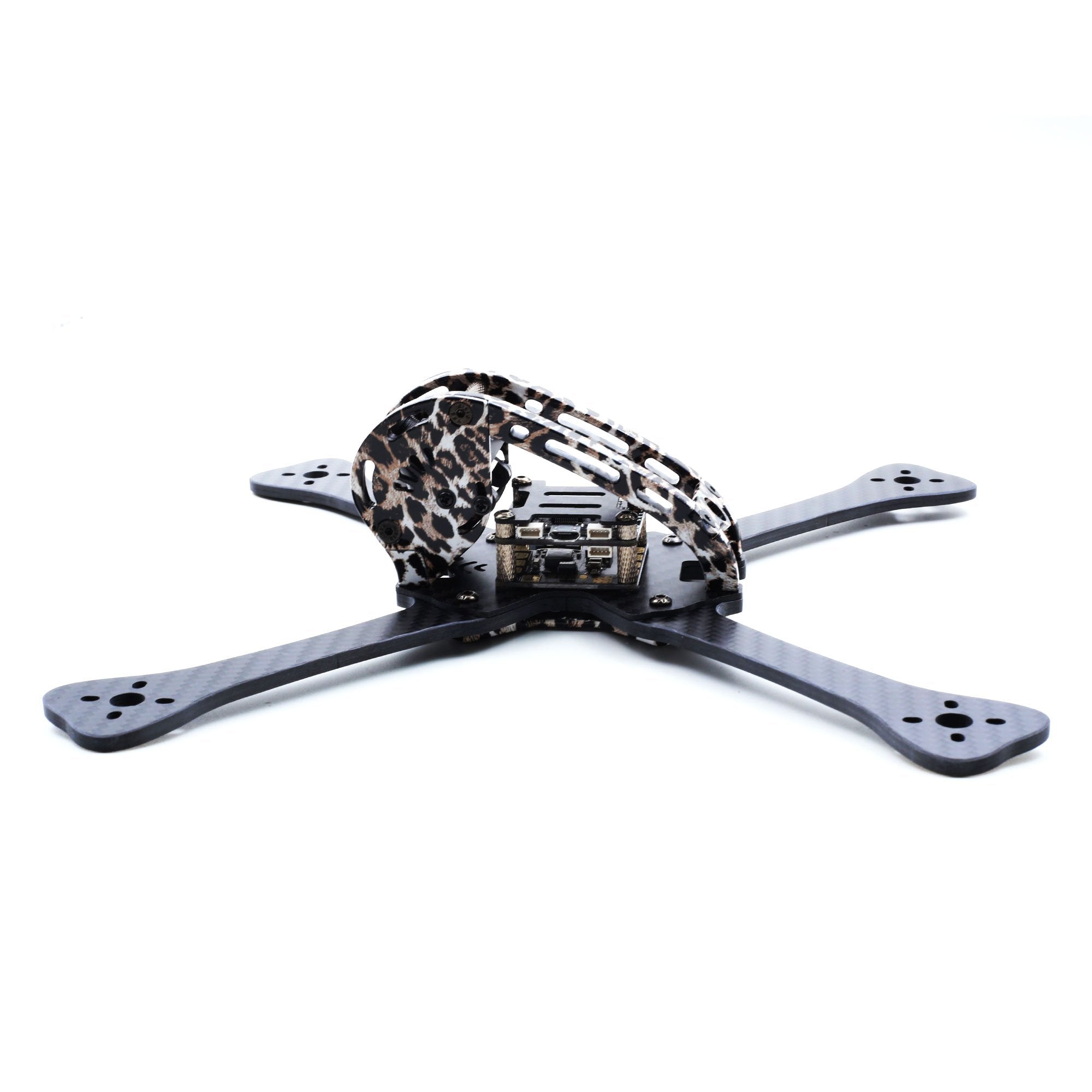

GEP-LX6-V3 Leopard Frame｜FPV 機架

GEP-LX6-V3 Leopard Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

The leopard, natural predators, running at a staggering rate

This is the GEP-LX, also called ‘Leopard’, There are three kinds of specifications respectively. 4inch(wheelbase 195mm), 5inch(wheelbase 220mm), 6inch(wheelbase 255mm). The fuselage low center of gravity design.

The machine use 3k ultra-light carbon plate + Aviation aluminum # 7075 body. To strengthen the four arm, we also design a fixed four arm of the aluminum alloy parts, it is not easy to make the machine arm shift.

In order to perfect fit more lens, we presented two schemes of board. The optimum foxeer HS1190 models of cameras and 1 or 2 generation Runcam Swift models of cameras. We also equipped with A piece of PDB, take BEC output 5 v 3 A and 12V 0.5A.The frame all adopt the YFS screws, 12.9 magnitude

Specifications：

Name：GEP-LX6-V3 Leopard

Weight：123g

Wheelbase：255mm

Props Size: 6inch

Size：220*220mm

Arms board:4mm

Side board:2mm

Other board:1.5mm

Recommended：

Flight Controller：F3 /F4/Naze32/ CC3D

Motors： 2204/2205/2206/2305/2306

ESC：20A-30A

Propeller：6inch

Battery: 3S 1300mAh ~ 4S 1500mAh

Features：

1. Aviation aluminum # 7075 high-precision CNC fuselage, very strong resistance to blast

2. 3K high strength carbon board to ensure that the frame is strong

3. An aluminum alloy structure, binding the four machine arm will not shift

4. “True X” Structure. Suitable for competition and Freestyle fancy flying

5. Reasonable gopro, runcam position, convenient video

6. 13.5 mm wide, 4 mm thick arm design, small wind resistance coefficient

7. 5 inch wheelbase 220 mm, 4 “wheelbase 195 mm, 6 inch wheelbase 255 mm, have wider air through

8. The YFS screws, 12.9 level of hardness

9. Two sets of cameras side panel, support HS1190 HS1170, Swift, ovf lens, etc

10. The motor position widened, home is not easy to hit the motor

11. The camera is adjustable, 0 to 60 degrees

With the kits: a pie
