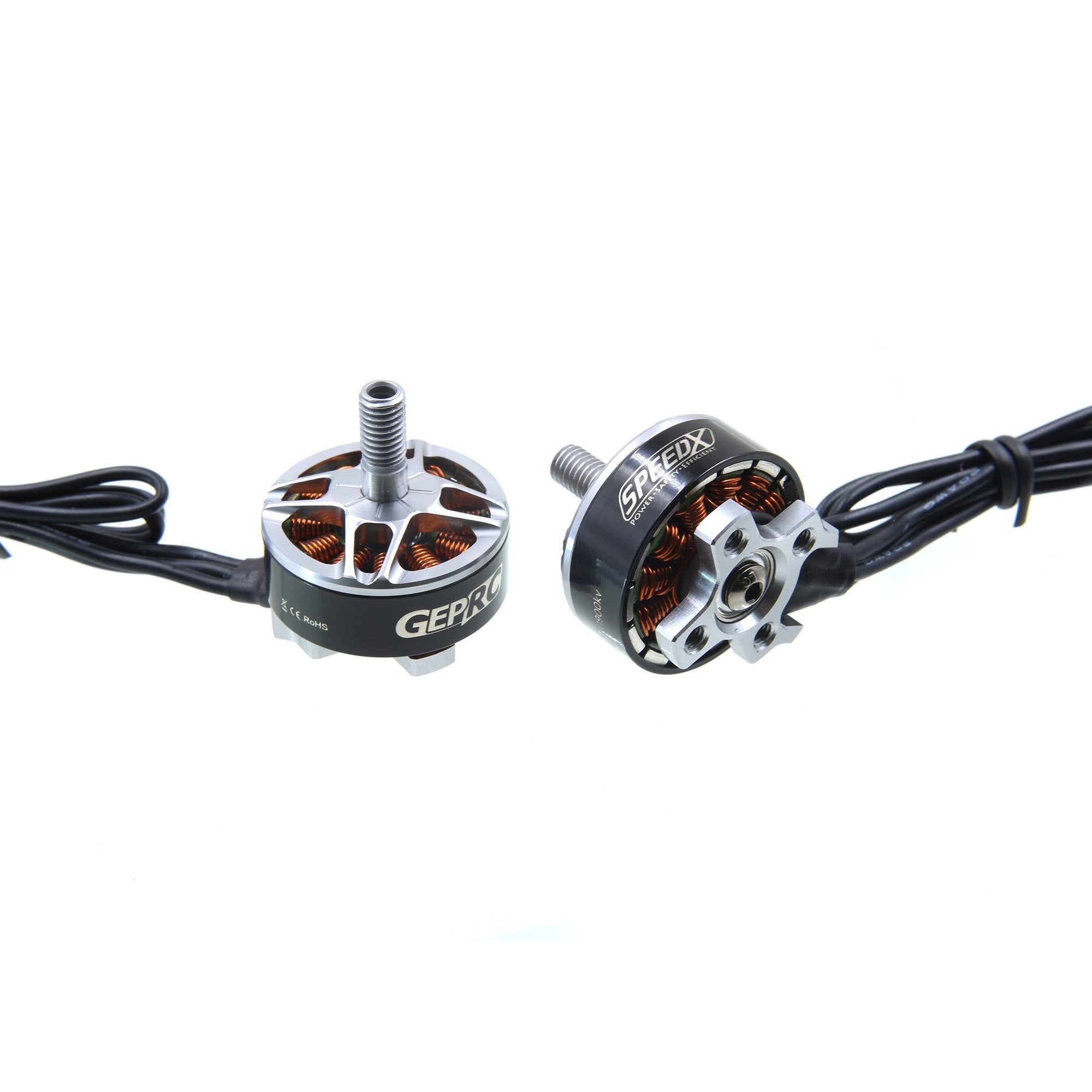

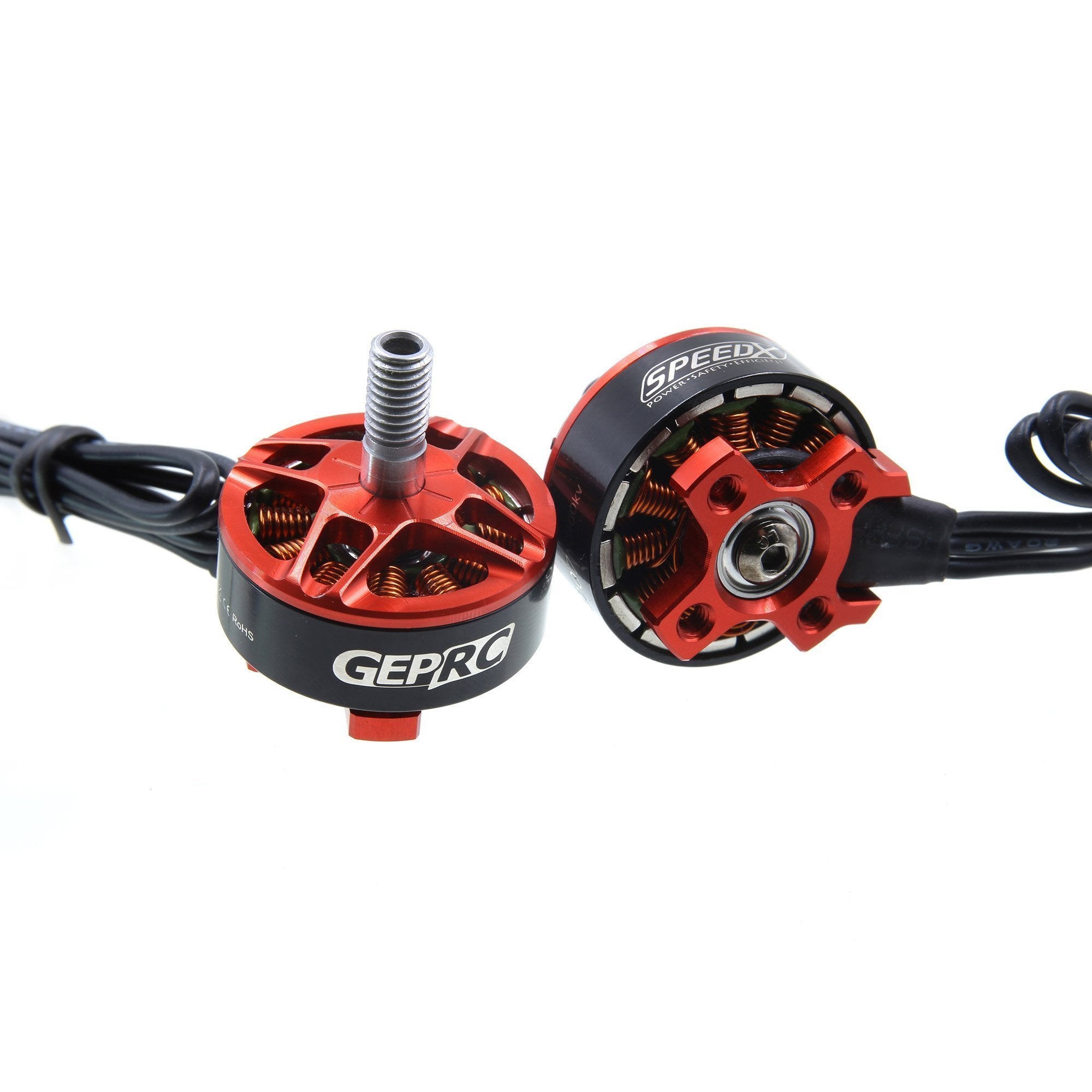

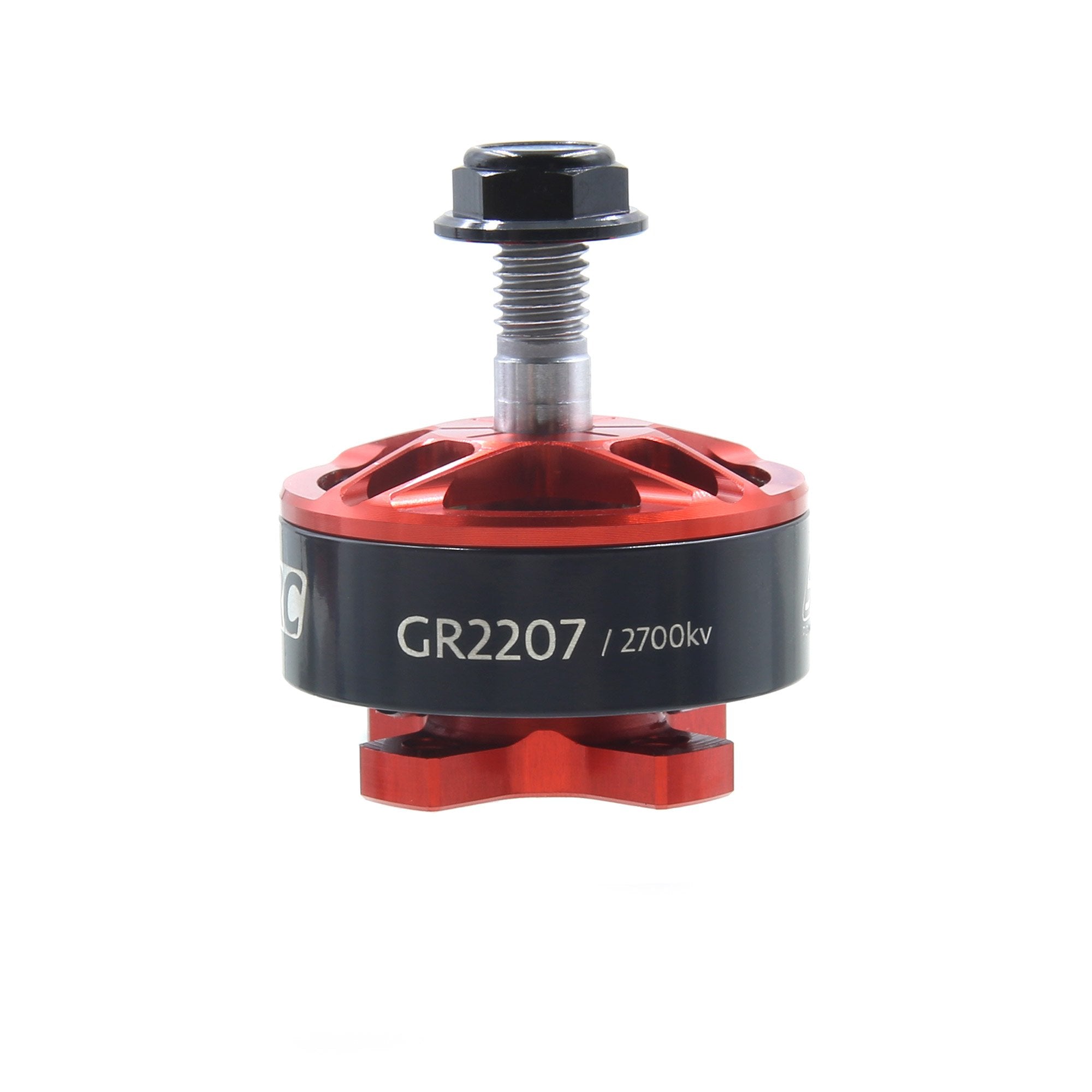

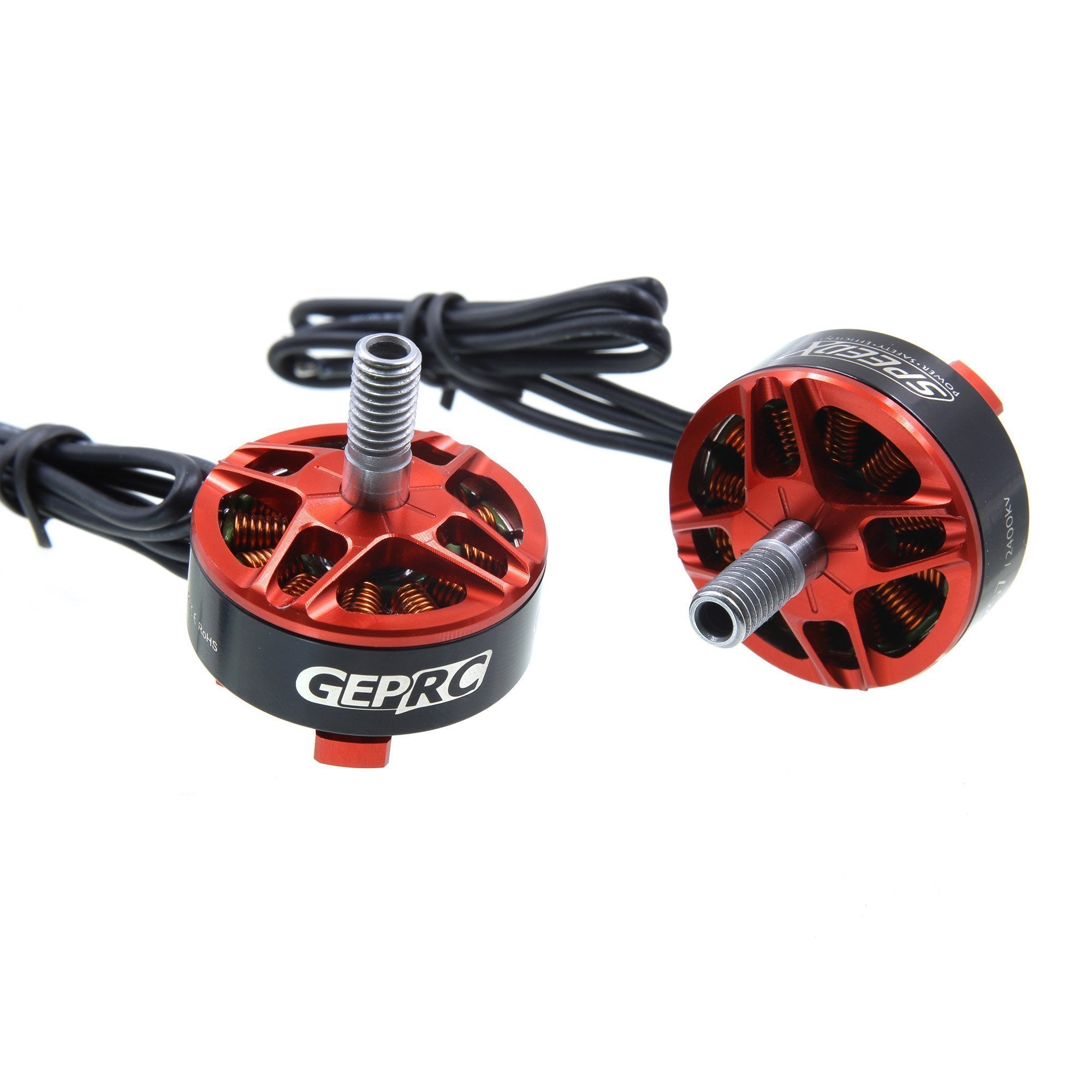

GEP-GR2207 2700kv motors｜無刷馬達

GEP-GR2207 2700kv motors｜無刷馬達

GEPRC 官方無刷馬達，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

After two months of testing optimization, GEP-GR2207 was finally produced. The exterior still USES the four-sided structure of GR2306, which is durable and beautiful.

GR2207 is made of advanced materials, including NSK bearings, 7075 aluminum, high precision CNC, N52H arc magnets, etc. GR2207 provides 3 kv, which is 1900kv, 2400kv and 2700kv respectively. Each kv can meet different needs. 1900kv is efficient for long range flight. The 2400kv is suitable for Freestyle flight, efficient and powerful. 2700kv is more suitable for racing. In addition, GR2207 also provides two colors, Chinese red and titanium.

Specifications

：

Item name: GEP-GR2207

KV:2700kv

Configuration:12N14PStator Diamter:22mm

Stator Length:7mm

Shaft Diameter:4mm(Hollow)

Motor (Dimension(Dia.*Len)): Φ26.7*30.5mm

Idle current(10)@10V(A):2.8

No.of Cells(Lipo):4~5S

Max Continuous (Power(W)15S):1000

Internal Resistance:29mΩ

Max Current(30S):48A

Max.Effciency Current:(4-8A)>81%

Rotor: N52H arc magnets

Bearings:NSK

Base casing: Al 7075

Wire AWG: 20AWG

Weight(g):31

Features:

NSK high-efficiency bearings

0.15mm silicon steel laminations

N52H arc magnets

Al 7075 CNC

3Kv 1900/2400/2700kv

The weight is 32g only

Includes:

1x GEPRC GR2207 Motor

1x GEPRC M5 Aluminum Lock Nut

4x M3x6 Button head screws

4x M3x7 Button head screws

4x M3x8 Button head screws
