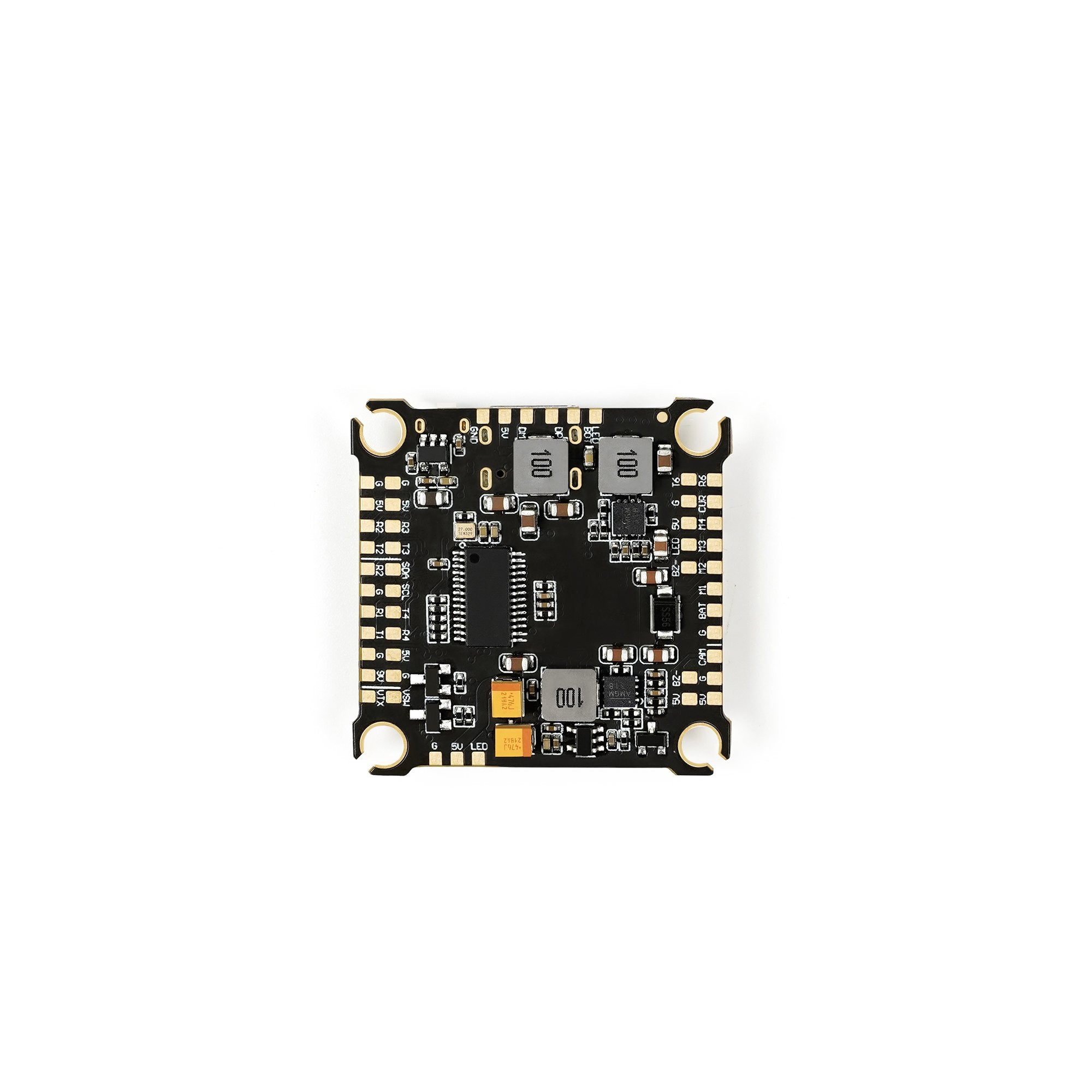

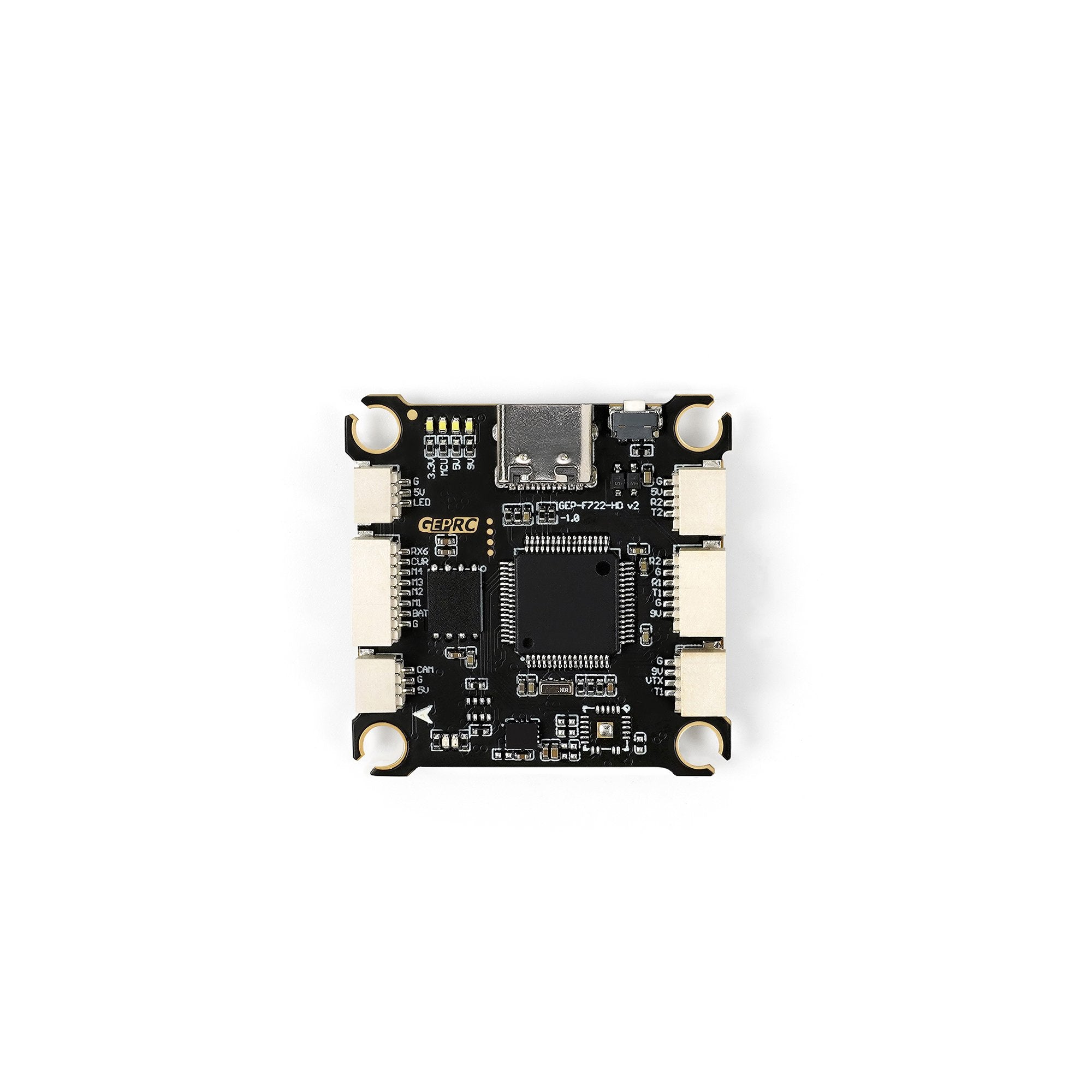

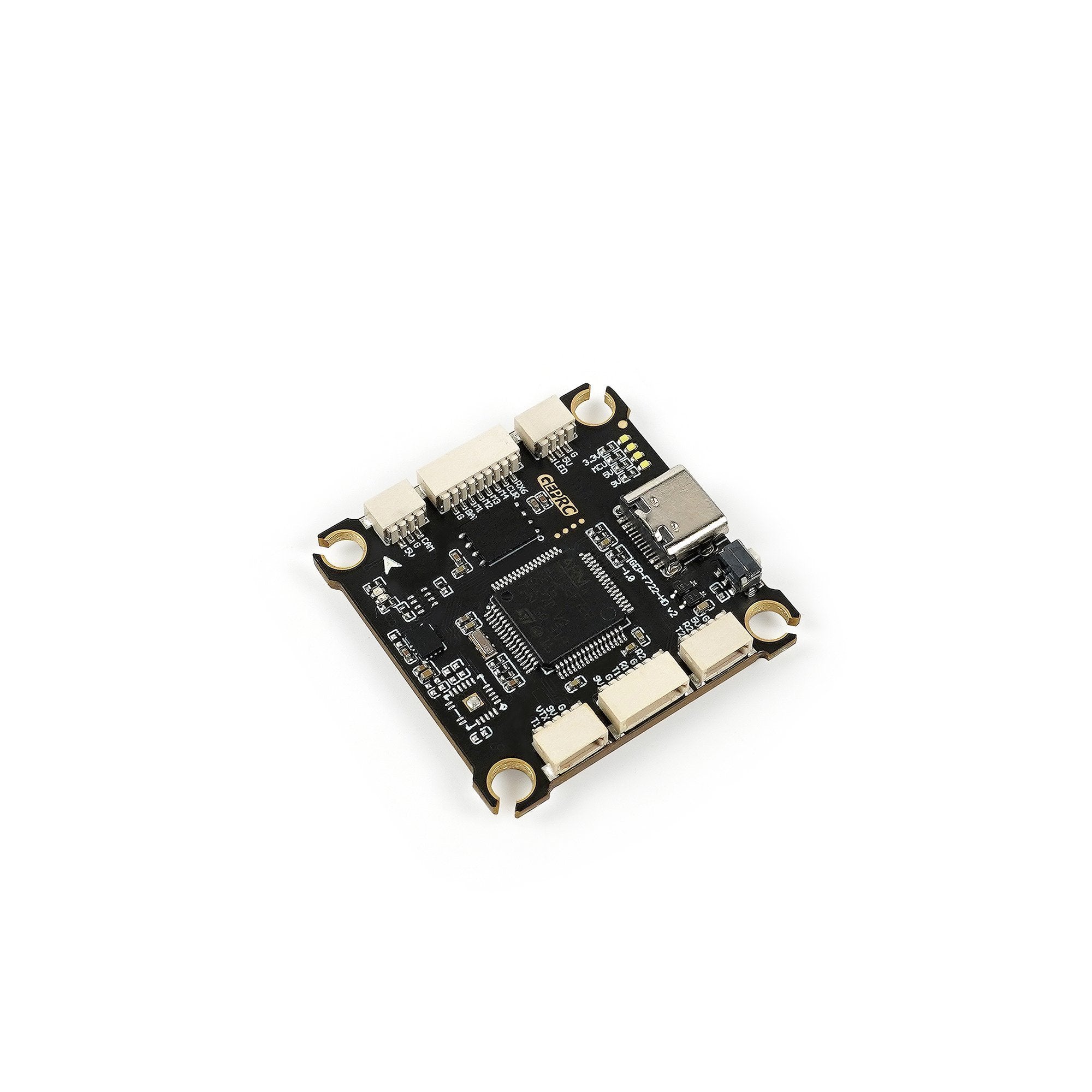

GEP-F722-HD V2 Flight Controller｜飛行控制器

GEP-F722-HD V2 Flight Controller｜飛行控制器

GEPRC 官方飛行控制器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Specifications

MCU: STM32F722

IMU: ICM42688-P(SPI)

Air Unit Connection: Direct plugging into DJI Air Unit

Black Box: 16M onboard

Baro: Built-in Barometer

USB Interface: Type-C

OSD: BetaFlight OSD w/ AT7456E chip

BEC: 5V@3A,

[email protected]

dual BEC

Firmware Target: GEPRCF722

Size: 36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.

Input Voltage: 3-6S LiPo

UART: 5

Power Filter: Integrated LC filter

Weight: 8.1g
