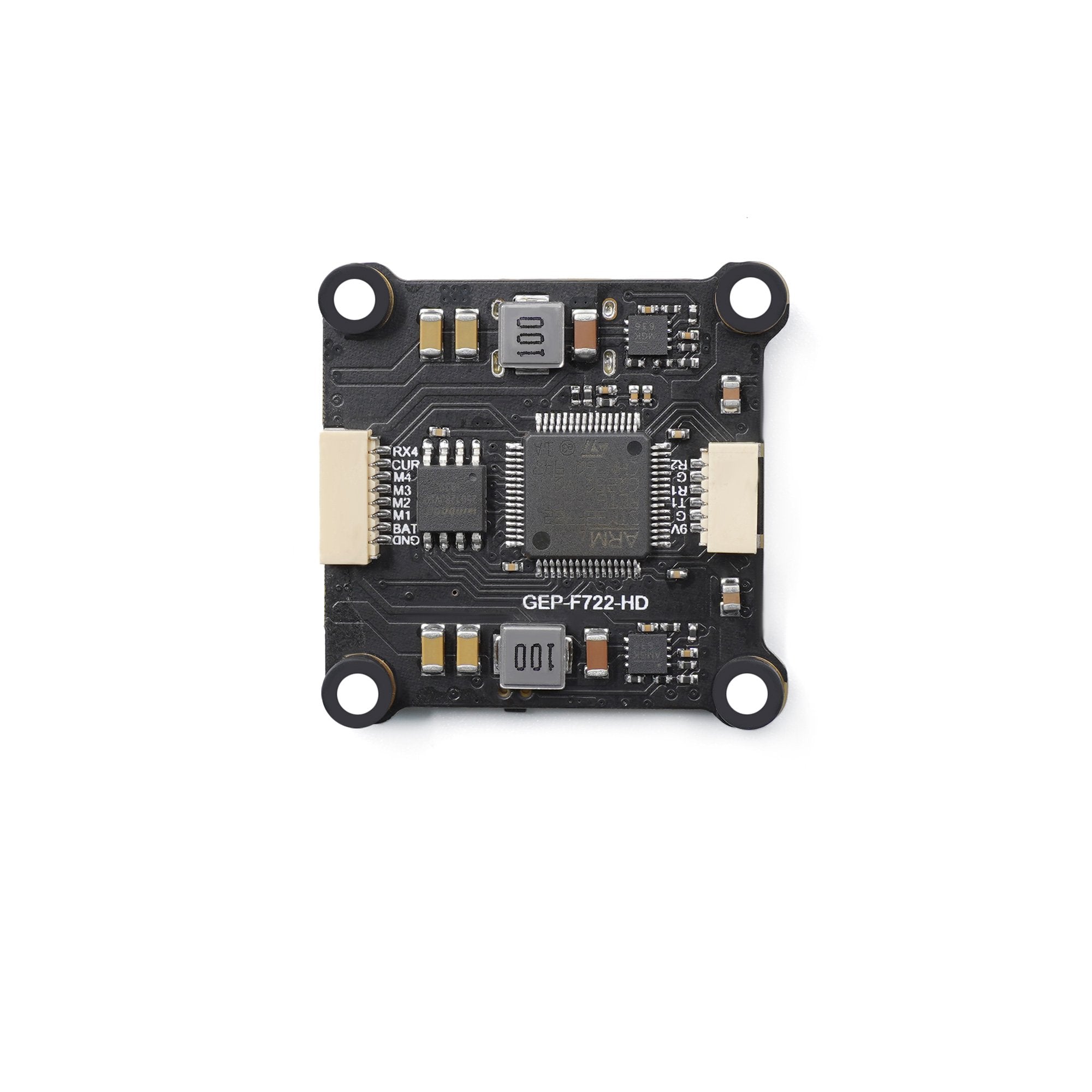

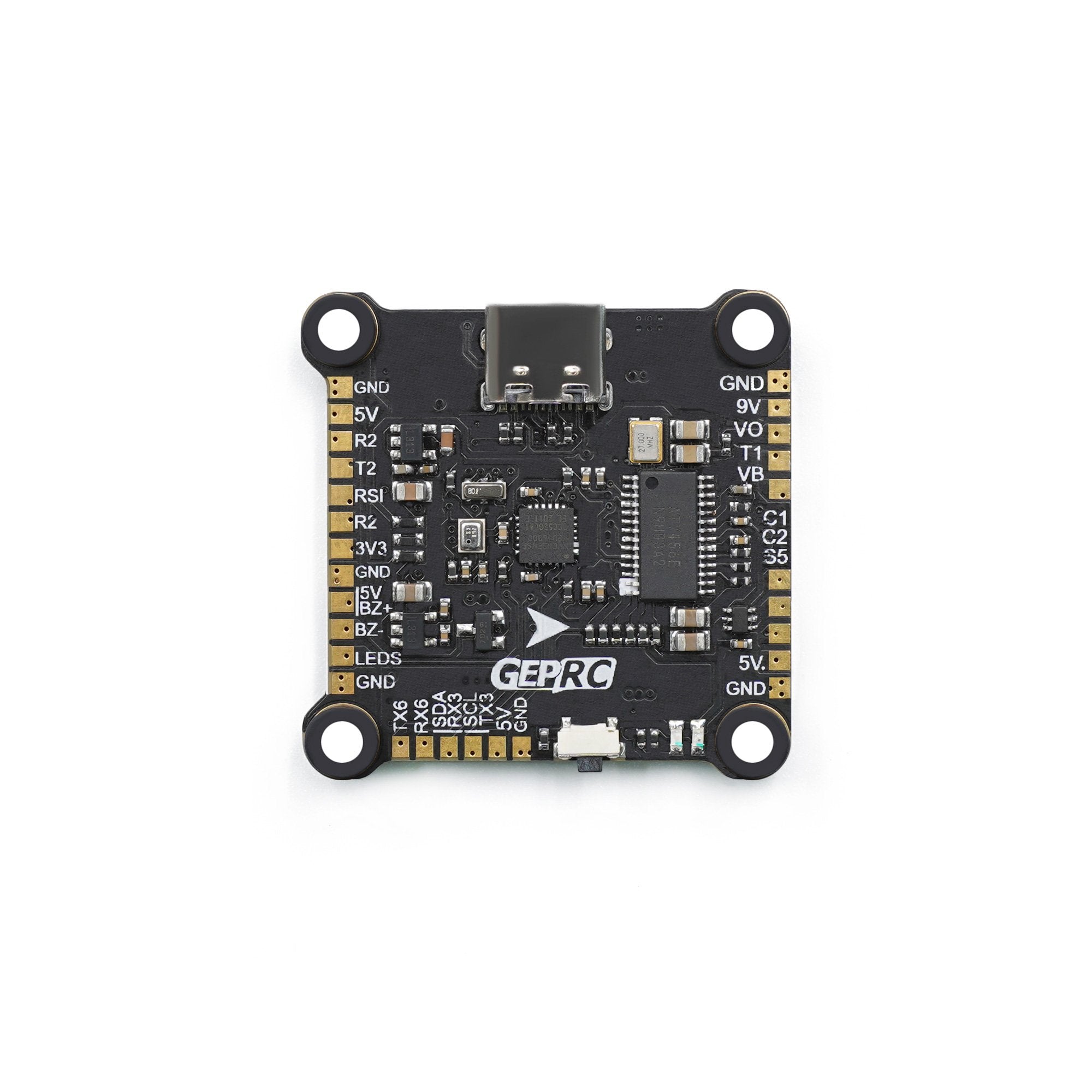

GEP-F722 HD Flight Controller｜飛行控制器

GEP-F722 HD Flight Controller｜飛行控制器

GEPRC 官方飛行控制器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Main Feature:

MCU: STM32F722RET6

IMU: MPU6000(SPI)

BlackBox: 16Mb onboard Flash

Integrated LC Filter

Type-C USB interface

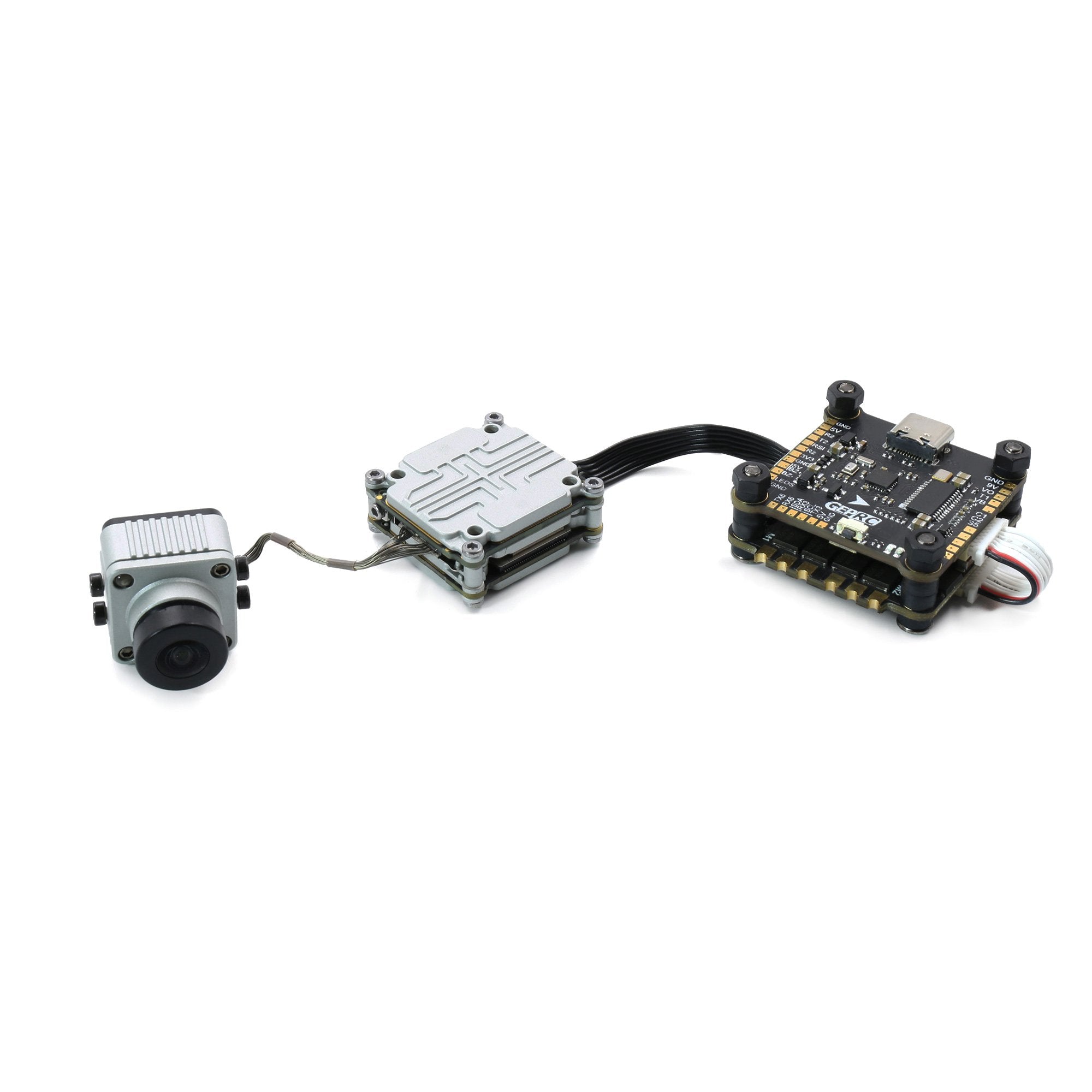

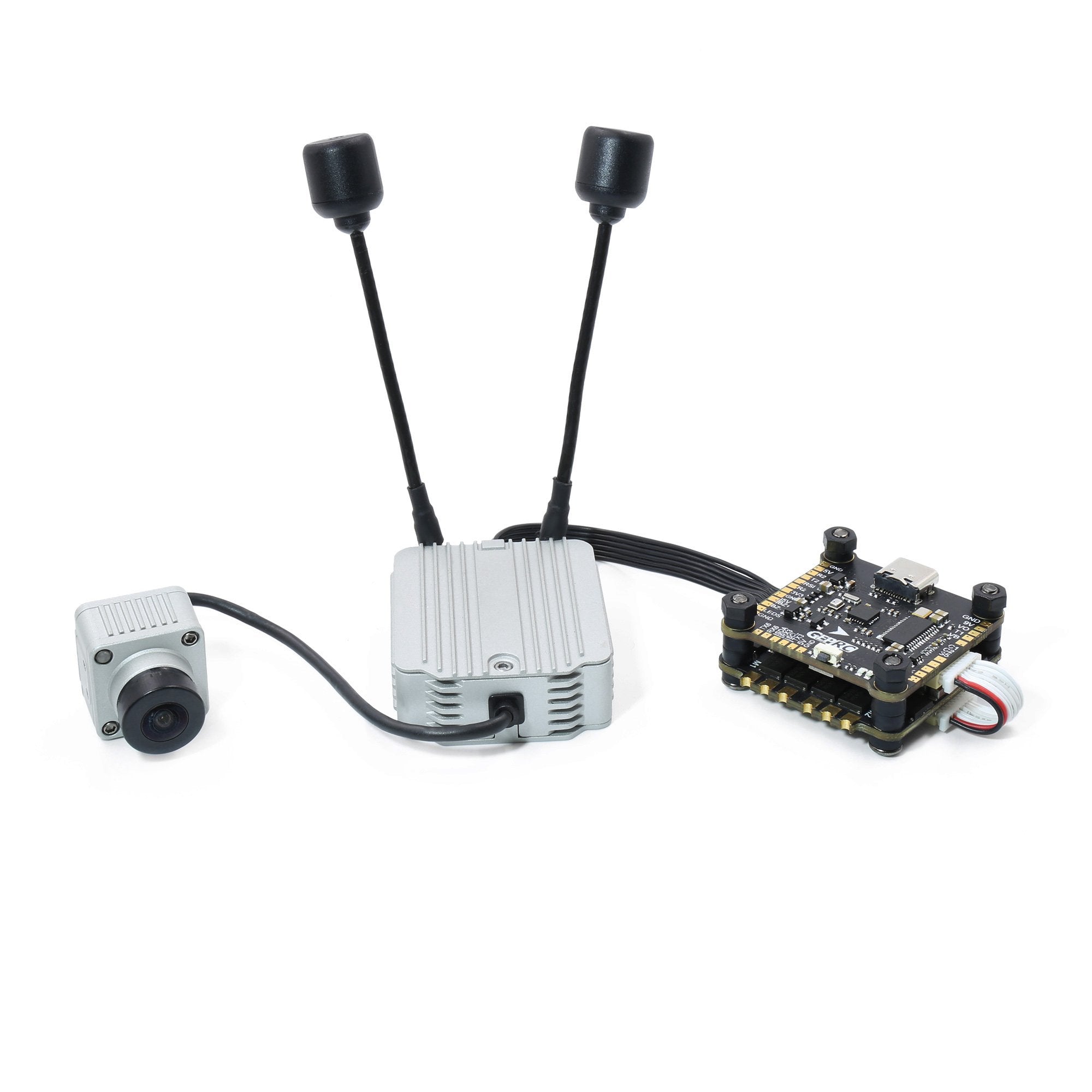

The directly connected DJI Digital FPV System

BLheli_32 50A ESC 4in1

Simple installation method, compact space

Support:Sbus,PPM,CRSF,DSMX,iBus

Specifications:

MCU: STM32F722RET6

IMU: MPU6000(SPI)

DJI FPV Air Unit Supported.

BlackBox: 16Mb onboard Flash

Type-C USB interface

OSD: BetaFlight OSD w/ AT7456E chip

Baro：BMP280

BEC Output: 5V,9V BEC

Integrated LC Filter

Firmware target: GEPRCF722

Size: 36x36mm board, φ4mm with Grommets φ3mm

Power input: 3-6S LiPo

4x UART

Receiver Support:

Frsky XM/XM+/R-XSR

Futaba Receiver

DSM/DSMX

FlySky Receive

TBS Crossfire Receiver

AC900

Most receivers that support SBUS

Include：

1x GEP-F722-HD Flight Controller

4x Silicon grommets M4 to M3

1x ESC Cable

1x DJI Cable
