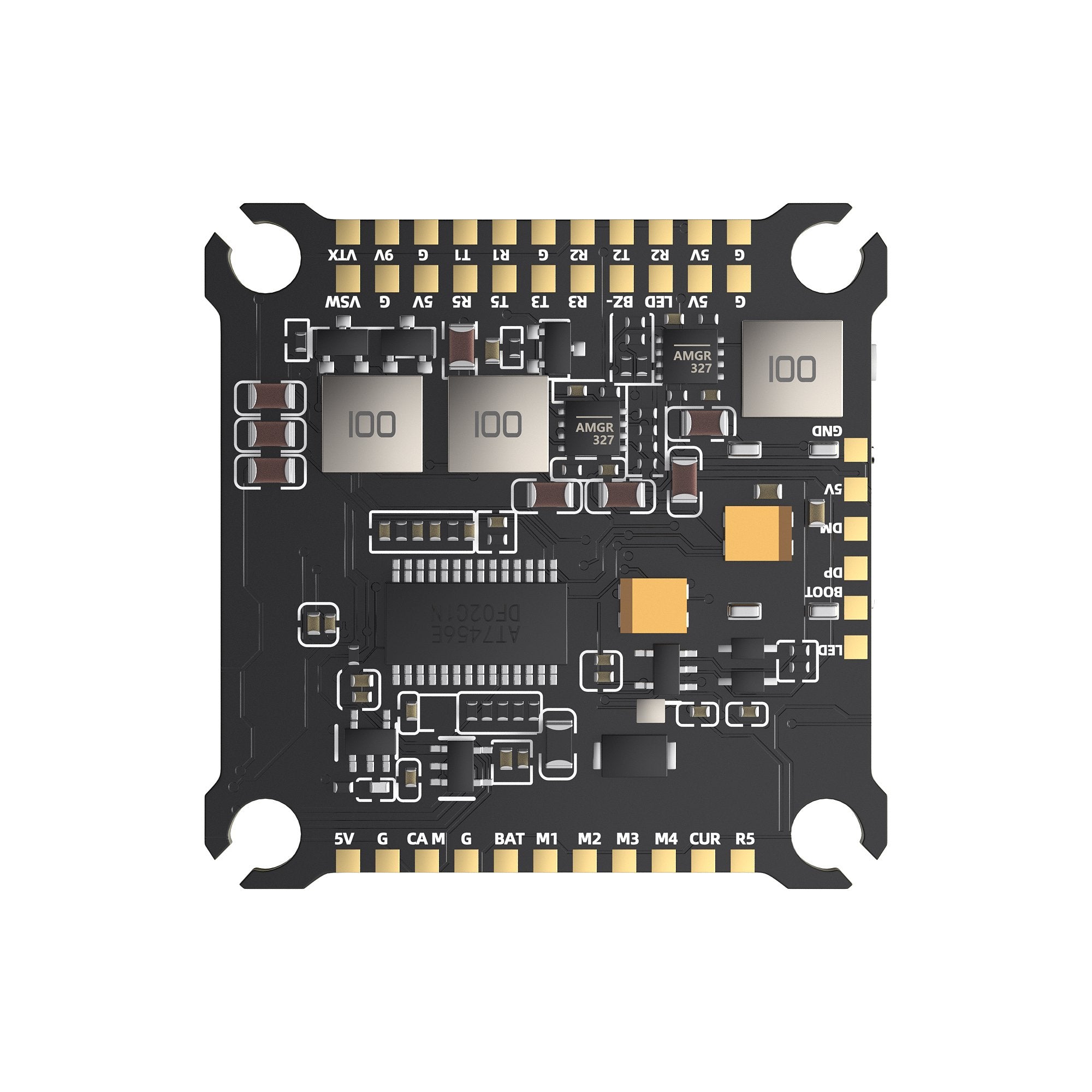

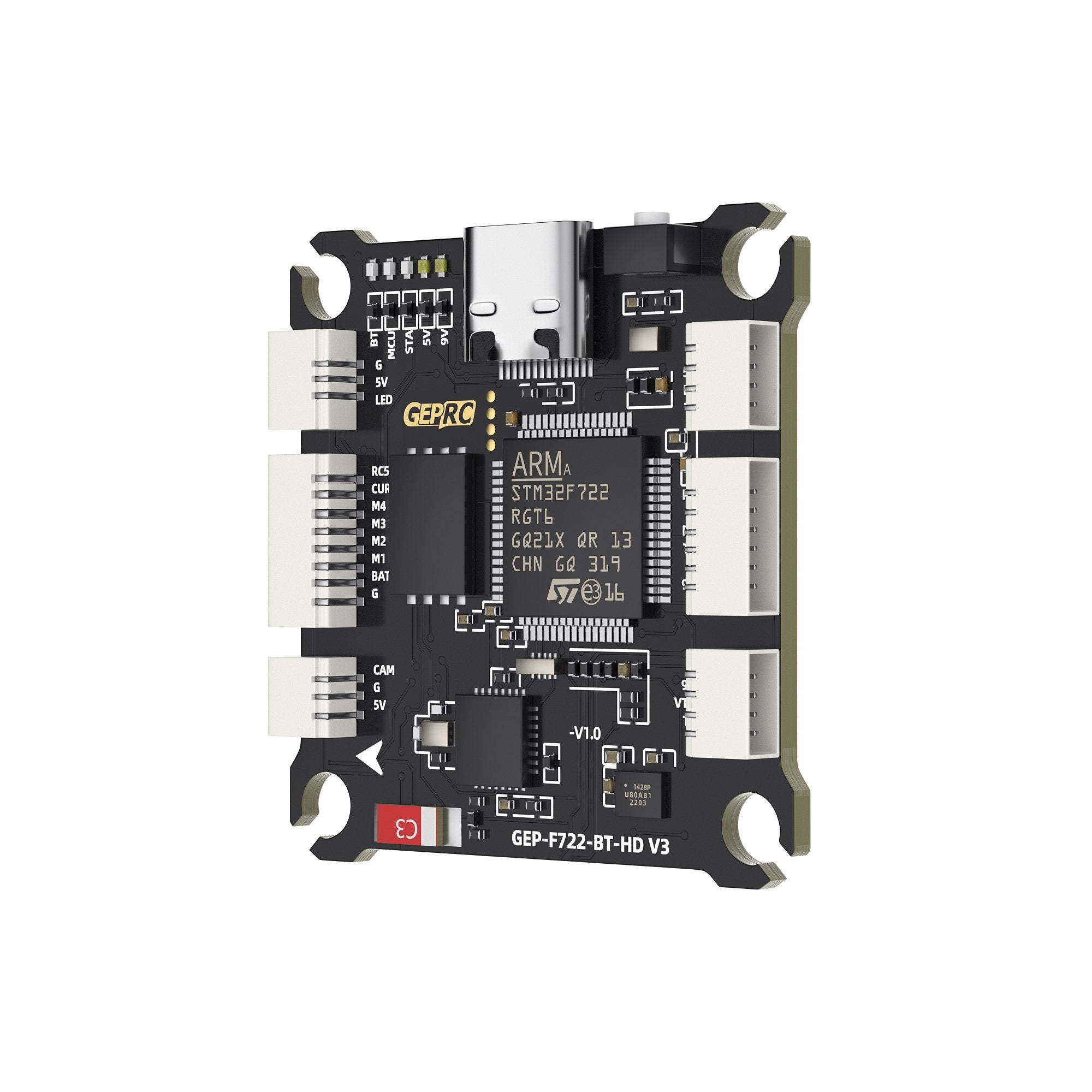

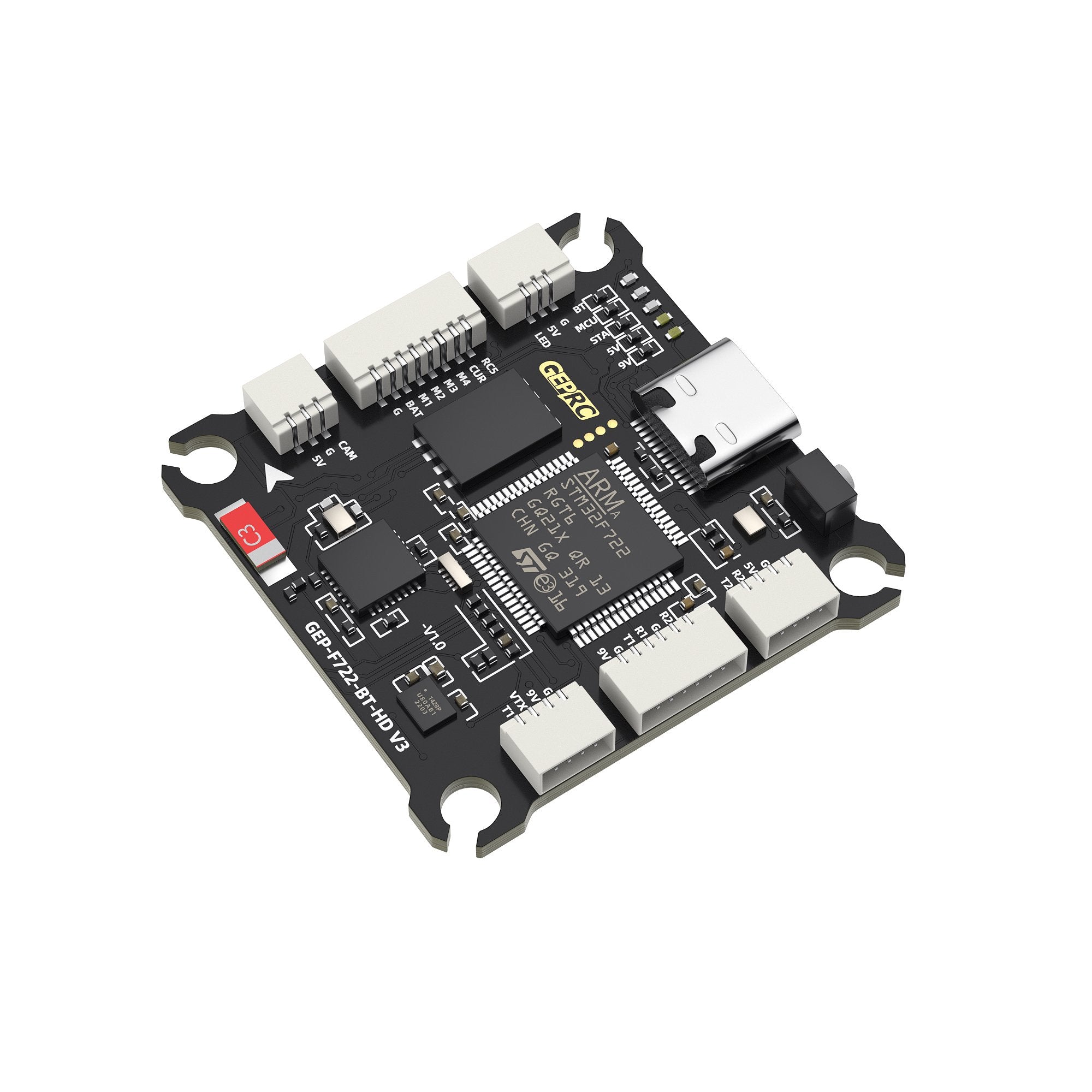

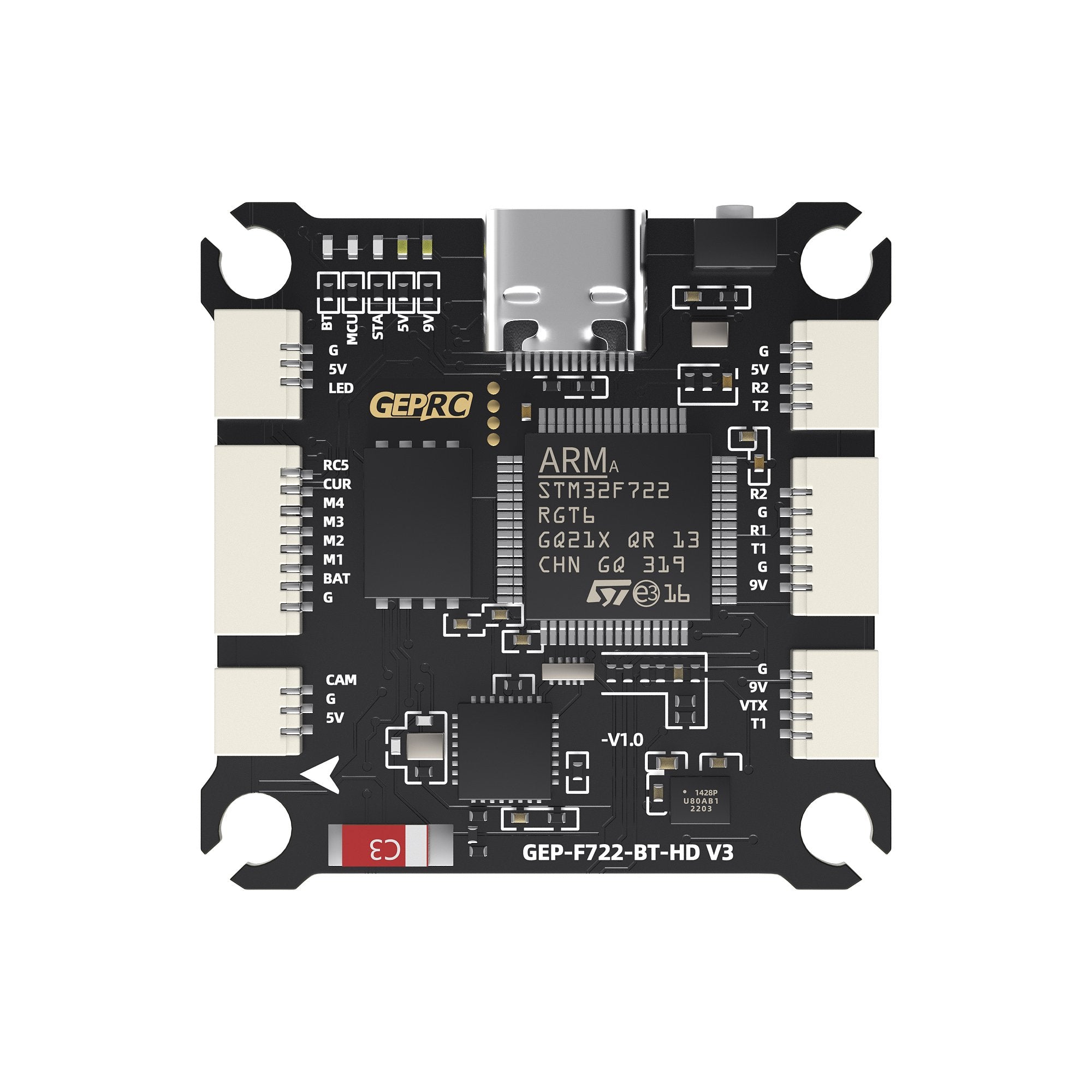

GEP-F722-BT-HD V3 Flight Controller｜飛行控制器

GEP-F722-BT-HD V3 Flight Controller｜飛行控制器

GEPRC 官方飛行控制器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Important Update Regarding Bluetooth Function

Feb 25, 2026:

Due to temporary hardware adjustments, the current batch of the Flight Controller does not support Bluetooth wireless parameter tuning. Please rest assured that all other technical specifications and flight performances remain unaffected. The resumption time for this feature will be announced separately. We apologize for any inconvenience!

Feature

Use mainstream STM32F722 chip

Equipped with the latest 42688-P gyroscope

512M black box storage

Support Bluetooth parameter tuning

Integrated LC filter

Upgrade type-C USB interface

Directly plugs into the DJI Air Unit

Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

Integrated Barometer

[email protected]

+ 5V@3A dual independent BEC

Specifications

MCU: STM32F722

IMU：ICM42688-P(SPI)

Air Unit Connection: Directly plugs into the DJI Air Unit

Black Box: 512M onboard

Bluetooth: Supported

Barometer: Supported

USB Interface: Type-C

OSD：BetaFlight OSD w/ AT7456E chip

BEC：5V@3A,

[email protected]

dual BEC

Firmware Target: GEPRCF722_BT_HD_V3

Size：36.9×36.9mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring

Input Voltage: 3-6S LiPo

UART: 5 groups (UART4 fixed for Bluetooth)

Power Filter: Integrated LC filter

Weight: 8.2g

Includes

1 x Flight Controller

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

4 x Nylon nuts

4 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
