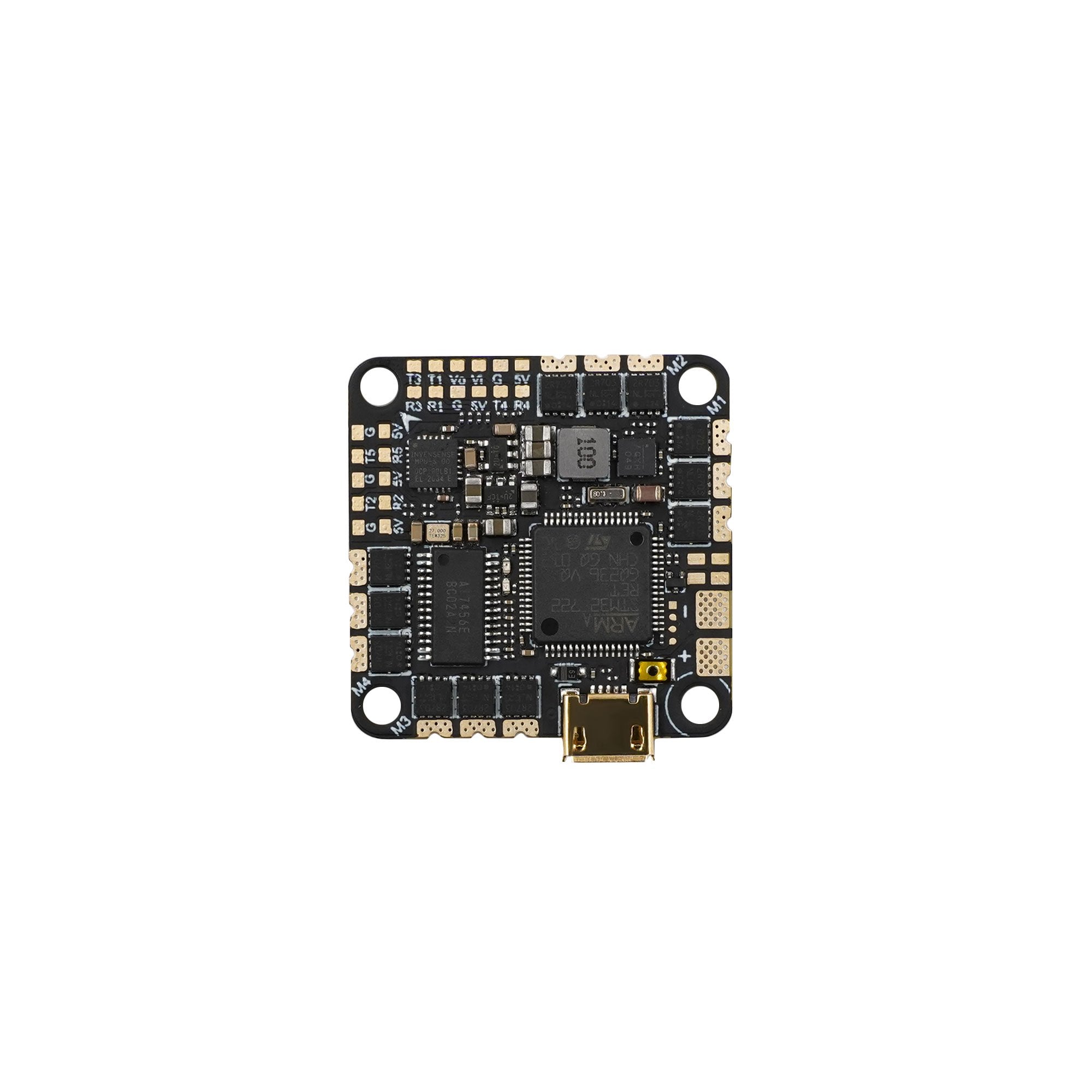

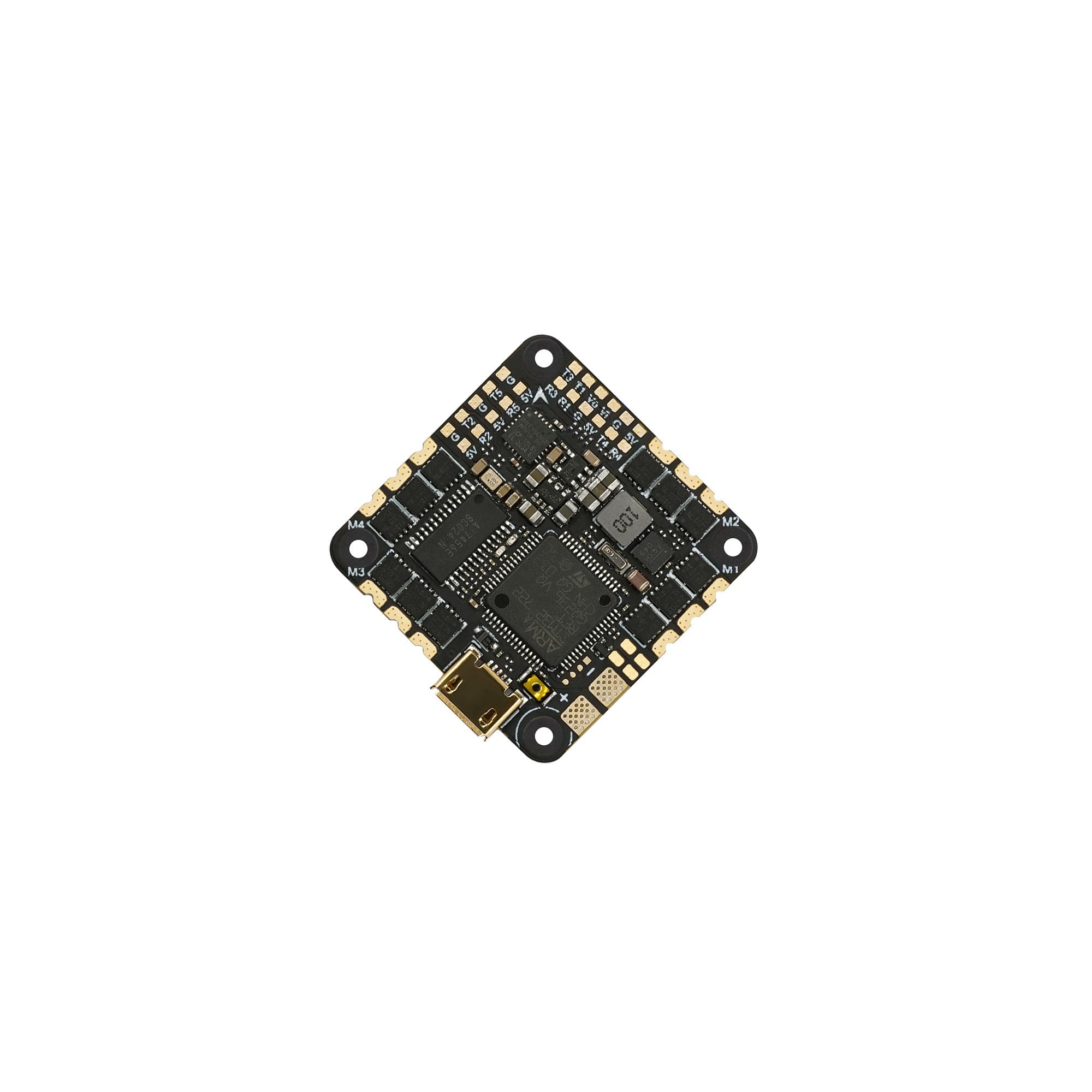

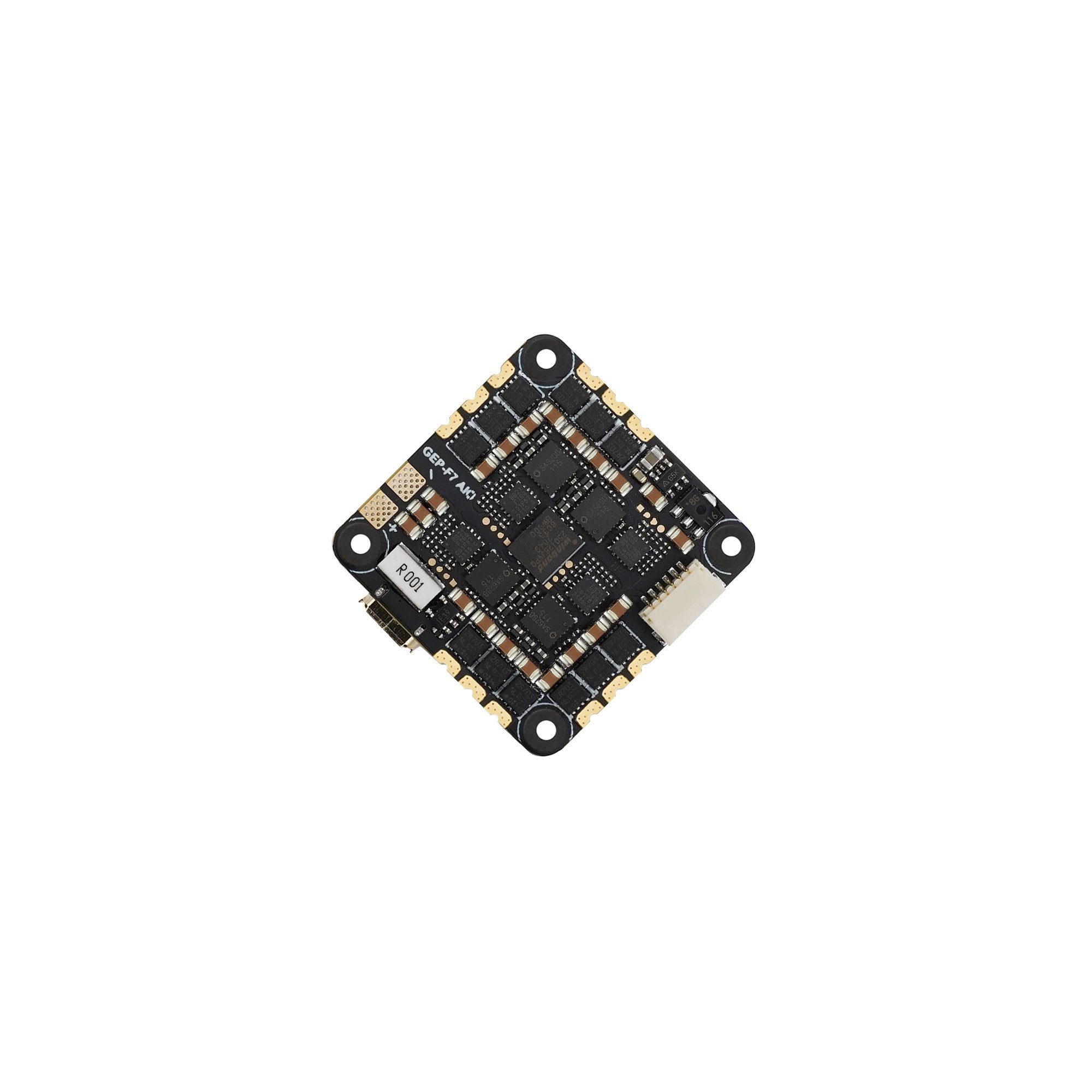

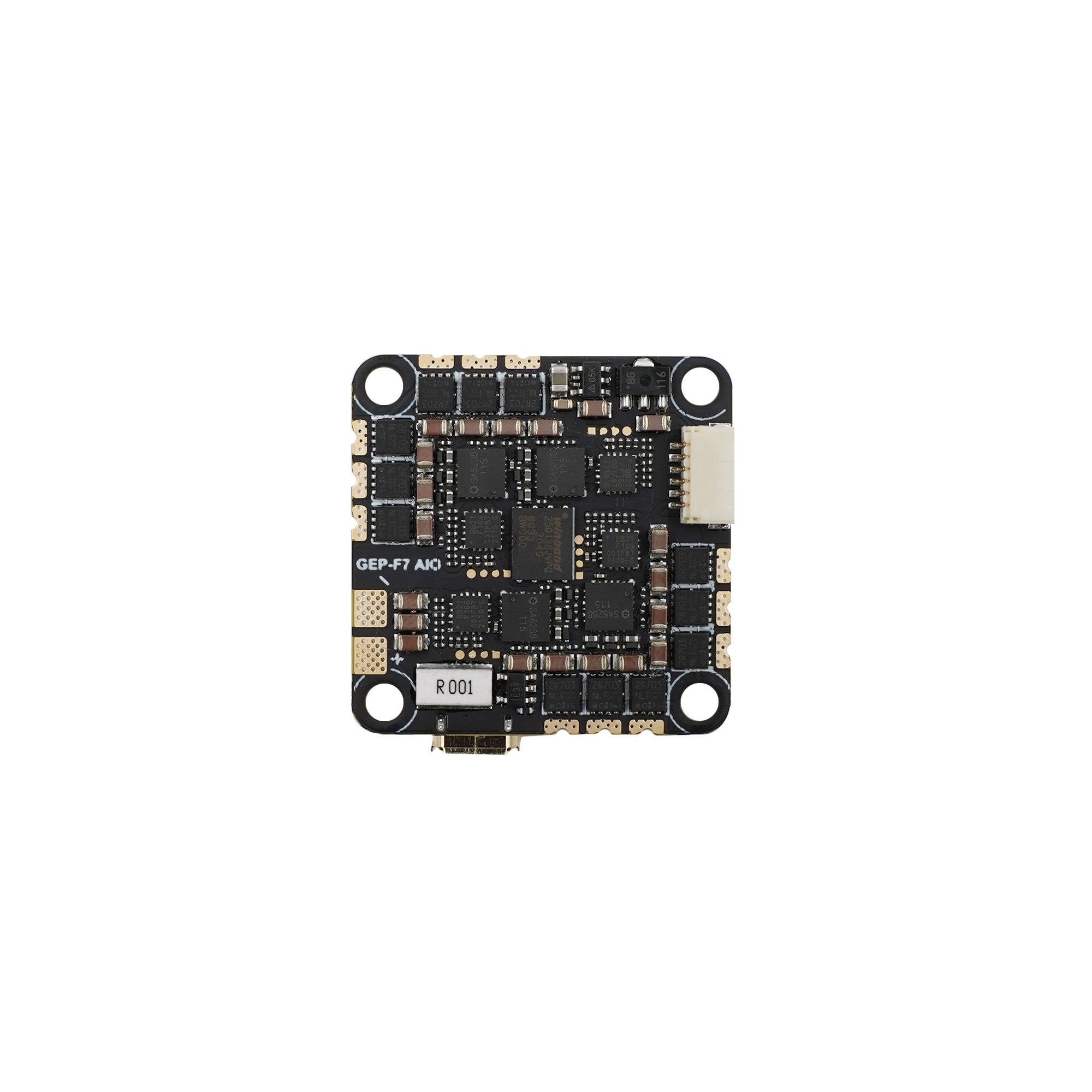

GEP-F722-35A AIO (F722 FC 35A 2-6S 8bits BLS ESC 25.5mm)｜一體式飛控

GEP-F722-35A AIO (F722 FC 35A 2-6S 8bits BLS ESC 25.5mm)｜一體式飛控

GEPRC 官方一體式飛控，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary：

I am gald to introduce a new member of GEPRC FC AIO,GEP-F7-35A,it is released now.

GEP-F7-35A adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

We designed a 6-pin connector for DJI AIR UNIT MODULE,just plug and play.

The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.Support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance of FC.

Changelog:

June 14th,2022: Gyro updated to BMI270/42688.

June 25th,2022:Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.

Specification：

Model Name:

GEP-F722-35A AIO

MCU:

STM32F722

IMU:

BMI270/42688 gyro/accelerometer(SPI)

Firmware target:

GEPRC_F722_AIO

OSD:

Betaflight OSD w/ AT7456Ev

UART Ports:

R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5

Beeper:

YES

LED:

YES

USB:

Micro USB

BEC output:

5V@1A

Intergrated LC Filter

ESC MCU:

8BB21F16G

Continuous current:

35A

MAX current:

40A (10s)

Input:

2~6S

Supports:

Dshot600,Oneshot,Multishot

BlackBox:

16Mb

Traget:

G_H_30

Size:

32x32mm Board

Mounting Hole:

25.5×25.5mm

Weight:

8.8g

Features:

MCU:STM32F722,with strong performance and higher computing speed.

It has 5 full UART ports, which connect more external devices

3Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .

The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.

Support OSD parameter adjustment, buzzer, led and other functions.

8.8g ultra light weight

25.5mm * 25.5mm mounting hole, suitable for most frames

Include:

1 x GEP-F7-35A AIO

1 x XT30-7CM-18AWG Power cables

1 x 35V220UF capacitance

1 x SH1.0-6Pin to GH1.25-8Pin cables

8 x M2*6.5mm Damping rings

Manual:

F722-35A AIO USER MANUAL.pdf
