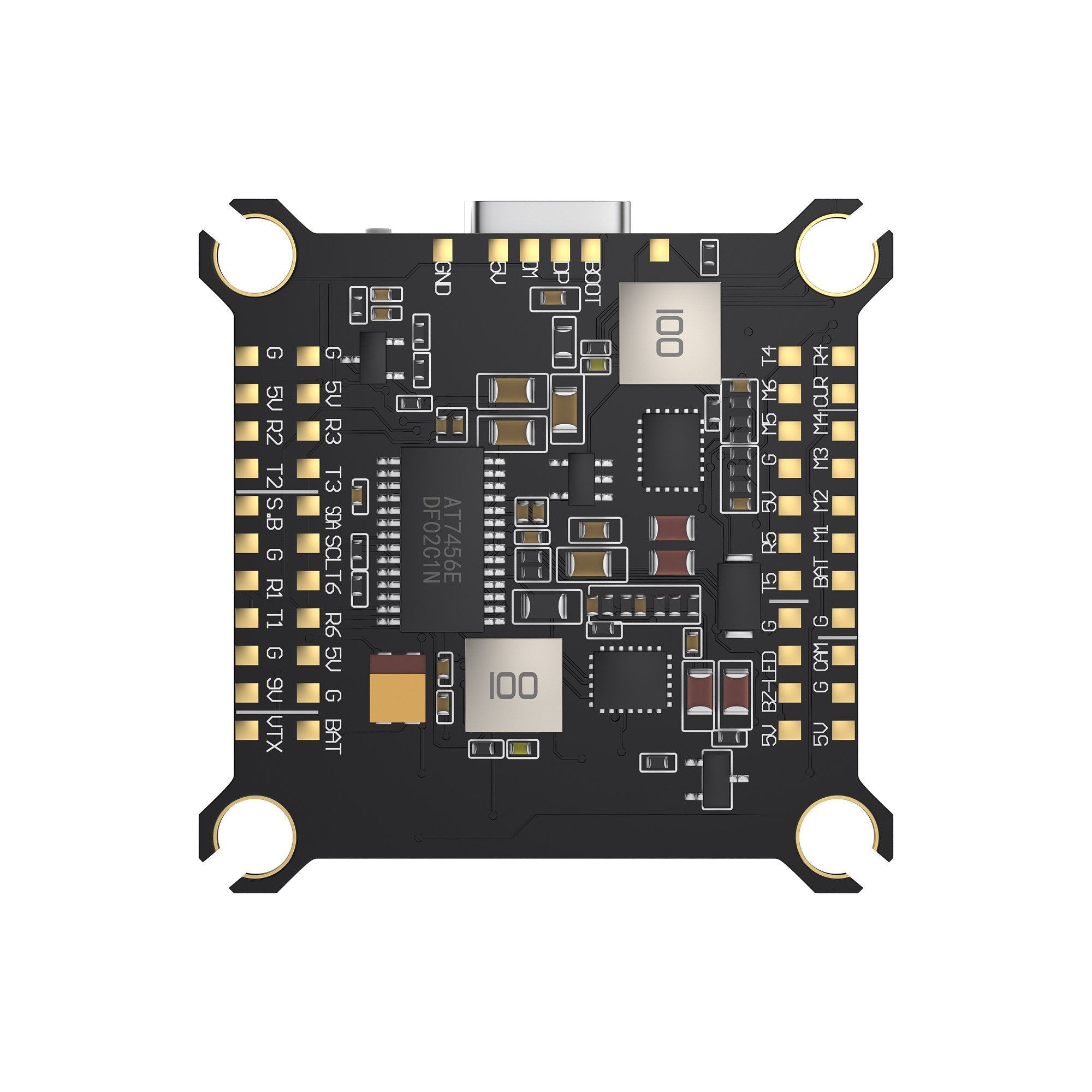

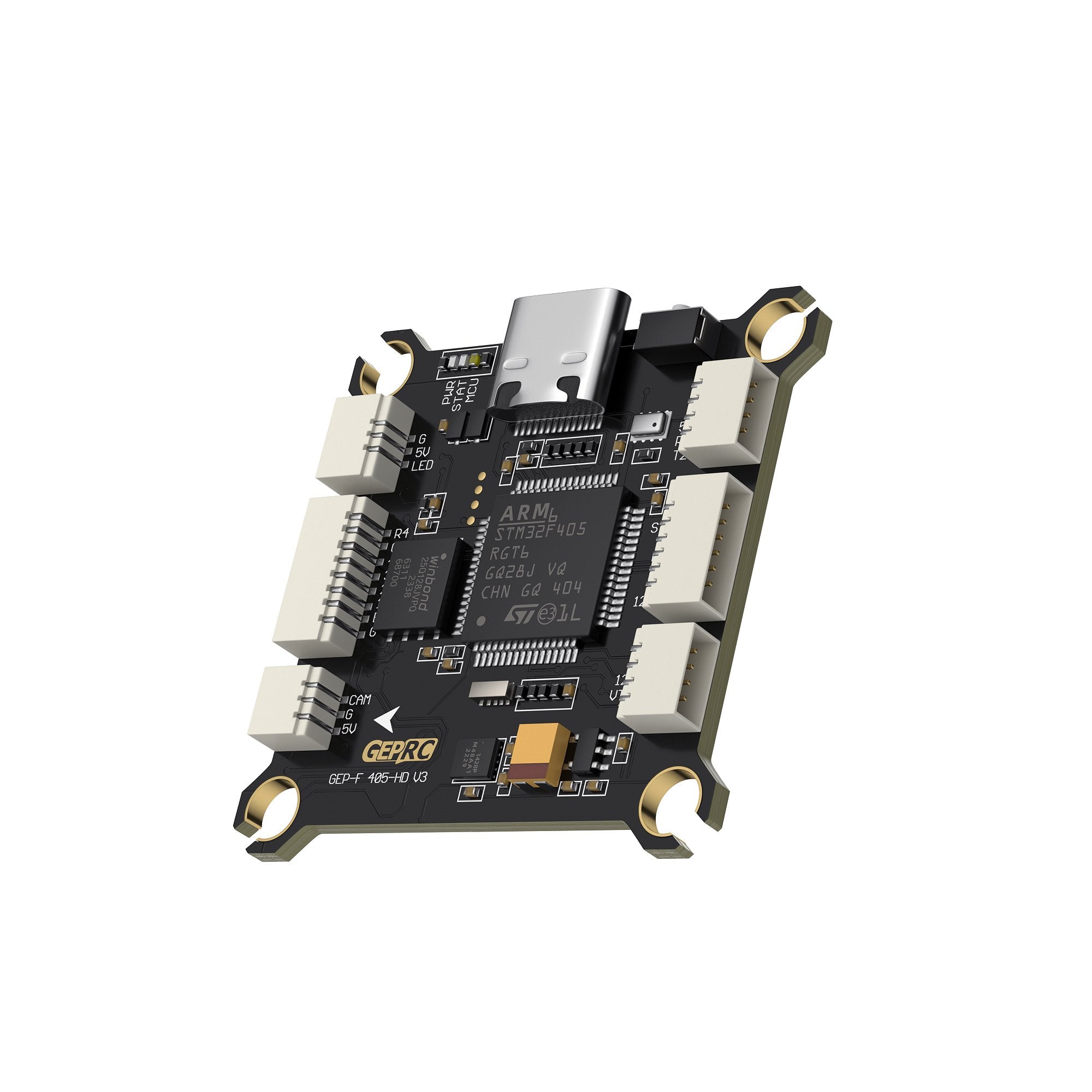

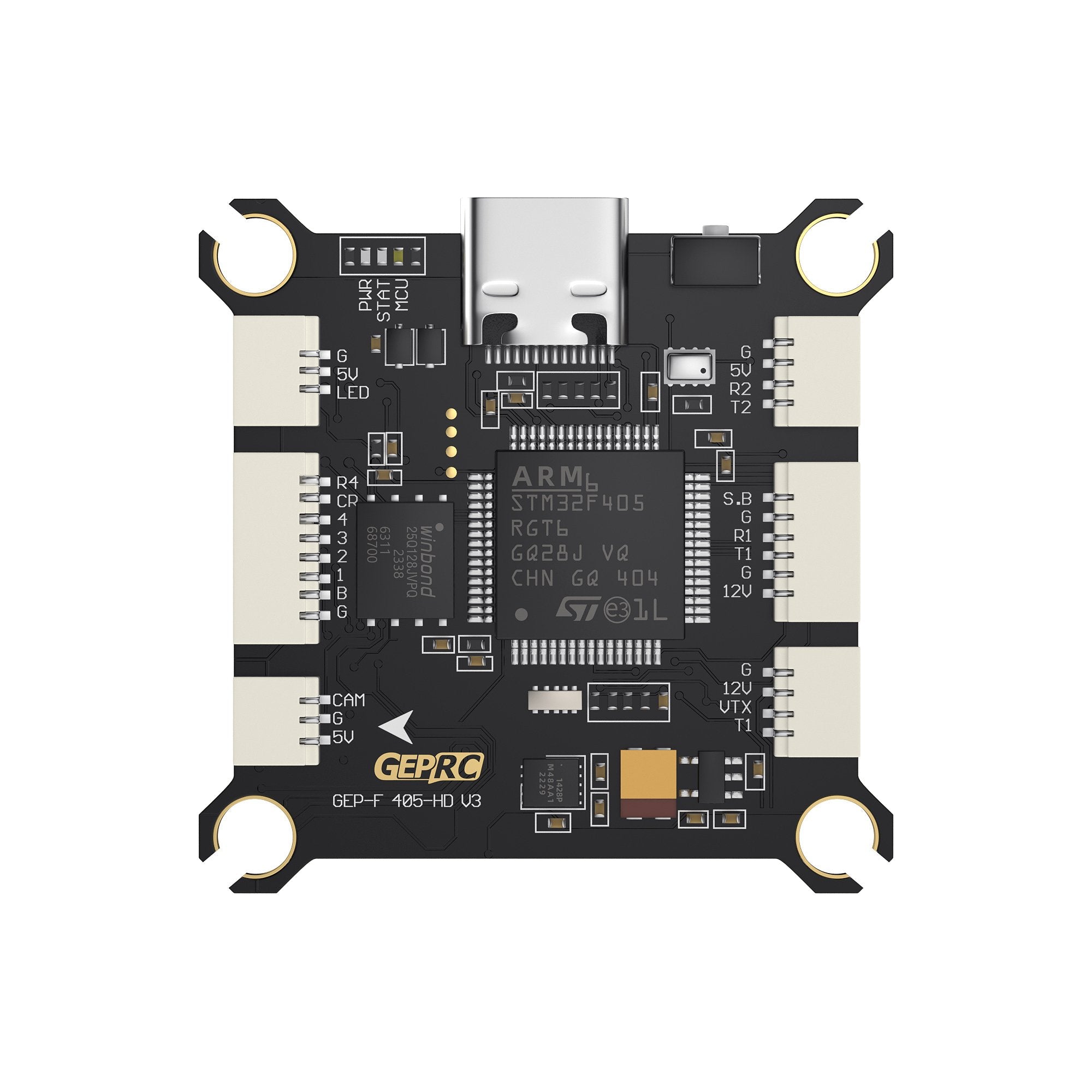

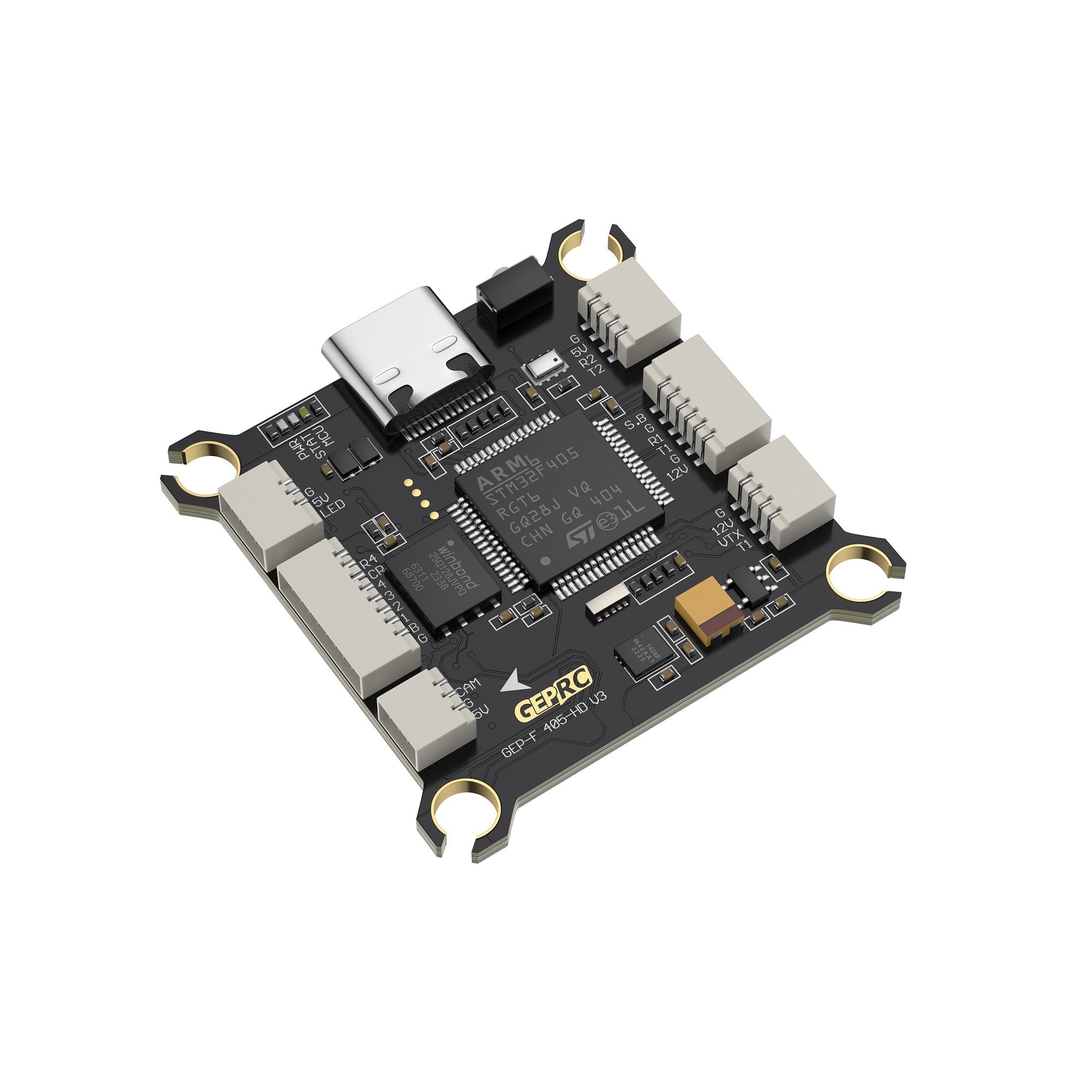

GEP-F405-HD V3 Flight Controller｜飛行控制器

GEP-F405-HD V3 Flight Controller｜飛行控制器

GEPRC 官方飛行控制器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Features

Use mainstream STM32F405 chip

Equipped with the latest 42688-P gyroscope

16M Blackbox storage

5V@

[email protected]

dual independent BEC

Integrated LC filter

Upgrade type-C USB interface

Directly plugged into the DJI Air Unit

Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably

Integrated barometer

Specifications

MCU: STM32F405

IMU: ICM42688-P(SPI)

Air Unit Connection: Direct plugging into DJI Air Unit

Black Box: 16M onboard

Barometer: Support

Motor outputs: M1-M6

USB Interface: Type-C

OSD: Betaflight OSD w/ AT7456E chip

BEC: 5V@3A,

[email protected]

dual BEC

Firmware Target: GEPRCF405

Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle

Input Voltage: 3-6S LiPo

UART: 6 UARTs

Power Filter: Integrated LC filter

Weight: 7.3g

Includes

1 x Flight Controller

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

4 x Nylon nuts

4 x Silicone grommets

2 x sh1.0 4-pin ribbon cable

1 x Camera connection cable
