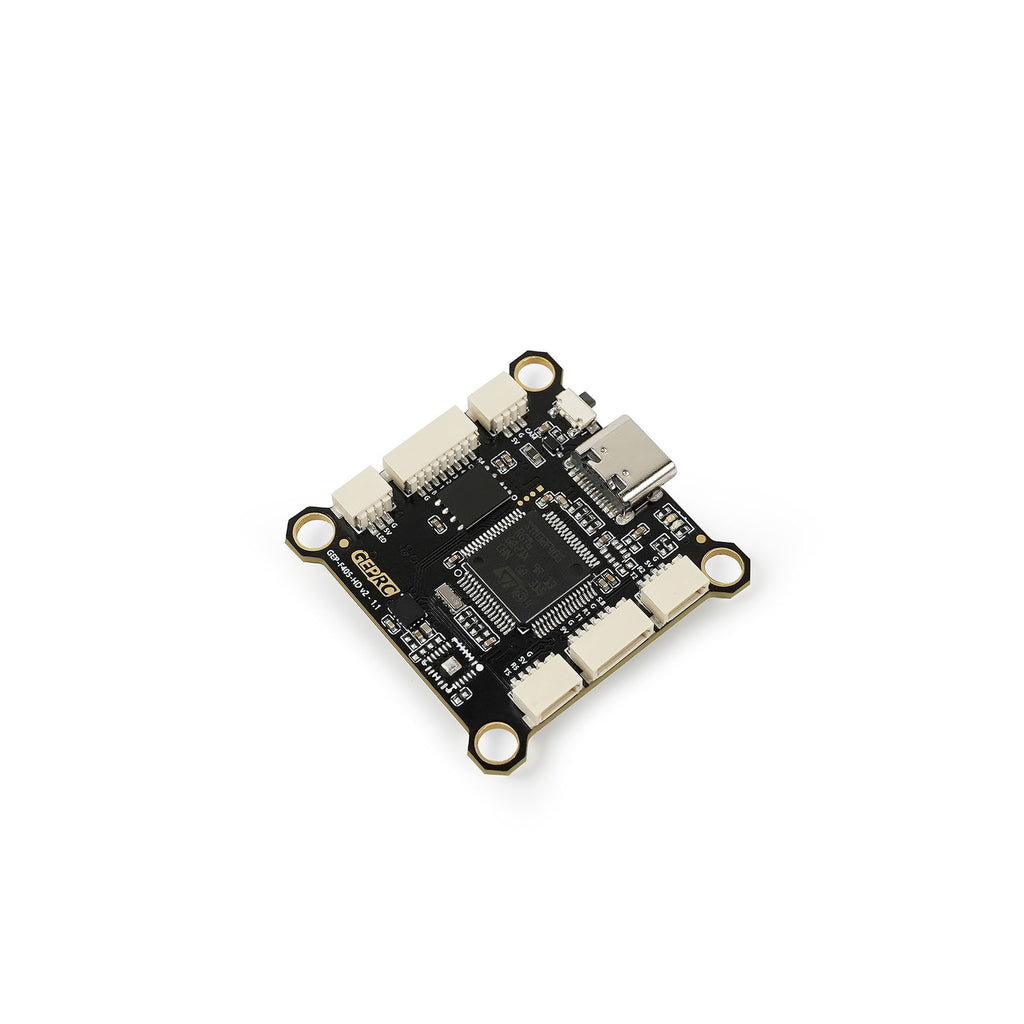

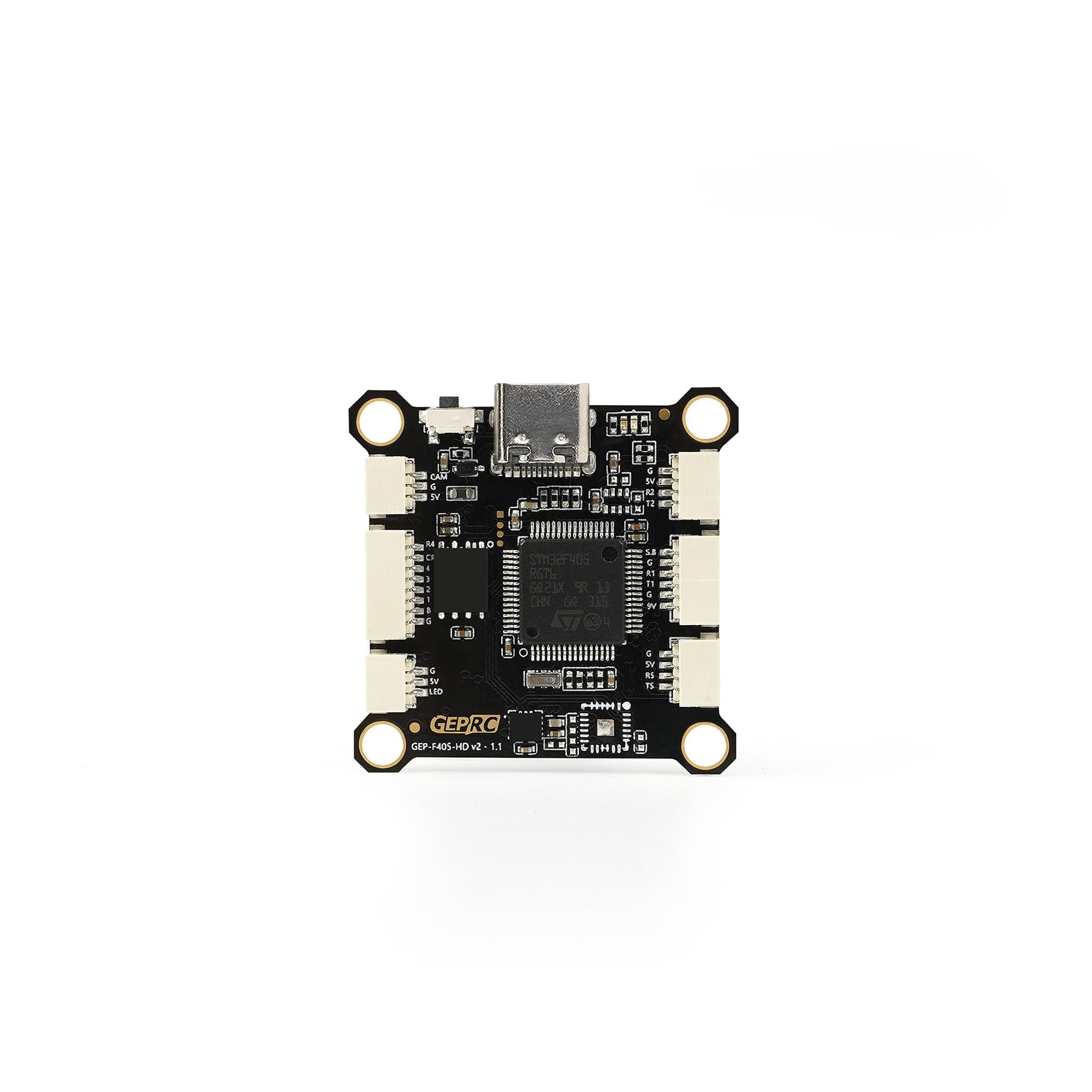

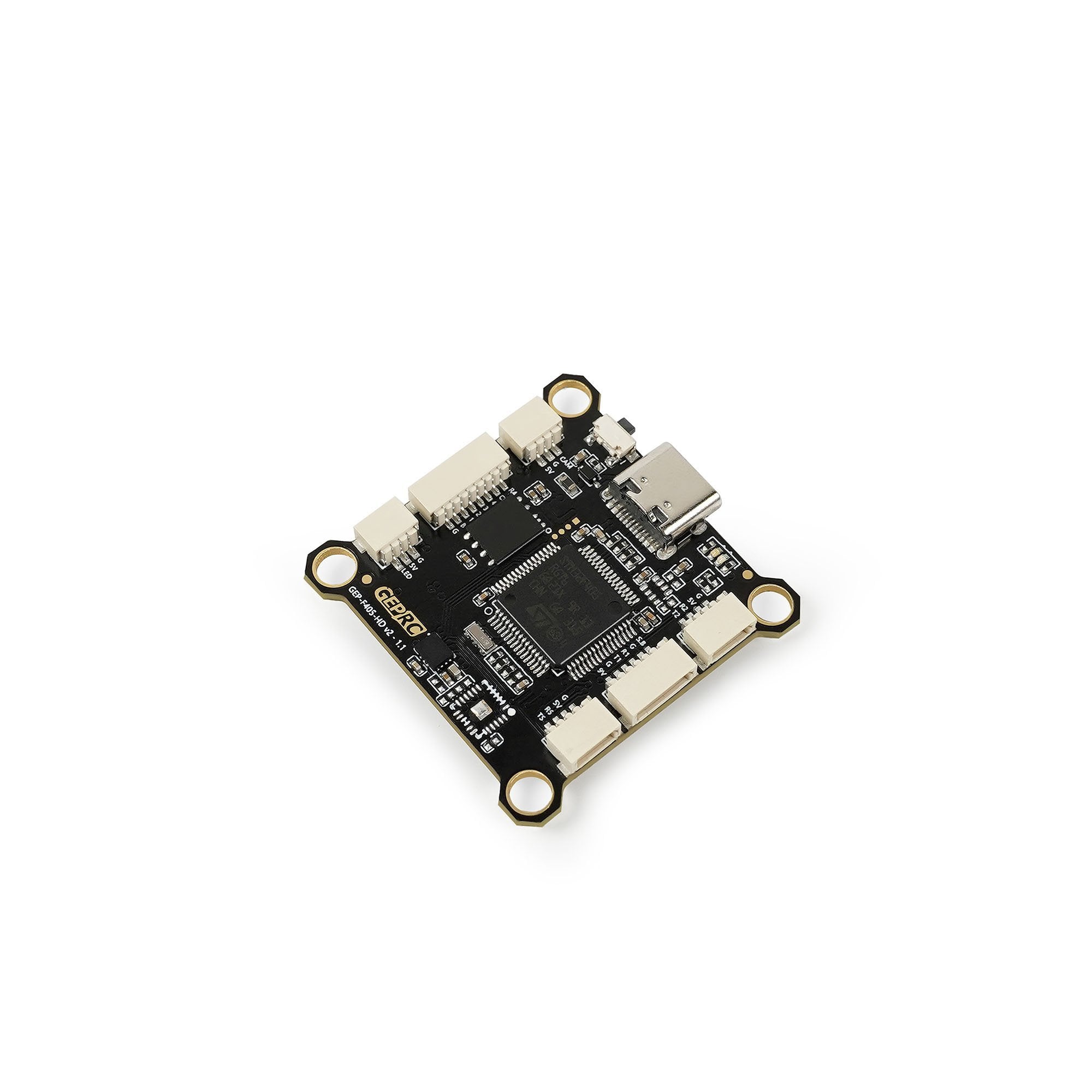

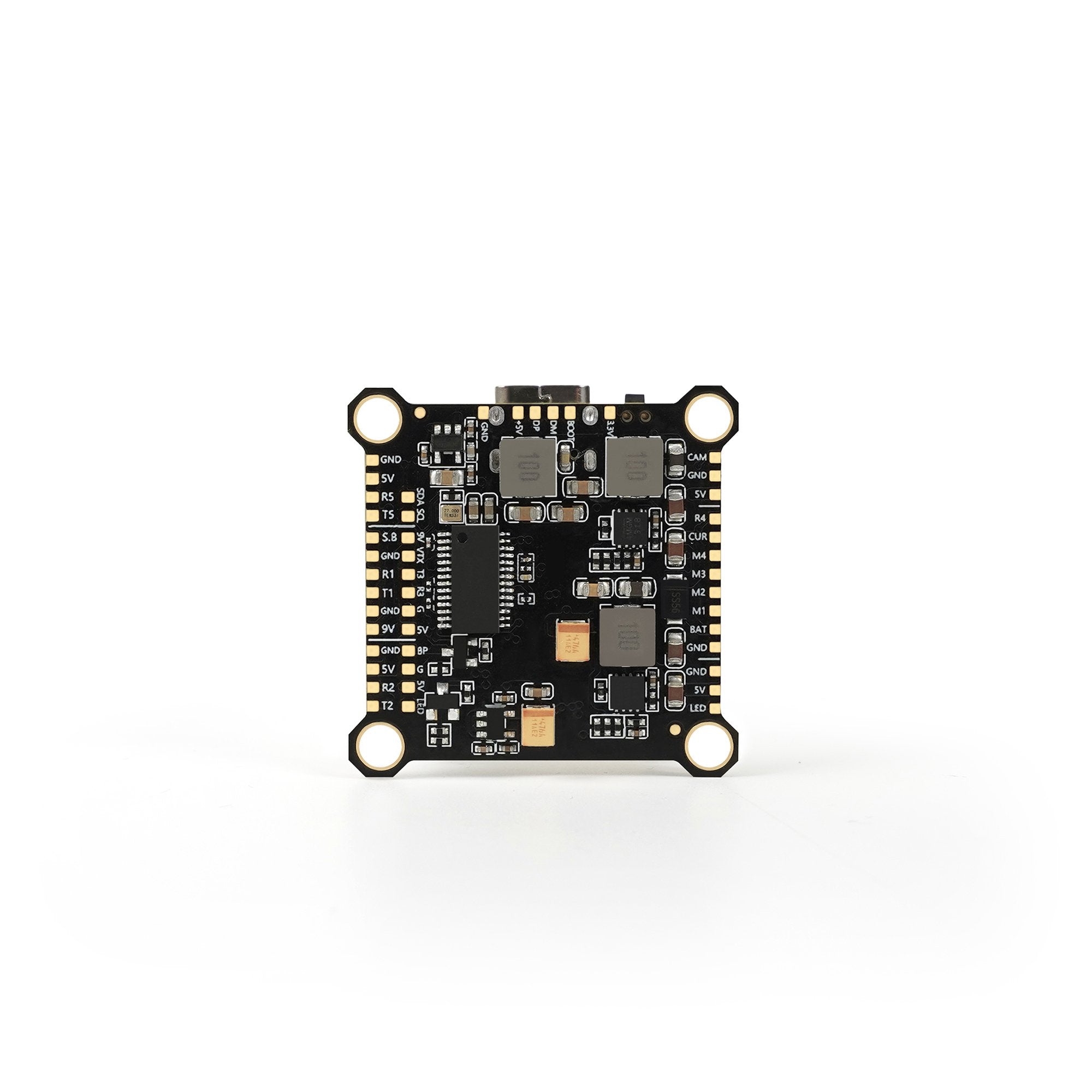

GEP-F405-HD V2 Flight Controller｜飛行控制器

GEP-F405-HD V2 Flight Controller｜飛行控制器

GEPRC 官方飛行控制器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Features

Use mainstream STM32F405 chip

Equipped with the latest 42688-P gyroscope

16M black box storage

Integrated LC filter

Upgrade type-C USB interface

Directly plugged into the DJI Air Unit

Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably

9V 2.5A + 5V 3A dual independent BEC

Specifications

MCU：STM32F405

IMU：ICM42688-P(SPI)

Air Unit Connection：Direct plugging into DJI Air Unit

Black Box：16M onboard

USB Interface：Type-C

OSD：BetaFlight OSD w/ AT7456E chip

BEC：5V@3A,

[email protected]

dual BEC

Firmware Target：GEPRCF405

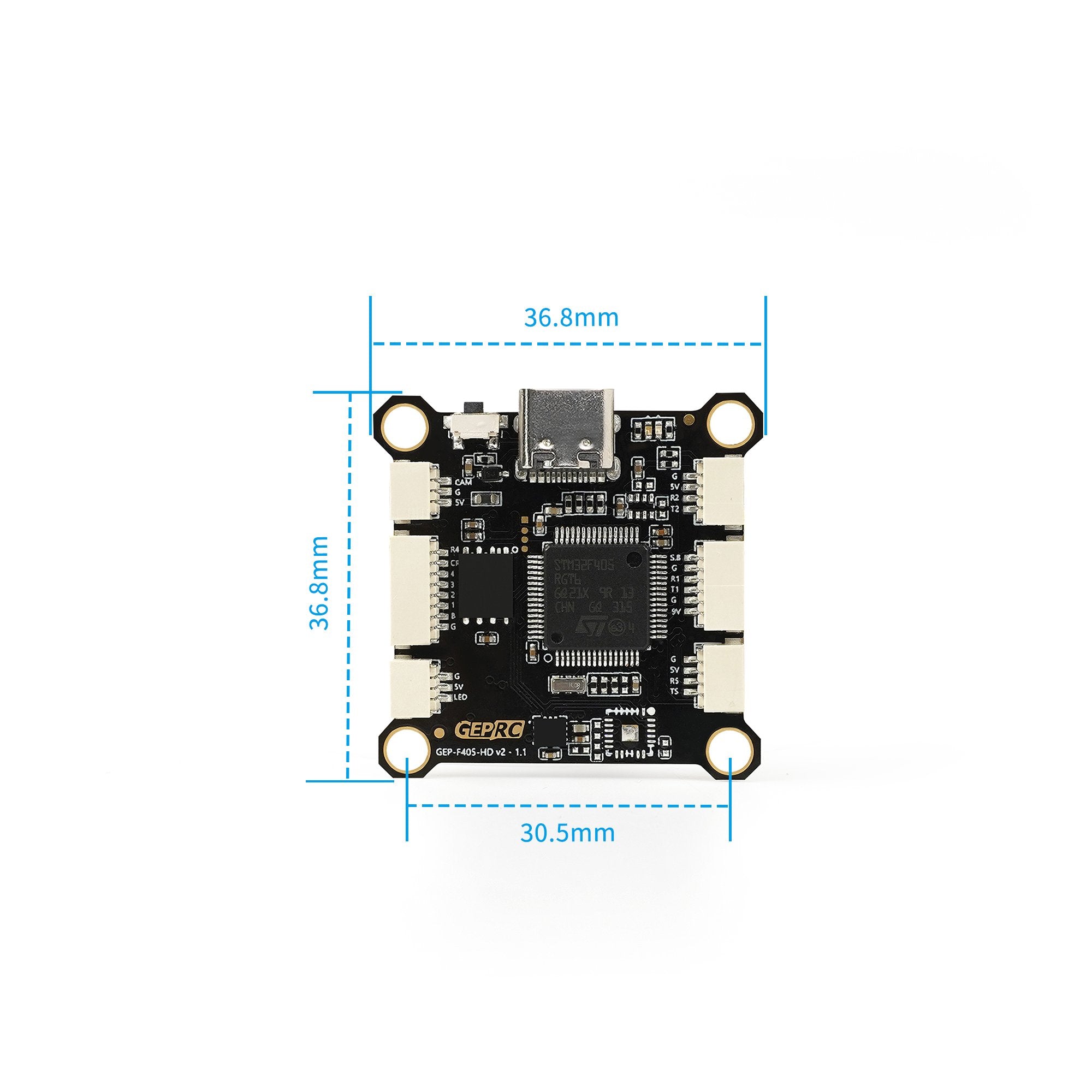

Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.

Input Voltage：3-6S LiPo

UART：6

Power Filter：Integrated LC filter

Weight：7.7g

Includes

1 x Flight Controller

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

4 x Nylon nuts

4 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
