GEP-DS22 Frame｜FPV 機架

GEP-DS22 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

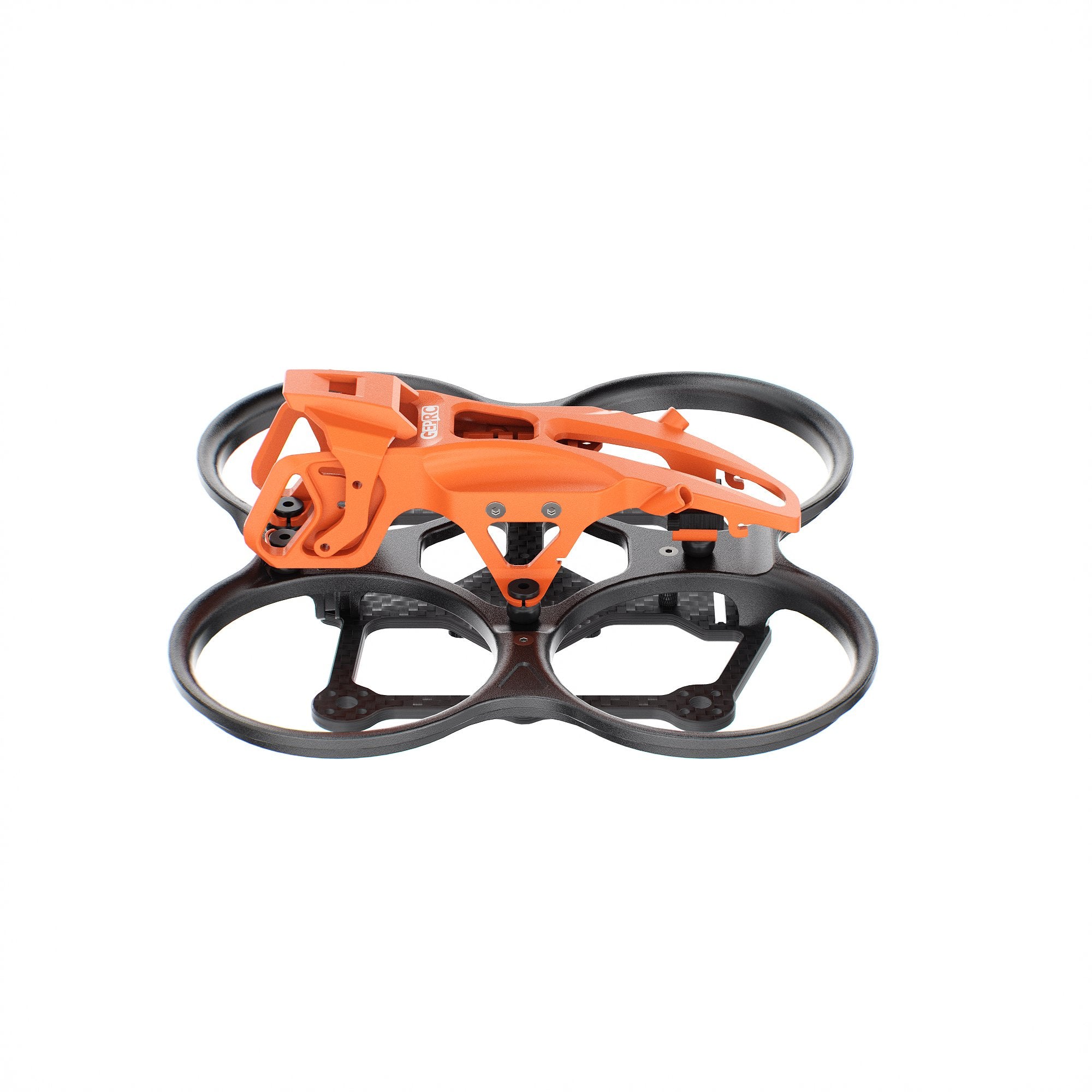

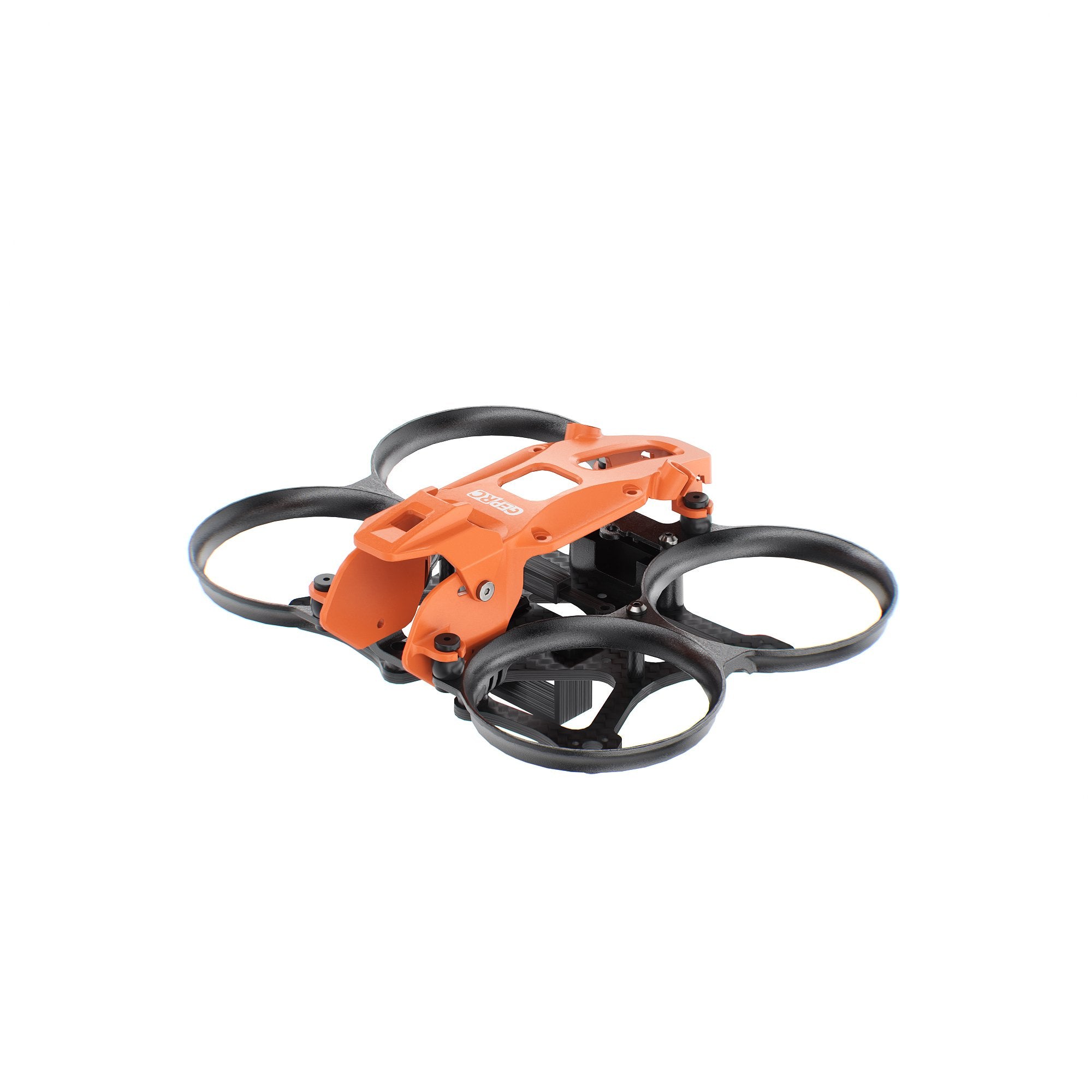

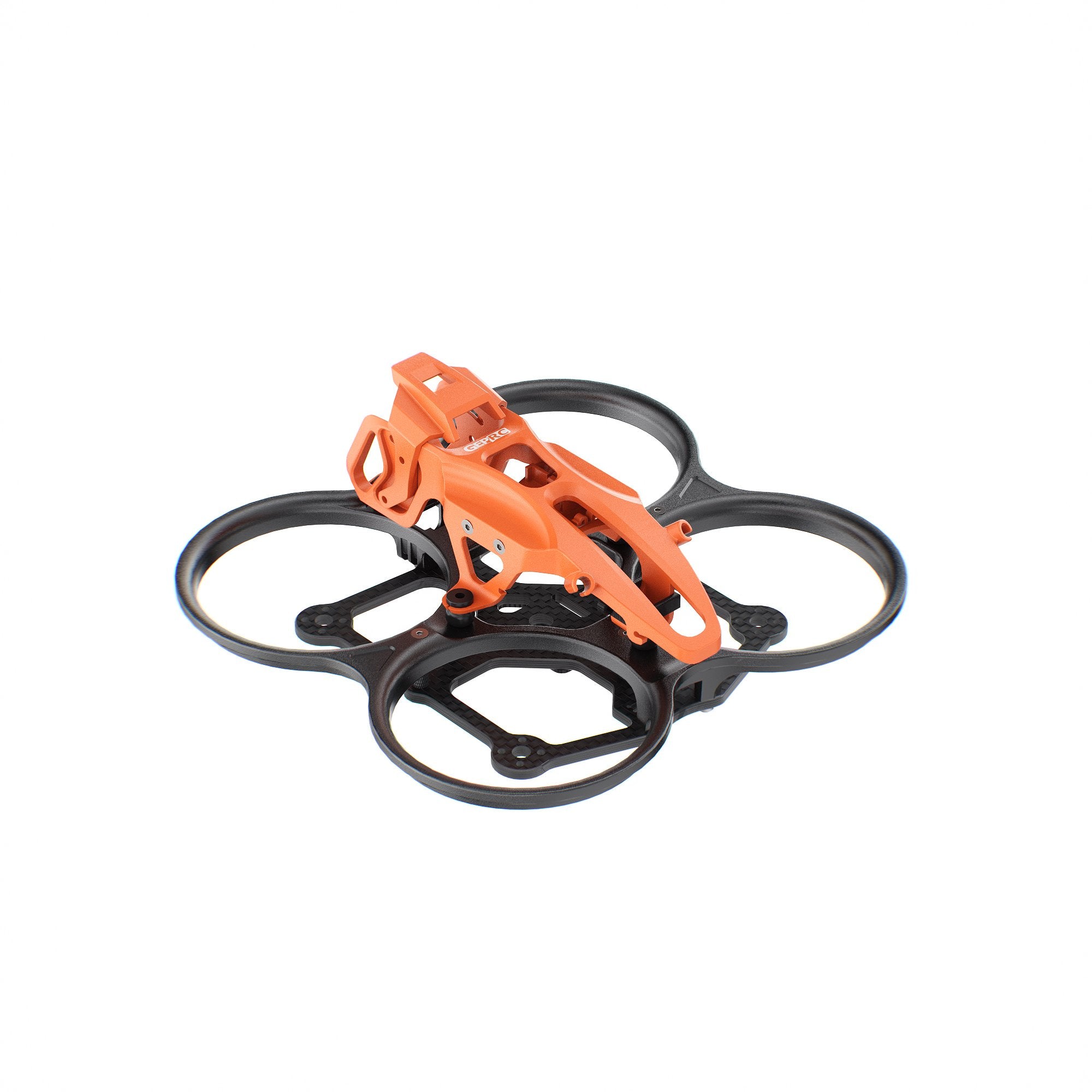

The GEP-DS22 is a 2.2-inch FPV frame designed specifically for both indoor and outdoor cinematic flying.

Guided by the philosophy of Safety Meets Performance, it seamlessly combines comprehensive protection, strong power, and enduring flight performance within a compact body.

Crafted from high-toughness composite materials with an optimized mechanical structure, it builds a durable prop guard and frame body that effectively absorbs collision impacts.

Meanwhile, the GEP-DS22 offers customizable color options, allowing every pilot to assemble a unique, personalized drone that reflects both technical skill and distinct taste.

Features

The enhanced nylon composite material provides superior structural strength and crash resistance.

The five-point floating damping system is a first-ever design that greatly improves vibration damping.

The multi-color components allow you to mix and match different parts to build your own signature drone.

The pre-reserved Nano GPS mounting holes enable safer flights with added GPS capability.

The dedicated canopy for the O4 Pro camera offers reliable protection for every shot.

The quick-release top plate and prop guard make maintenance simple and efficient.

Specification

Model: GEP-DS22 Frame

Prop Guard Color: Black

Camera Cover Color: Orange / Gray

Canopy Color: Orange / Gray

Frame Size: 2.2 inch

Wheelbase: 100 mm

Main Carbon Plate Thickness: 2.0 mm

FC Mounting: 25.5 mm x 25.5 mm

VTX Mounting: 25.5 mm x 25.5 mm

Motor Mounting: 9 mm x 9 mm

Camera Mount Width: 20 mm

Power Connector: XT30U-M

Propeller Size: 2.2 inch

Frame Weight: 50.4 ± 5 g

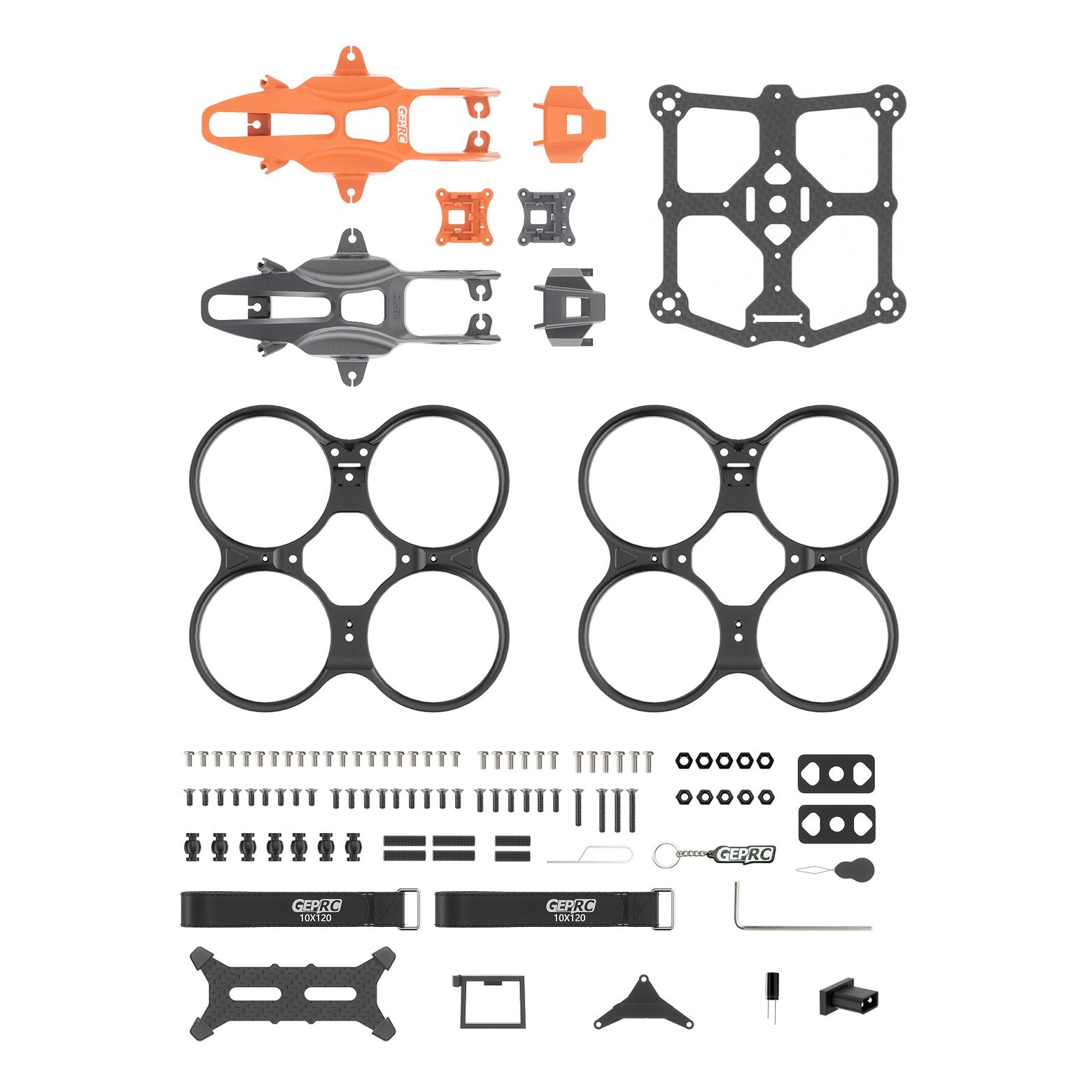

Includes

2 × Propeller Guards (Black)

1 × Main Carbon Plate

2 × Canopies (Orange / Gray)

2 × Camera Protective Cover (Orange / Gray)

1 × Screw Pack

1 × 1.5 mm L-Shaped Hex Wrench

2 × Battery Straps

1 × Battery Pad
