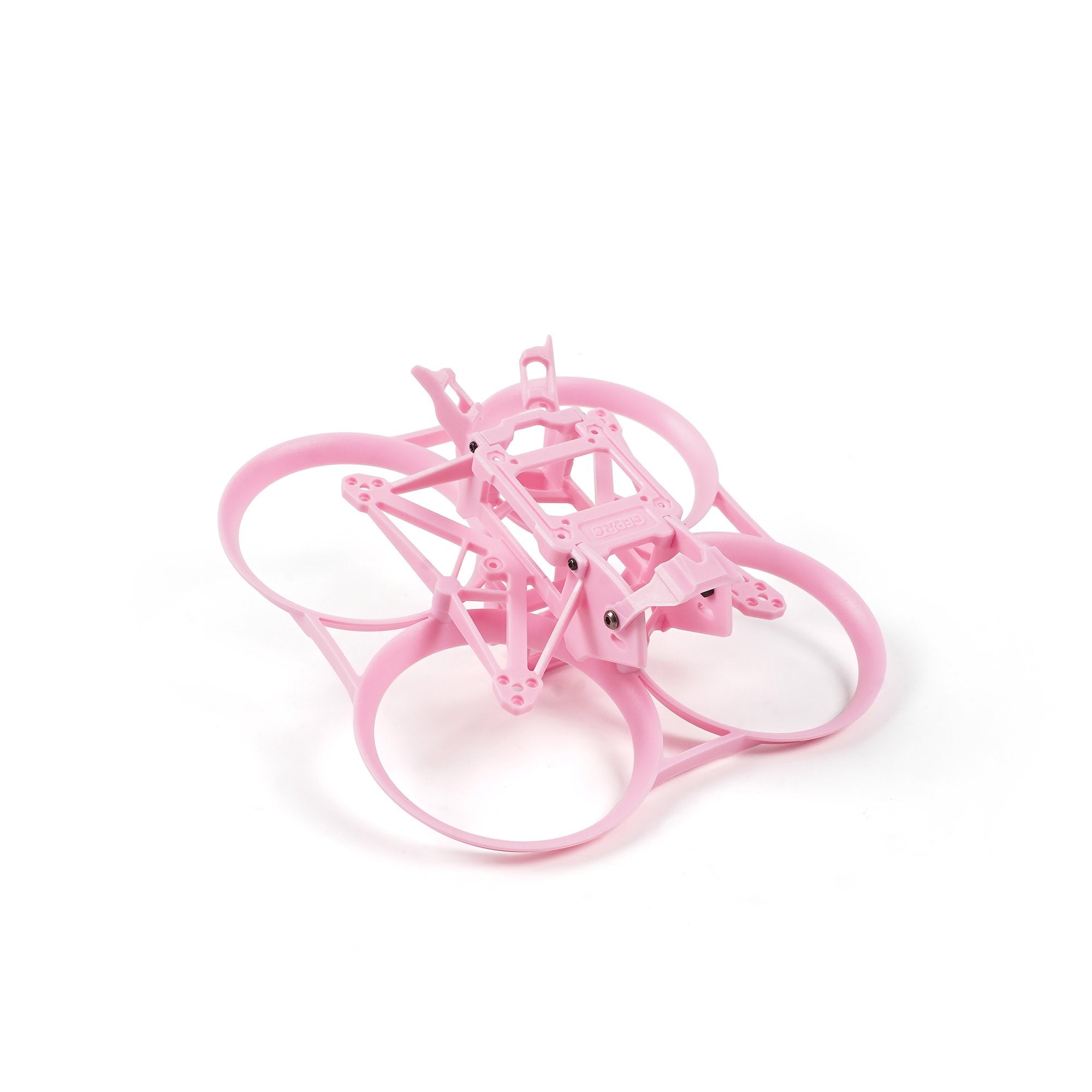

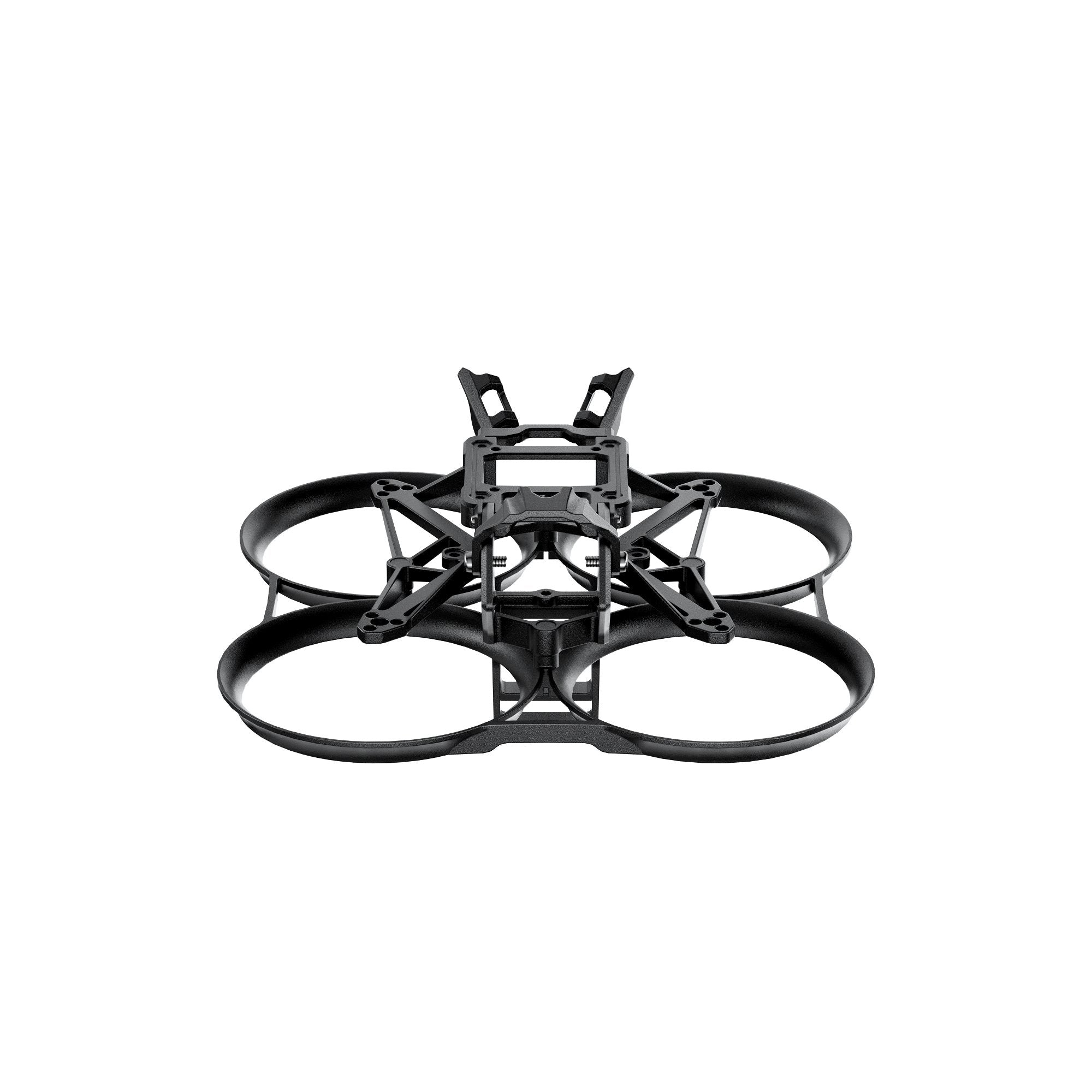

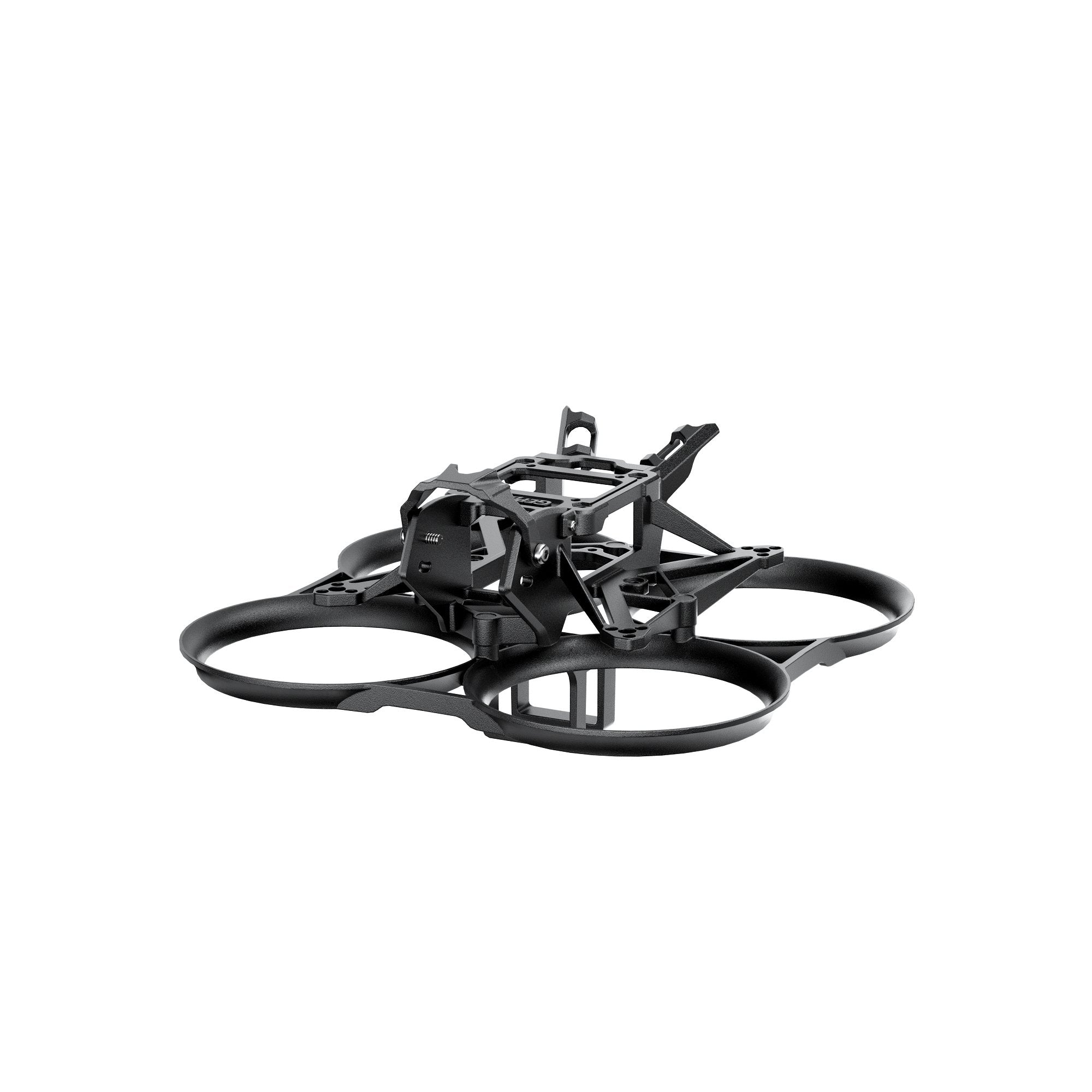

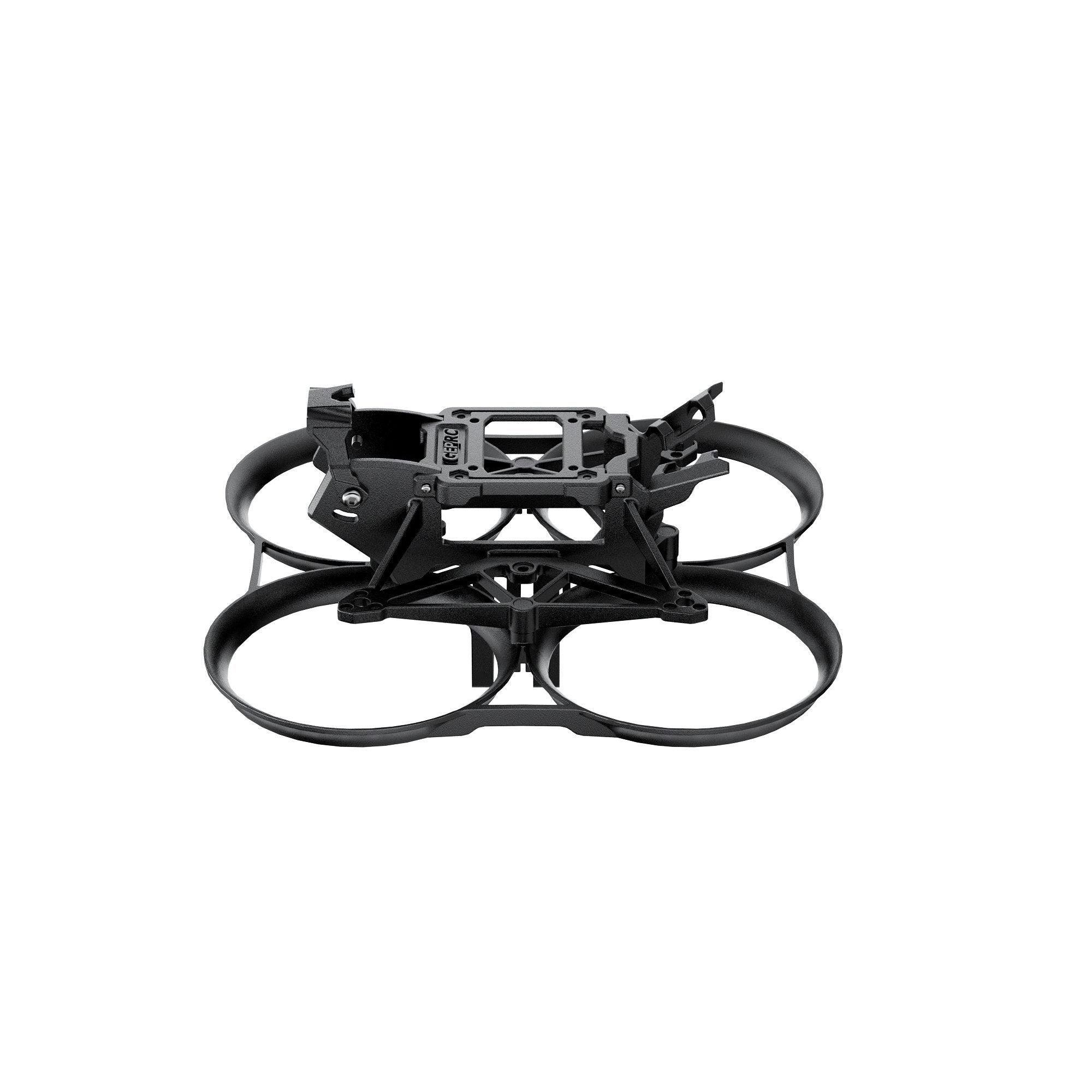

GEP-DS20 Frame｜FPV 機架

$187.00

規格 color: White color: Pink color: Gray color: Black color: Blue

付款方式全額付款訂金預購

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

GEP-DS20 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

GEP-DS20 is a 2-inch lightweight frame compatible with O3 Air Unit, Link and analog video transmission. It is injection molded using high-quality materials with both toughness and strength. The GEP-DS20 is available in five colors, white ,pink, gray, black and blue.The GEP-DS20 arm axis is combined with a multi-directional triangular support frame to ensure good frame rigidity. Frame-type battery compartment makes it easier to disassemble and install batteries. The frame wheelbase is 90mm and is suitable for 1003/1102 motors with a three-hole base.

Feature

New design concept, lightweight fully injection molded body and multi-directional triangular support frame to ensure strength.

Modular structure, easy to assemble.

Five colors available: white, pink, gray, black, and blue.

Adapted to O3 AIR Unit, Link, and analog image transmission.

Compatible with 1003 and 1102 motors.

The antenna fixed shield is carefully designed to be both practical and beautiful.

Frame-type battery compartment makes it easier to disassemble and install batteries.

Specification

Model:GEP-DS20 Frame

Dimension:126mm*126mm*57mm

Wheelbase:90mm
