GEP-CL35 V3 Frame｜FPV 機架

GEP-CL35 V3 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

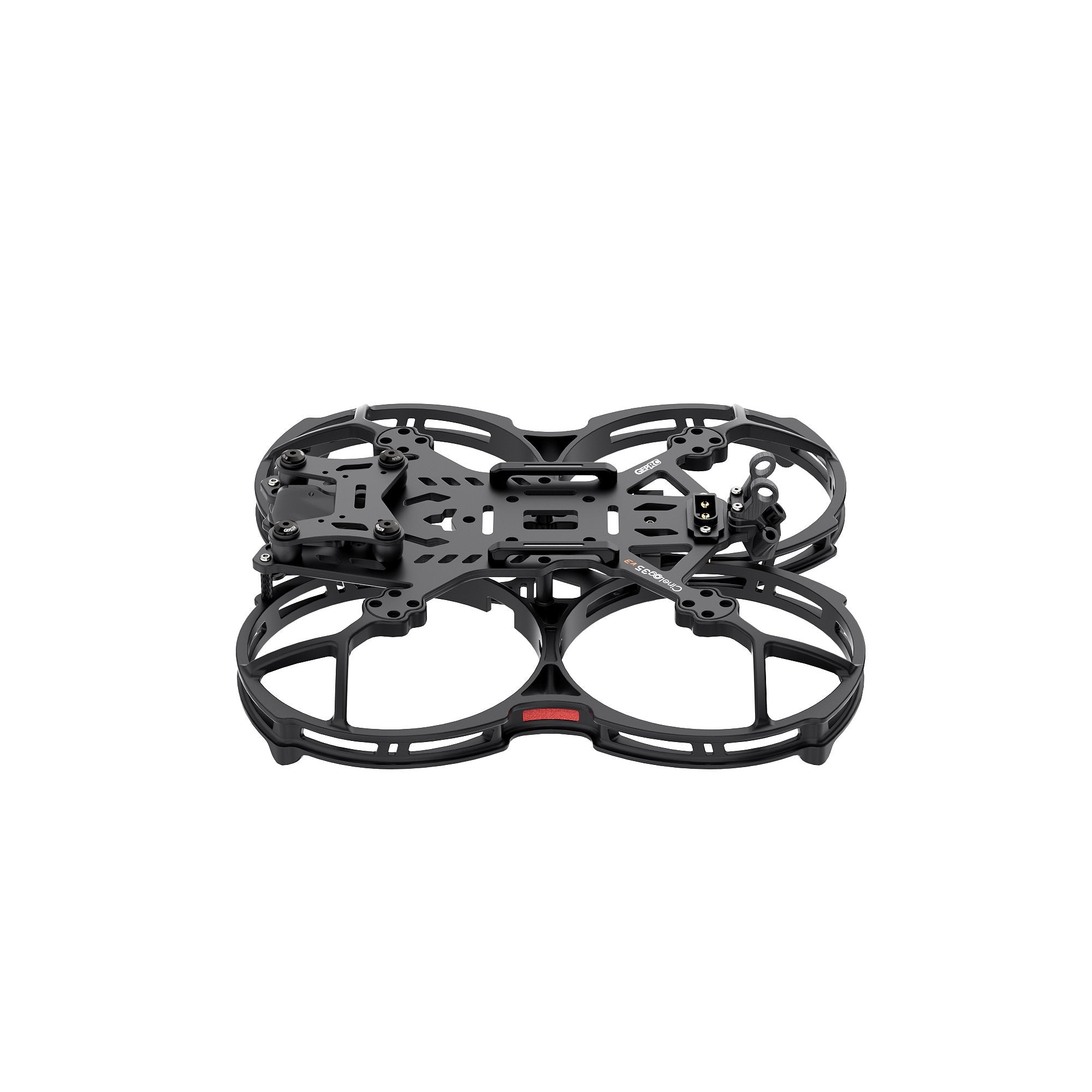

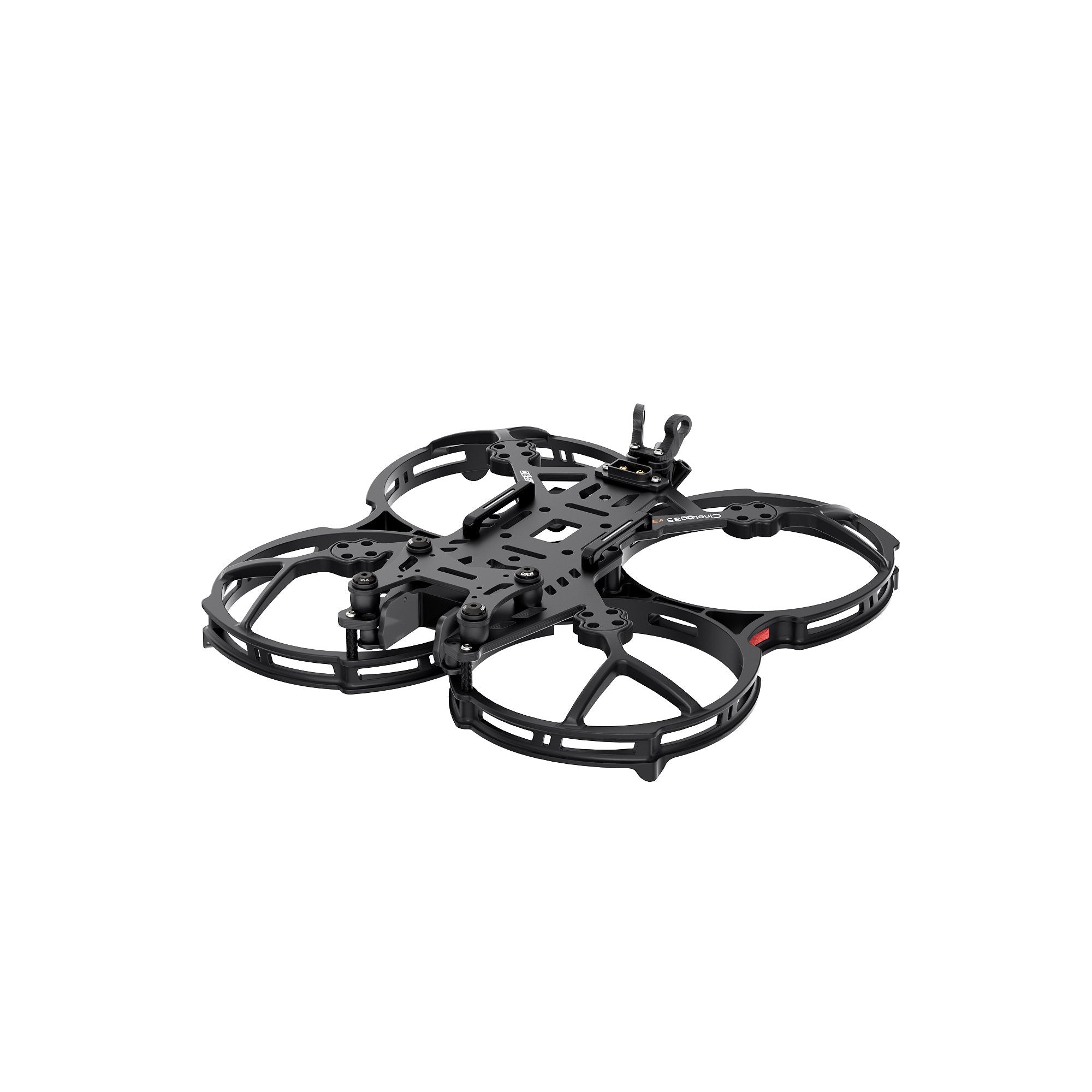

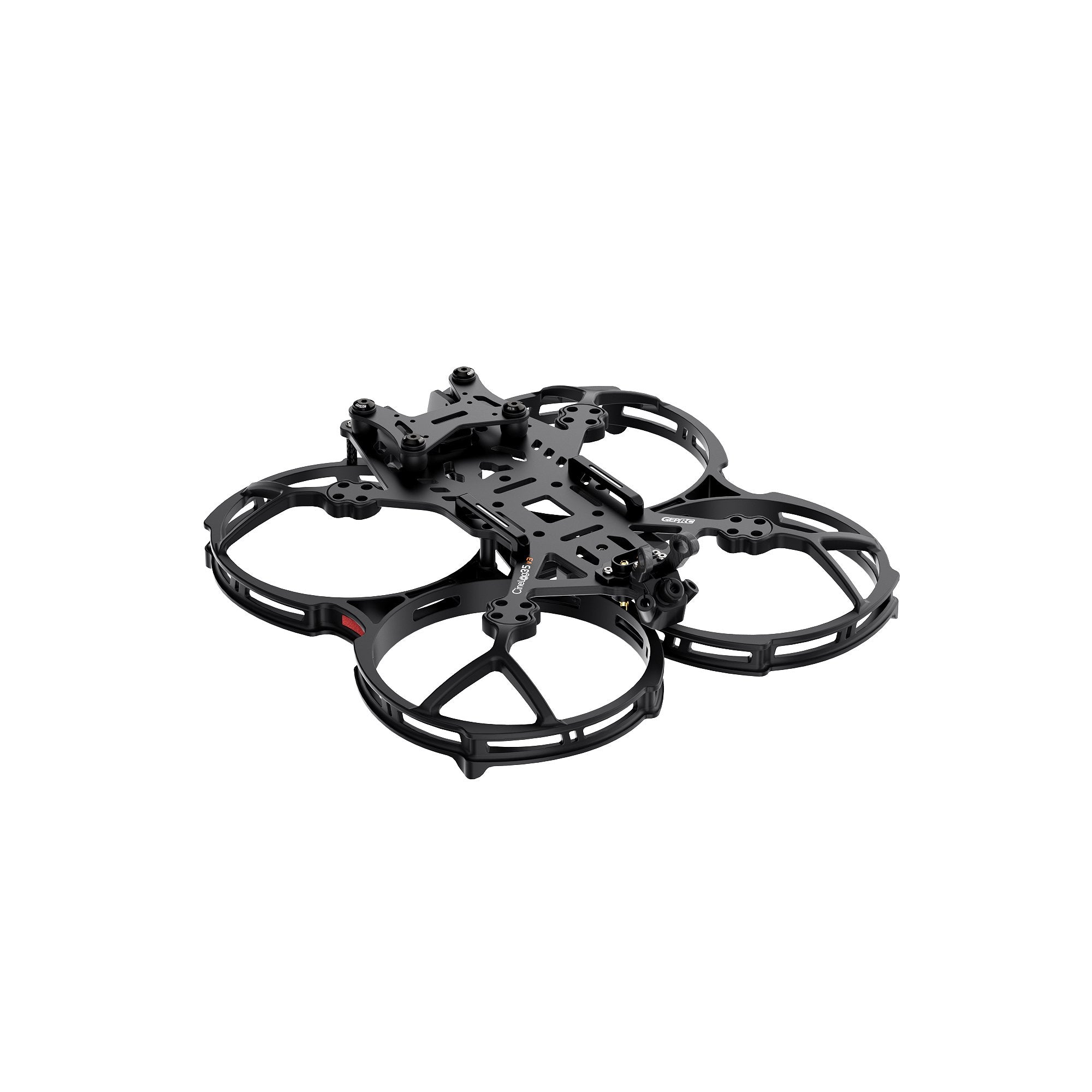

The Cinelog35 Series has been upgraded with the V3 frame kit to fully support the O4 Air Unit Pro HD digital transmission system.

The GEP-CL35 V3 frame has been specifically re-molded to fit the O4 Pro module, allowing users to easily access the Type-C port for data transfer and conveniently insert or remove the memory card.

With newly tuned damping balls, featuring improved damping ratios, the camera’s jello effect is effectively minimized for clearer and more stable footage.

Features

Compatible with the O4 Air Unit Pro HD digital transmission system.

Bottom-mounted camera design connected via tuned damping balls for effective vibration isolation.

Updated molds for the O4 Air Unit Pro module, allowing easy Type-C access for data transfer and quick memory card insertion/removal.

Designed with a GPS mount compatible with 22mm × 22mm × 8.2mm GPS units.

Main carbon plate finished with a matte black coating for a refined and premium appearance.

Specification

Product Name: GEP-CL35 V3 Frame

Wheelbase: 142mm

Gimbal Plate Thickness: 2mm

Main Plate Thickness: 3.5mm

Bottom Plate Thickness: 1.5mm

FC Mounting: 25.5mm × 25.5mm

VTX Mounting: 20mm × 20mm / 25.5mm × 25.5mm

Motor Mounting: 12mm × 12mm

Camera Mounting Width: 20mm

Duct Inner Diameter: 95mm

Prop Size: 3.5 inch

Frame Weight: 126.8g

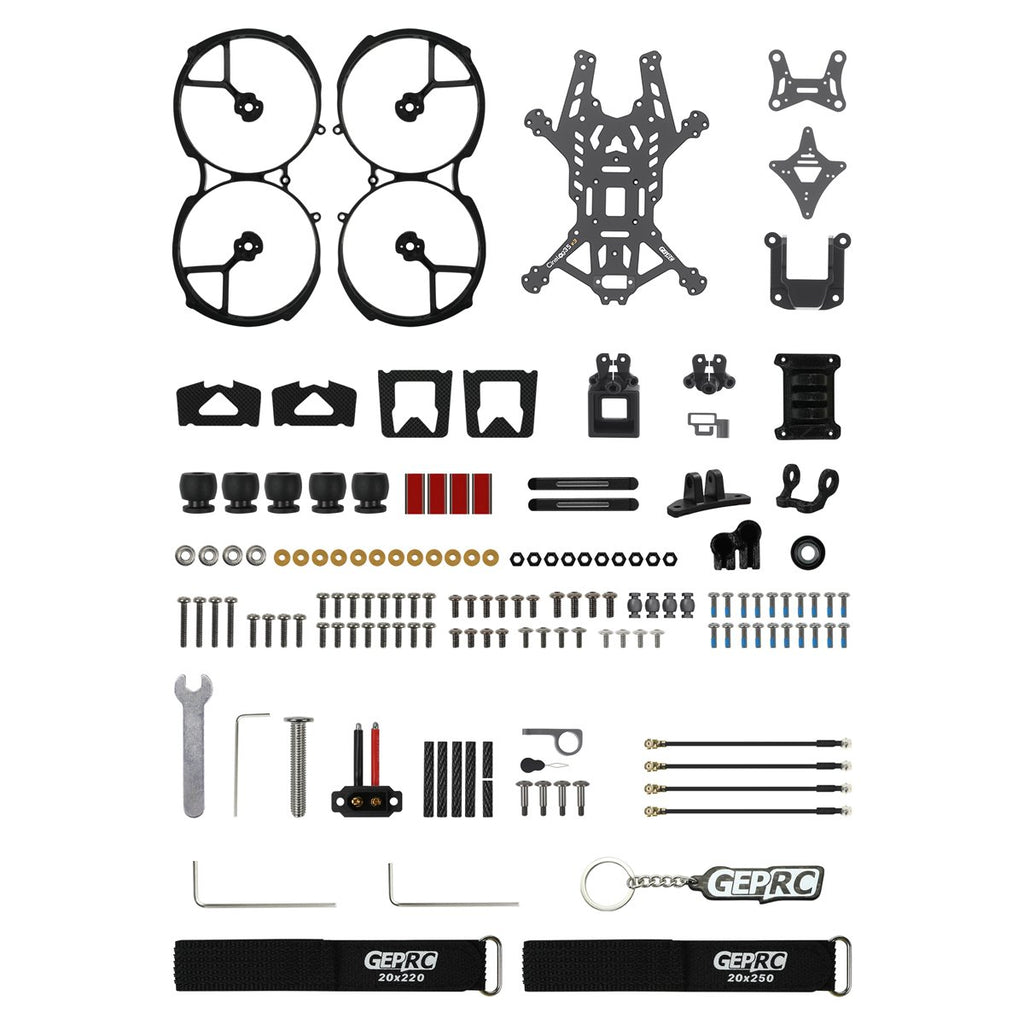

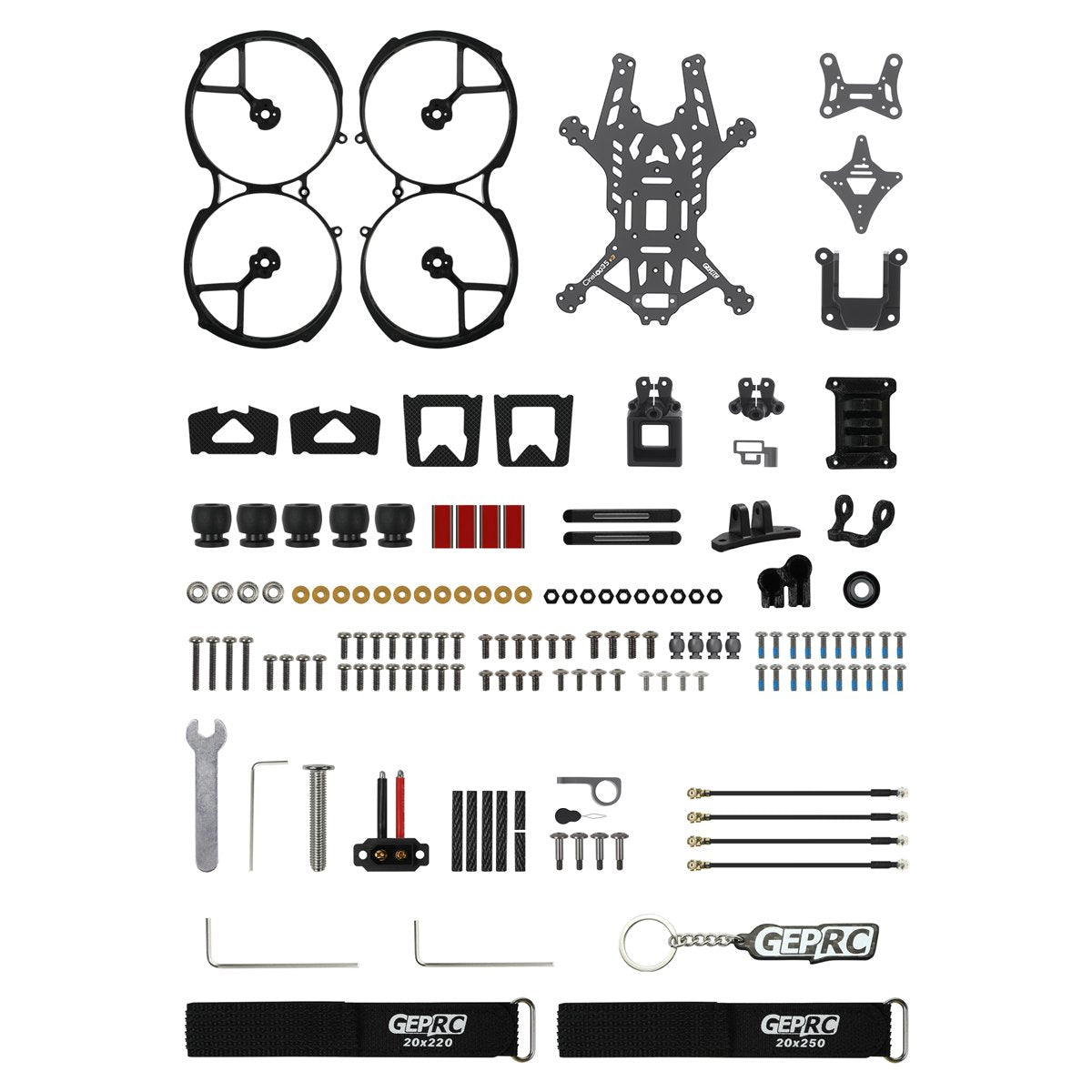

Includes

Main Carbon Plate × 1

Gimbal Carbon Plate × 1

Bottom Carbon Plate × 1

Prop Guard × 1 (pair)

Camera Mount × 1

Receiver Mount × 1

T-Antenna Mount × 1

Capacitor Mount × 1

Power Connector Mount × 1

VTX Antenna Mount × 1

GPS Mount × 1

Action Camera Base Mount × 1

40mm UFL Antenna Extension Cables × 4

Battery Anti-Slip Pads × 2 (sets)

Battery Strap Aluminum Mounts × 2

XT60EW-M Plug × 1

20×220mm Battery Strap × 1

20×250mm Battery Strap × 1

Small Accessories

M2*3.3*25 Textured Aluminum Standoffs × 4

Motor Wire Management Tubes × 4

Small Action Camera Base × 1

Camera Damping Balls × 6

Gimbal Damping Balls × 4

Damping Ball Installation Tool × 1

3.0mm L-Shaped Hex Wrench × 1

2.0mm L-Shaped Hex Wrench × 1

1.0mm L-Shaped Hex Wrench × 1

M8 Wrench × 1

Keychain × 1

Screw Pack

M2*7 Pan Head Screws × 20

M2*8 Pan Head Screws × 16

M2*6 Pan Head Screws × 6

M2*5 Pan Head Screws × 4

M2.5*6 Pan Head Screws × 4

M2 Hex Nuts × 10

M3 Press-Fit Nuts × 4

M2 Press-Fit Nuts × 12
