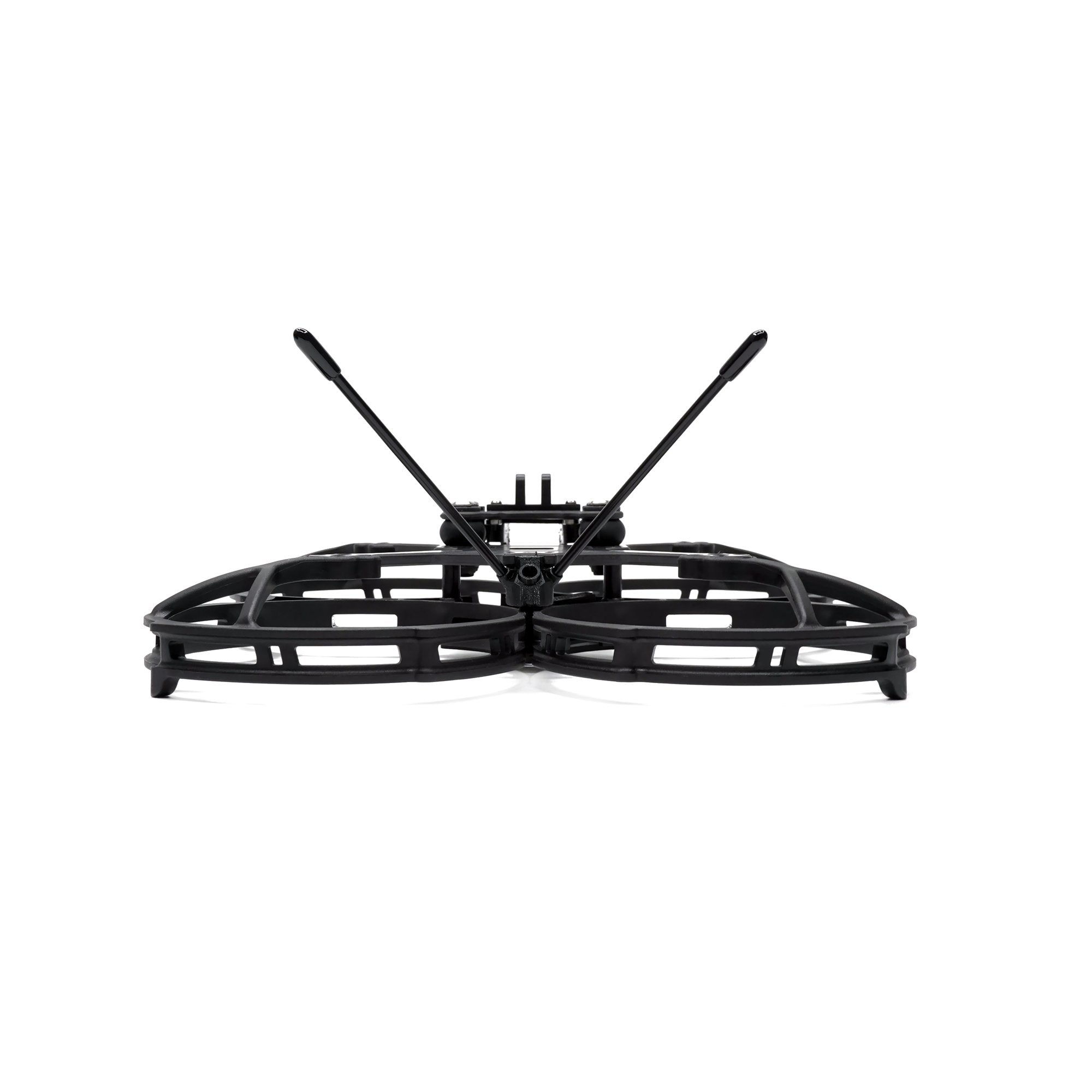

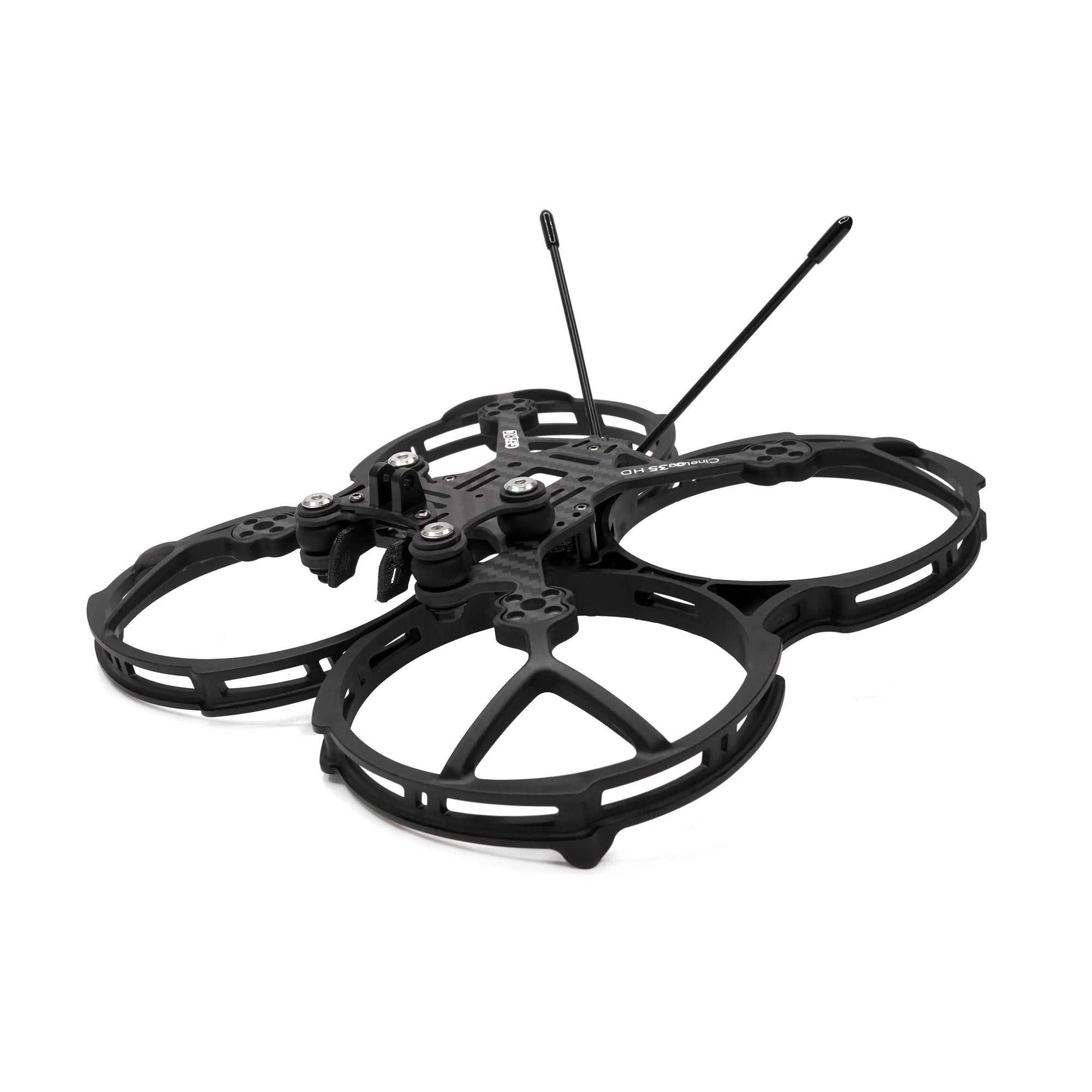

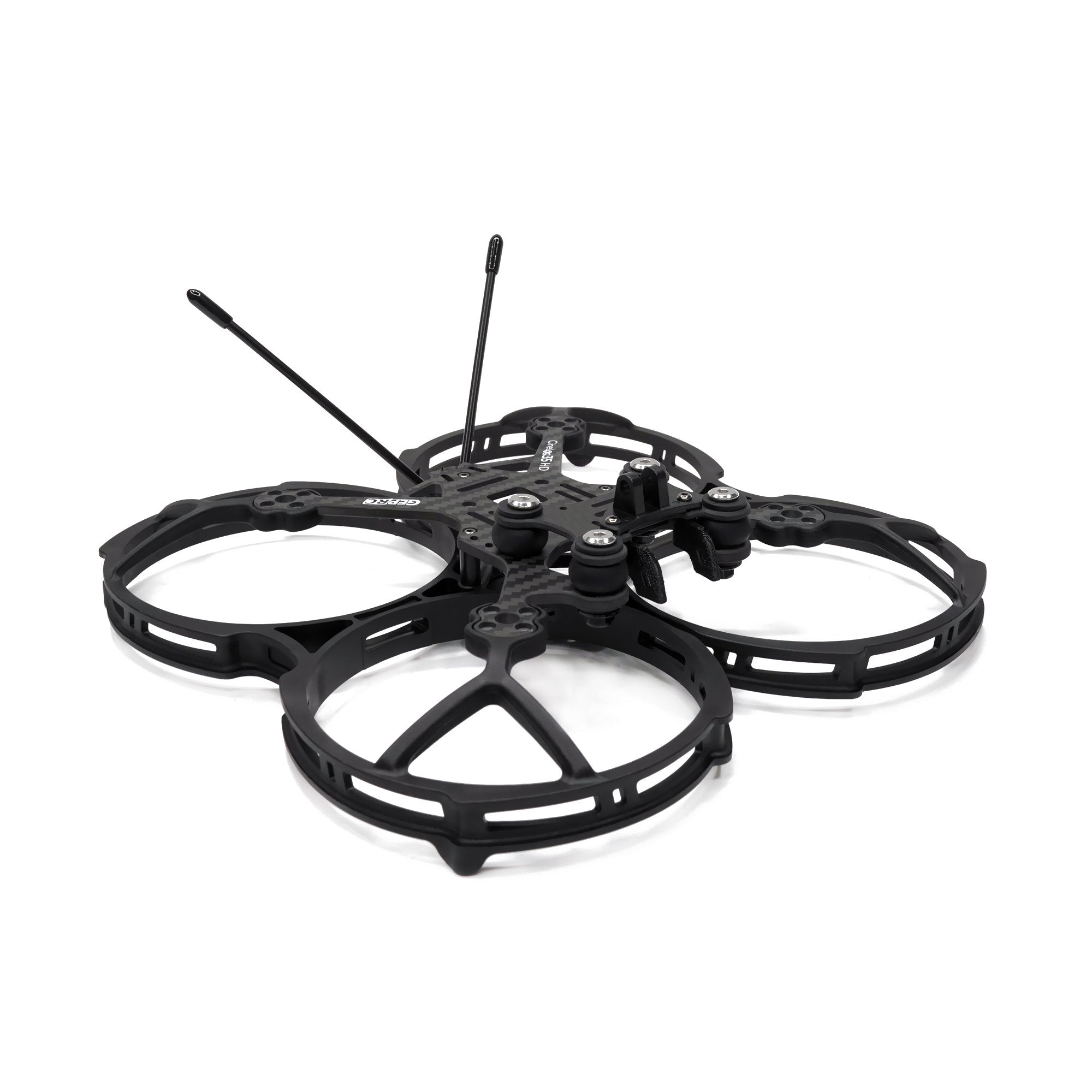

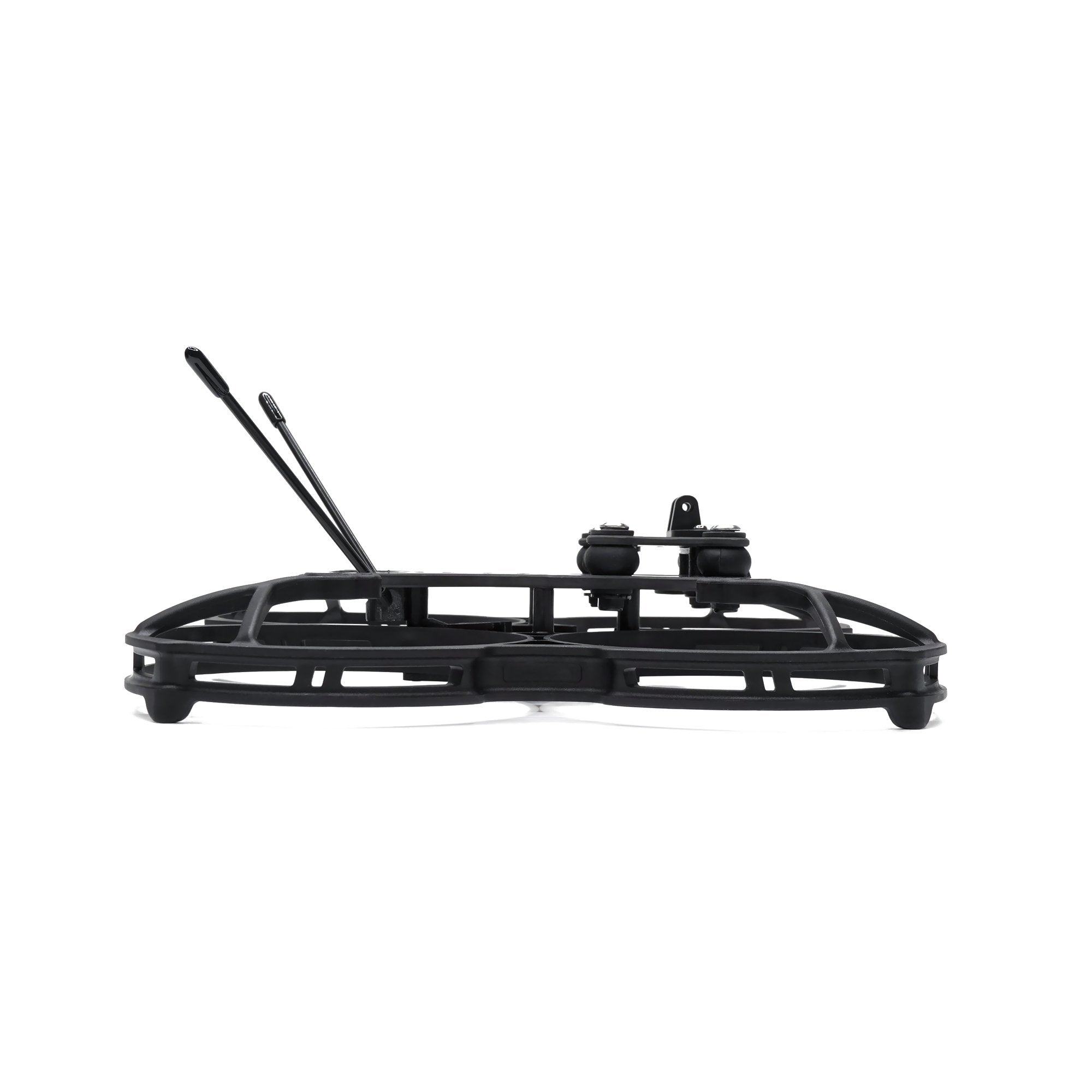

GEP-CL35 Frame｜FPV 機架

GEP-CL35 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary：

The CineLog35 Frame developed by CEPRC for mounting GP camera is now officially released.

CL35 is improved and developed on the basis of CL30. It supports the installation of mainstream AIO FC with 26.5mm x 26.5mm holes. The VTX installation hole is 20mm x 20mm, which can be directly installed with VISTA HD image transmission.The propeller guard adopts an integrated design, and the overall structure is firmer.Upgrade the power system, choose the 12mm x 12mm motor hole position, compared to CL30, it can install a larger 15-18-20 series motor, with a 3.5-inch propeller, it has a stronger power output. Improve the damping rings, the shooting effect is more stable and clearer.It has an stronger mounting compatibility, you can use 3D prints to install the full size GP8、GP9、GP10 camera or use the base to install naked camera GP8, Insta 360 GO2 and Caddx Peanut cameras.

We pursue lighter body weight, better flying feel, and more extended functions.

Specification:

Model: GEP-CL35

Motor to Motor: 142mm

Top plate: 2.5mm

Bottom plate: 2.0mm

Arm Plate:3.5mm

FC mounting hole: 25.5mm x 25.5mm

VTX hole position: 20mm x 20mm

Motor hole position: 12mm x 12mm

Camera installation space: 14~19mm

Propeller guard internal diameter: 95mm

Suitable propeller size: 3.5 inch propeller

Dimension: 203mm x 203mm x 42mm（Include propeller guard）

Weight:130.7g（Include propeller guard,GP camera camera mount,3D printings）

Feature:

Integrated protection guard design, the overall structure is firmer and durable.

Improve the damping rings, the shooting effect is more stable and clearer.

CineLog35 has a great mount compatibility, you can install GP10, GP9, GP8, or Naked camera GP8,Insta 360 GO2 camera and Caddx Peanut camera.

12mm x 12mm motor holes can be installed with 15-18-20 motors, and the power output is strong with 3.5-inch propellers.

The design of open holes on the side of the propeller guard greatly reduces the noise during flight.

Independent receiver cabin,and binding is convenient and fast.

Include:

1 x

Top Plate

2.5mm

1 x Arm Plate 3.5mm

1 x Bottom Plate 2.0mm

2 x

Propeller guards

1 x Power cable combination

1 x Screw combination

1 x Screwdriver combination

1 x 3D Print mountings combination

1 x Other Parts
