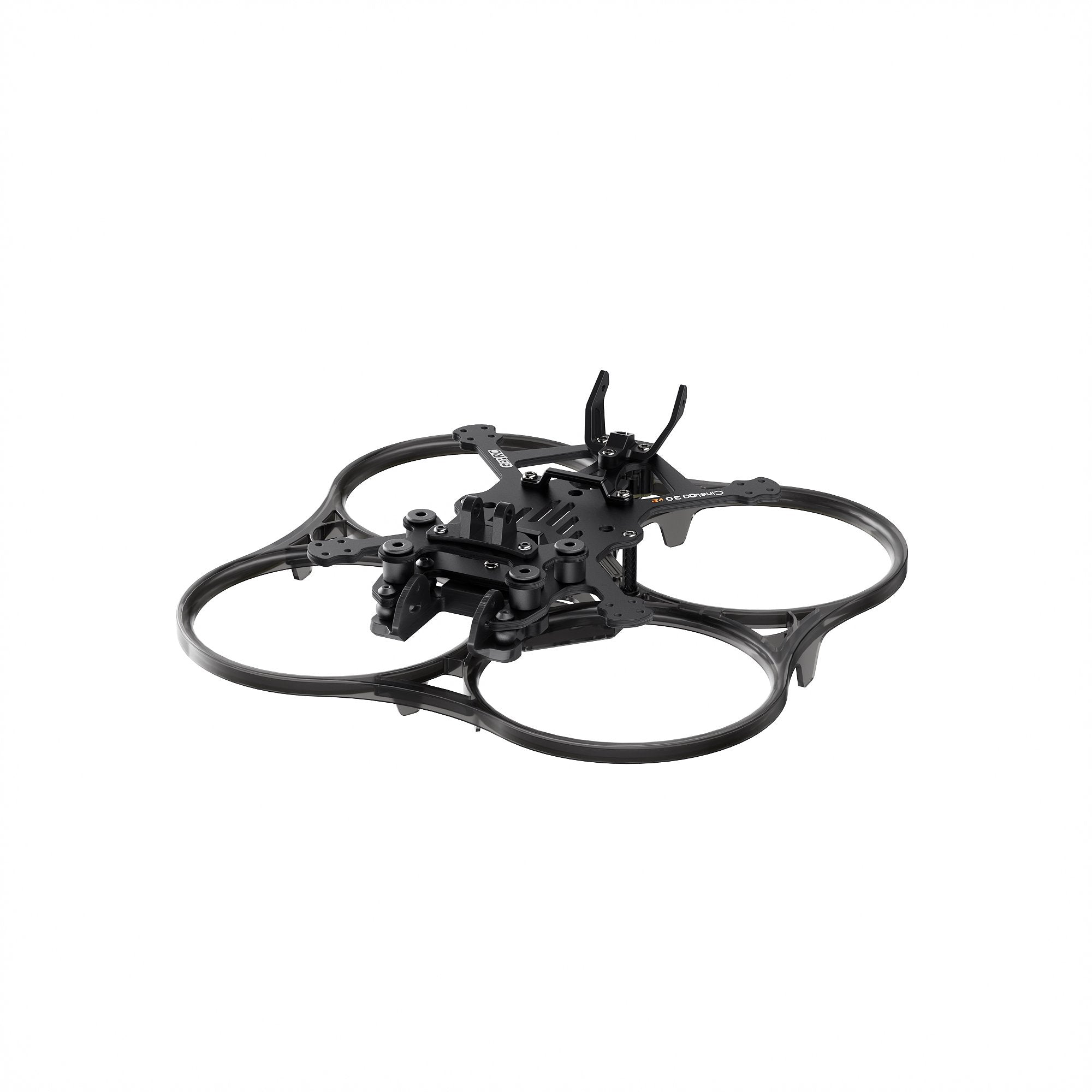

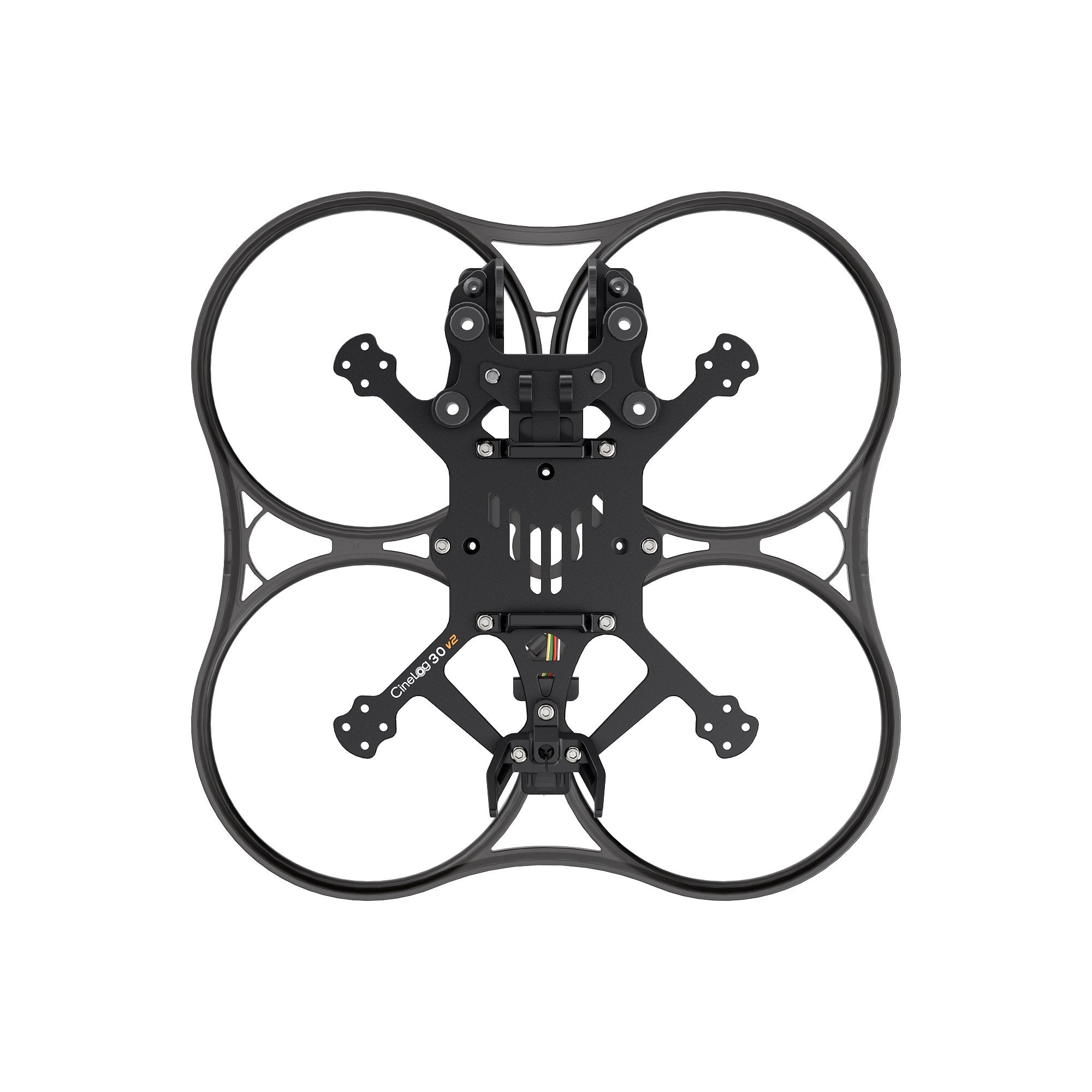

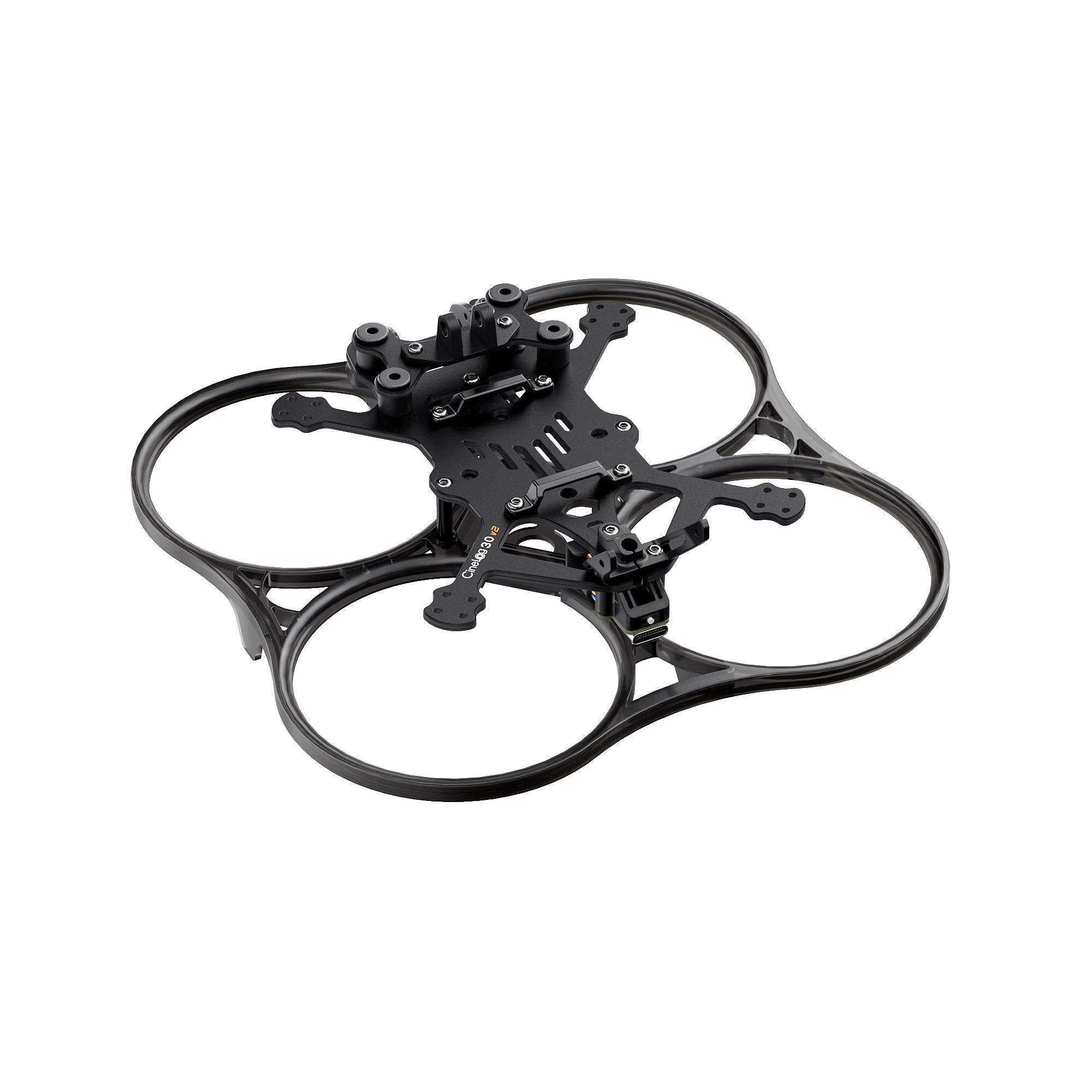

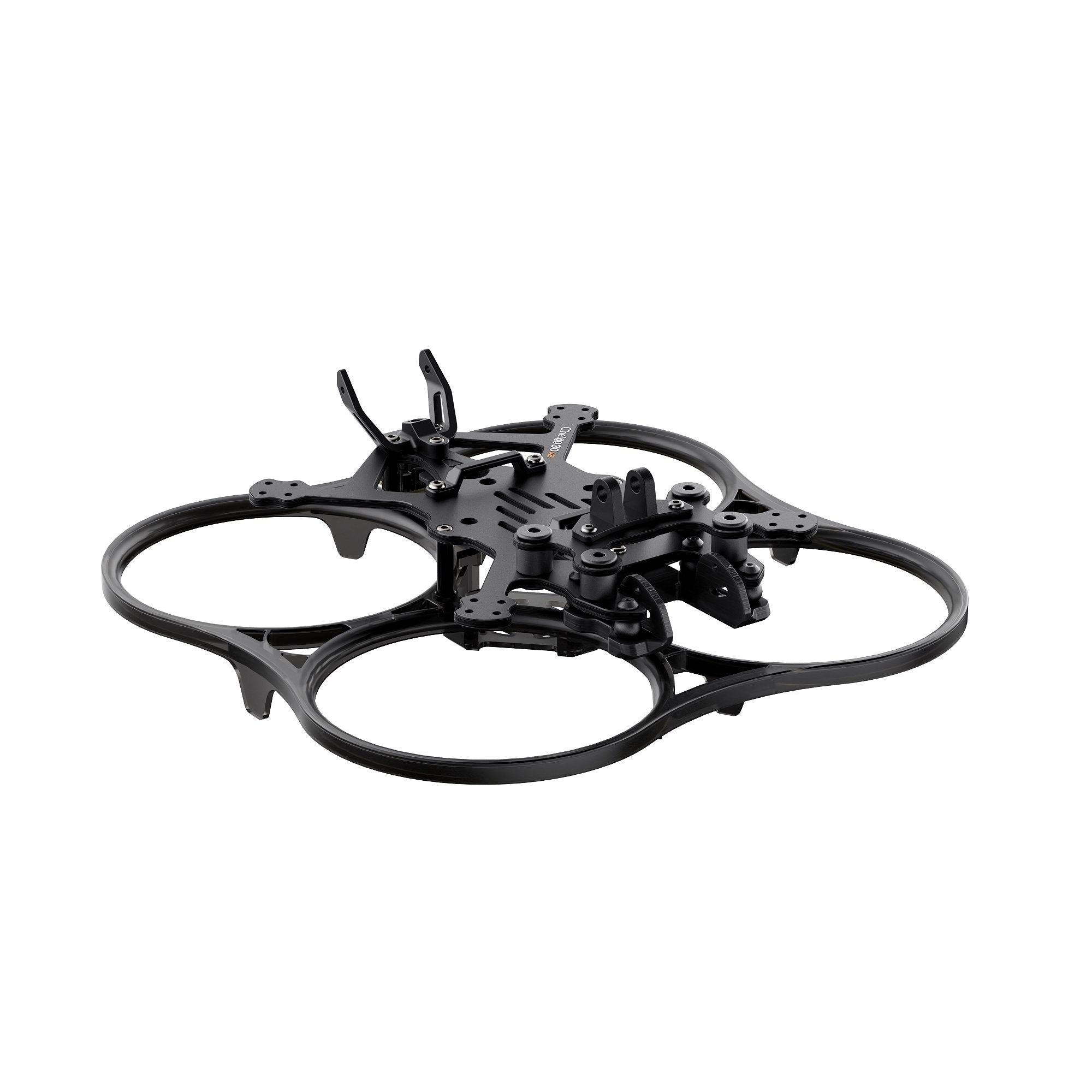

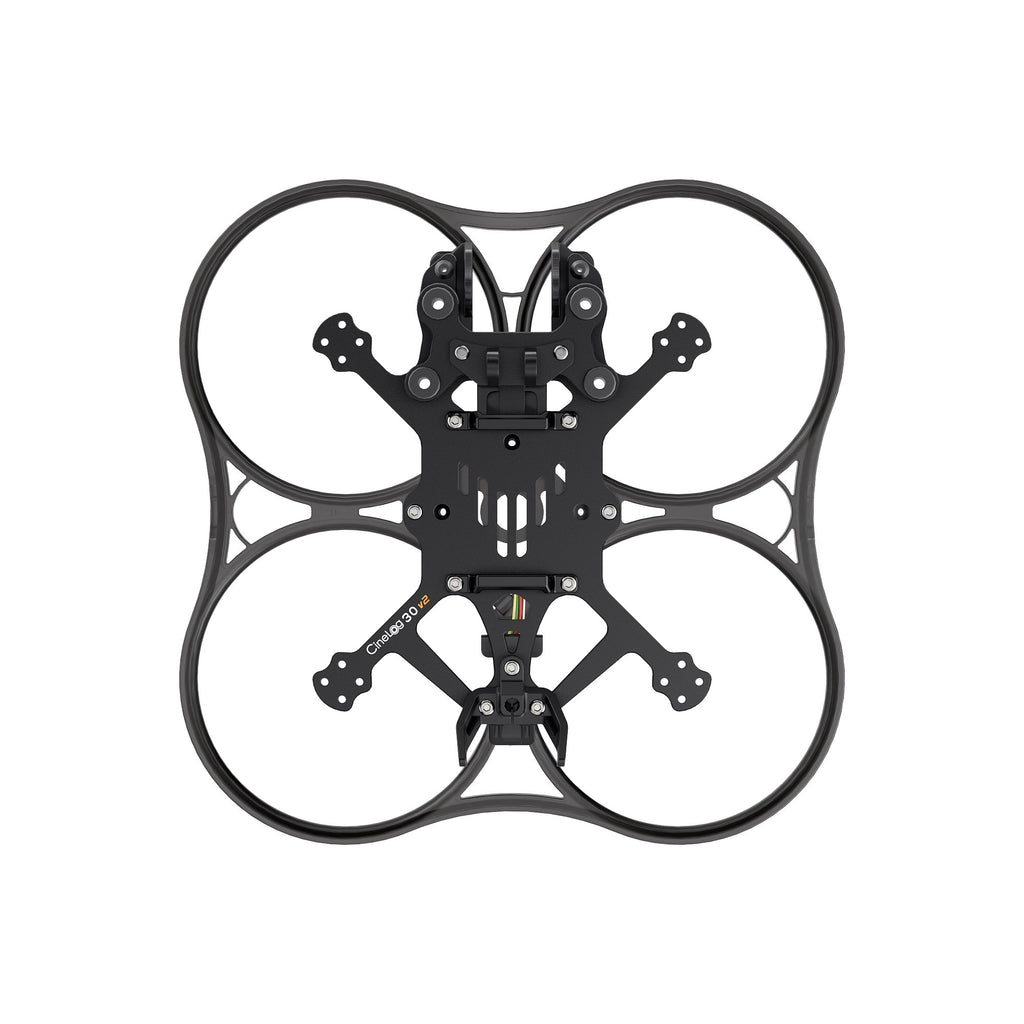

GEP-CL30 V2 O3 Frame｜FPV 機架

GEP-CL30 V2 O3 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

The GEP-CL30 V2 O3 frame retains the lightweight design of its predecessor, now upgraded with an all-in-one protective frame and a built-in COB LED strip for vibrant night flying.

The underslung VR gimbal ensures smooth, stable footage with the O3 camera. The rear USB expansion port and antenna mounts simplify assembly and tuning. Pair with 1404 3850KV motors and the CT30 V2 frame for the ideal thrust-to-weight ratio, delivering robust power with a lightweight feel.

The lightweight design offers an exceptional shooting experience and allows for more agile and fluid flying.

Features

Lightweight design with 1404 motors and a LiHv 4S 720mAh battery, keeping the weight under 250g.

Integrated frame with COB LED mount, delivering a vibrant lighting effect.

Molded shock-absorbing mount for stable footage.

The rear USB expansion module has a built-in LED tail light for easier tuning and setup.

One-piece T-shaped antenna mount for a secure fit.

Custom VTX compartment for easy memory and USB access.

Simplified quick-release design for hassle-free maintenance.

Specification

Model: GEP-CL30 V2 O3 Frame

Color: Black

Dimension: 175mm*173mm*40mm

Wheelbase: 124mm

Carbon Fiber Plate Thickness: 2.5mm

FC Mounting Patterns: 25.5mm * 25.5mm

VTX Mounting Patterns: 20mm * 20mm / 25mm * 25mm

Motor Mounting Patterns: 9mm * 9mm

Camera Mounting Patterns: 19mm / 20mm

Connector: XT30

Compatible Propeller: 3-inch

Weight: 67.6g

Includes

1 x Integrated Frame

1 x Integrated Board

1 x Naked Gopro Carbon Plate

1 x Naked Gopro Mount

1 x Camera Mount

1 x T-Shaped Antenna Mount

1 x USB Extension Port

1 x Rear Light Cover

1 x Damping Ball Puncher

2 x Battery Anti-slip Pads

1 x Screw Pack

2 x 15*150mm Battery Straps

1 x L-Shaped Screwdriver 1.5mm
