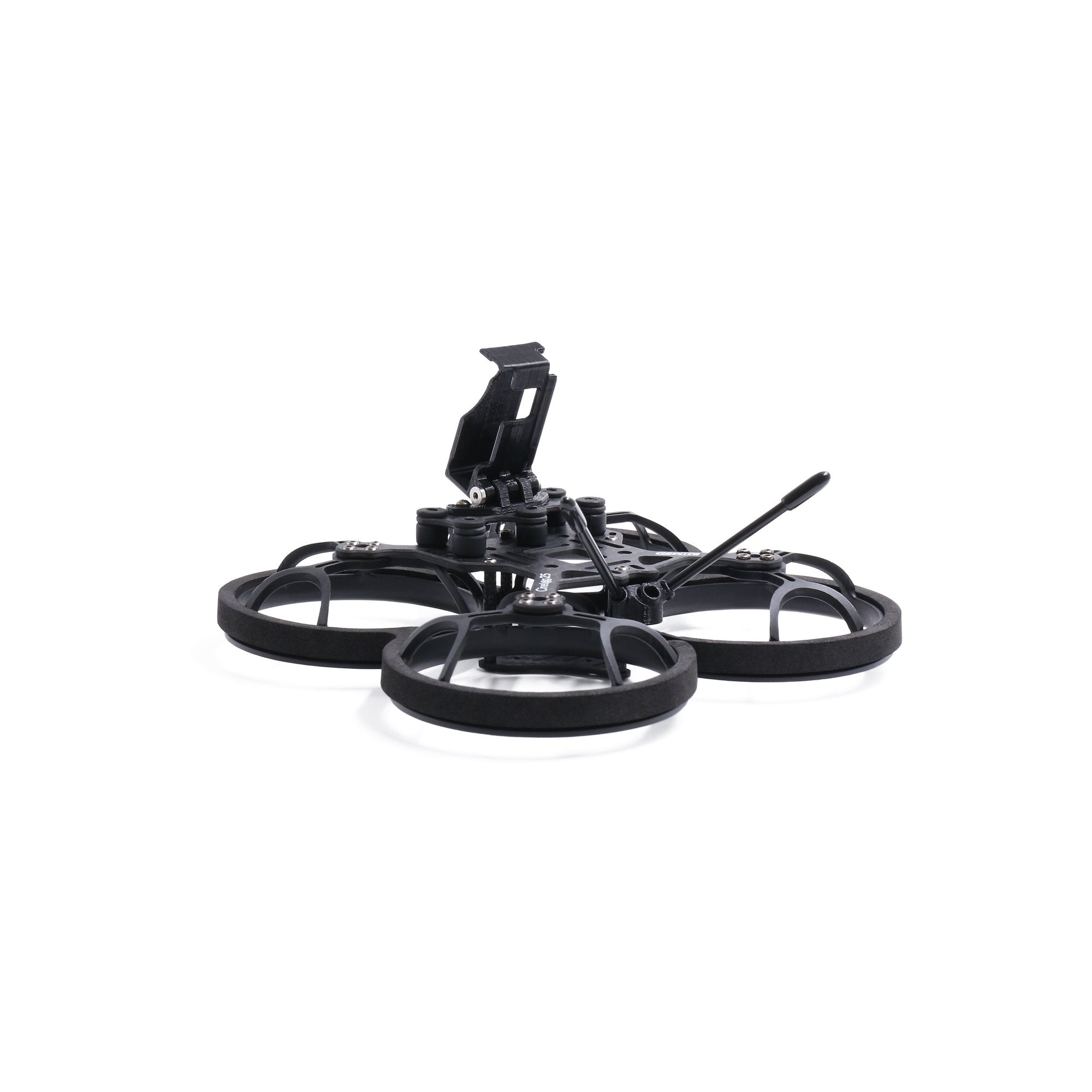

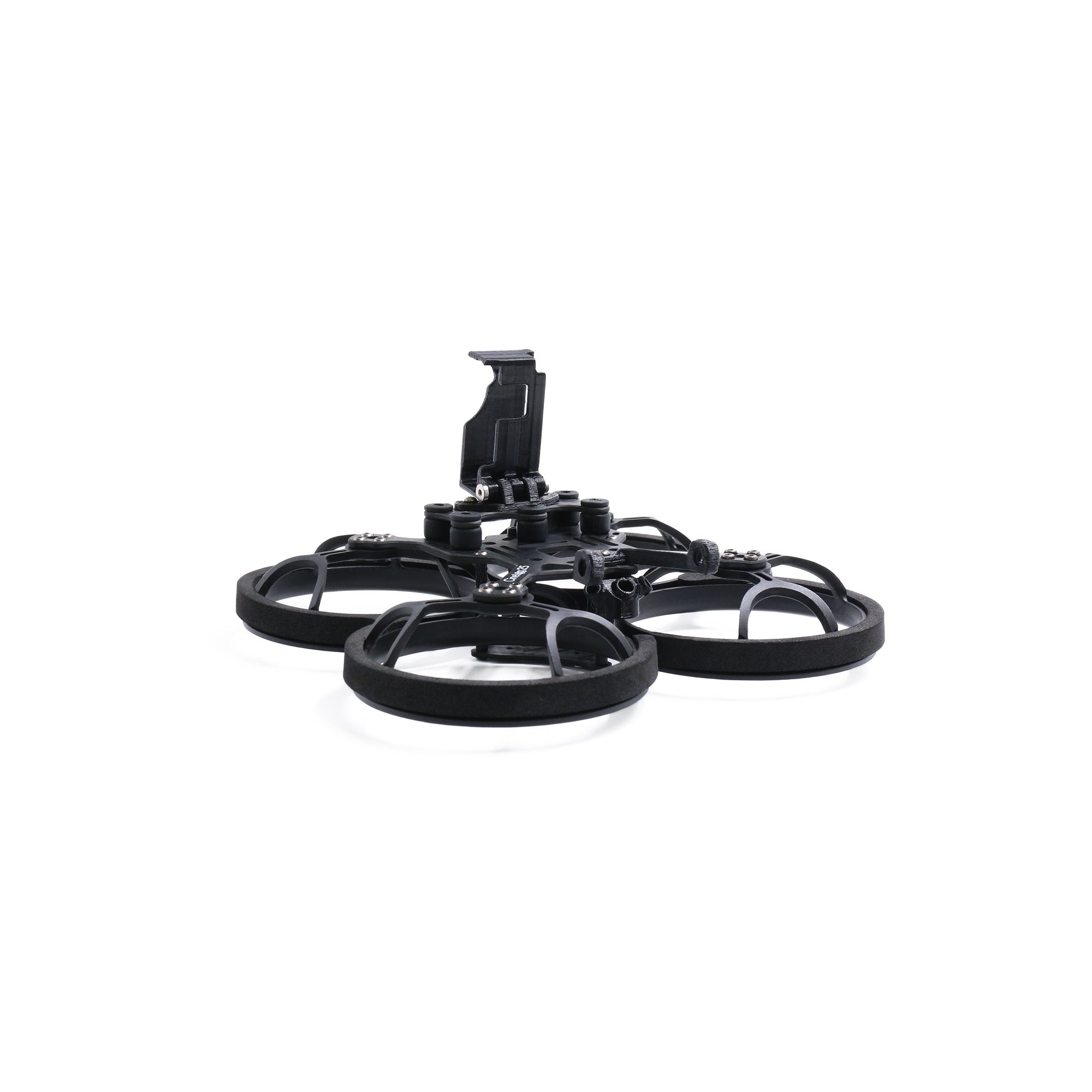

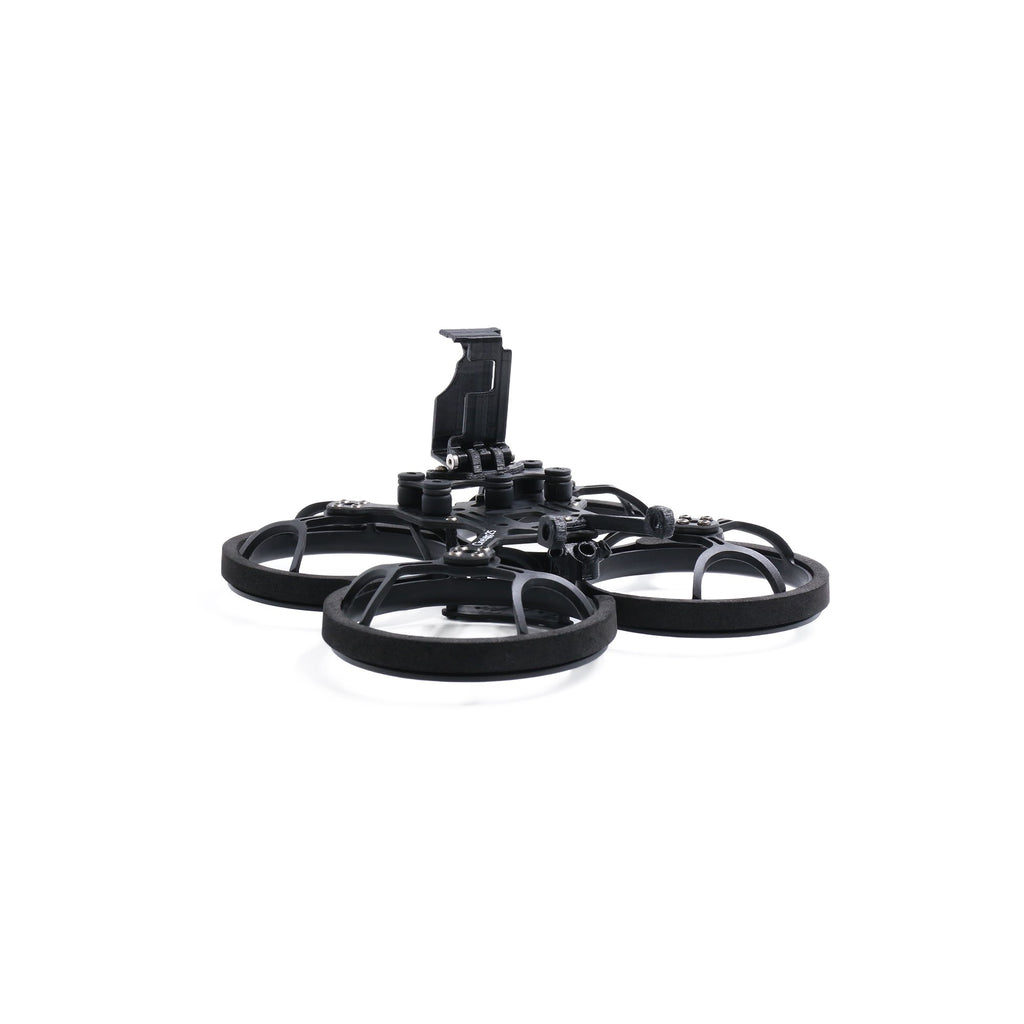

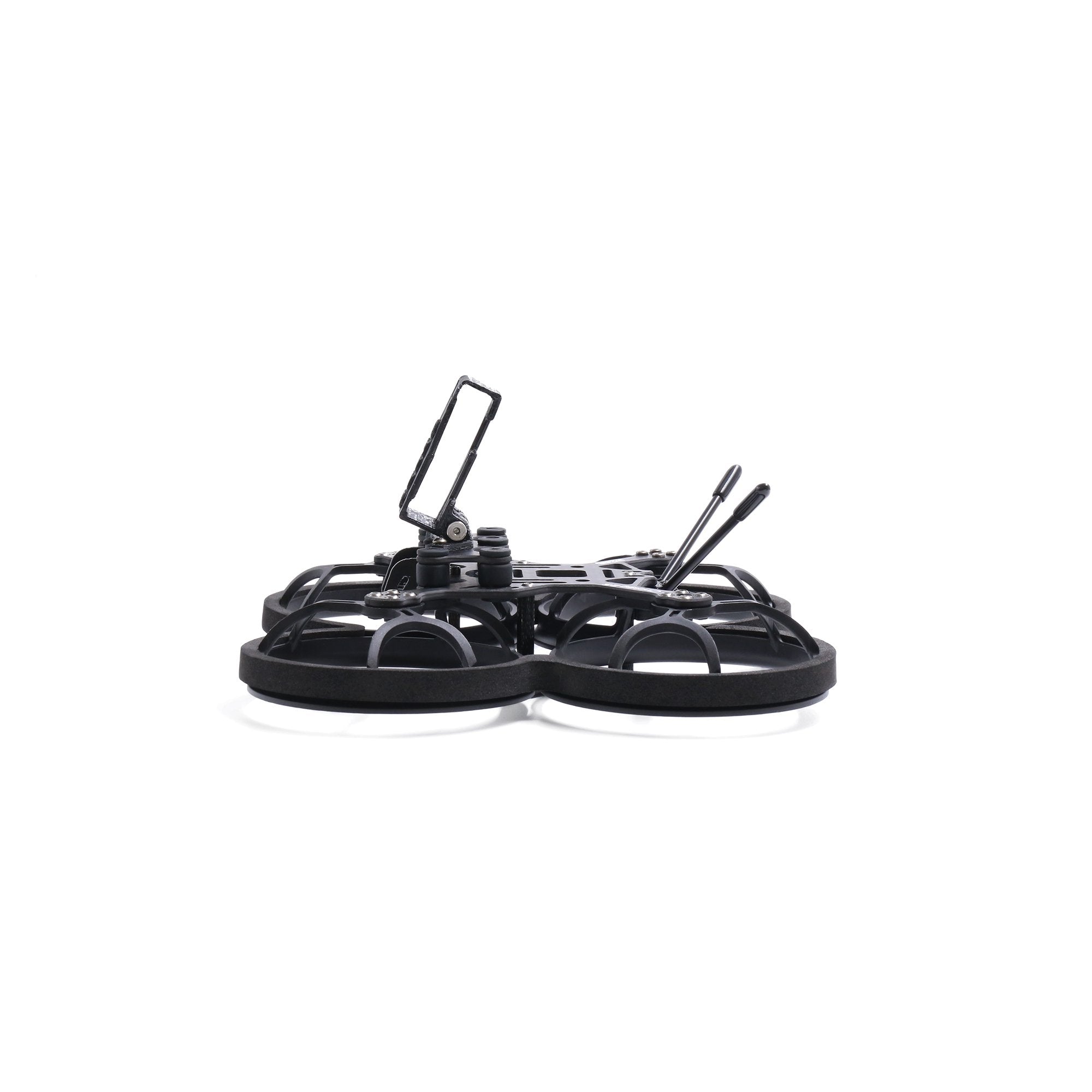

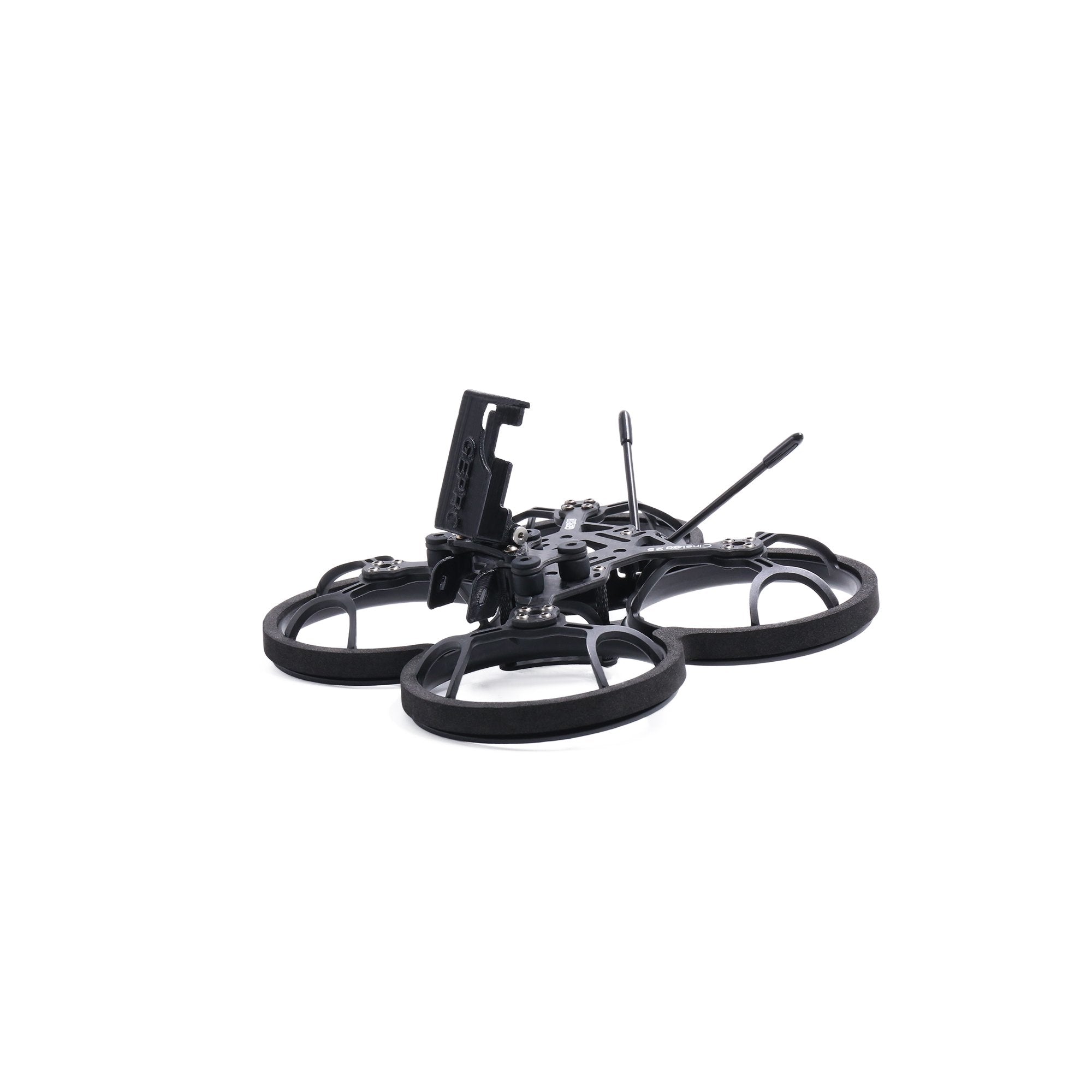

GEP-CL25 Frame｜FPV 機架

GEP-CL25 Frame｜FPV 機架

GEPRC 官方FPV 機架，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary

GEP-CL25 Frame is designed by GEPRC team. It can be used for Vista HD digital image transmission system or Analog image transmission system.The center of gravity of the quadcopter is in the middle,Redesigned the shock absorption structure of the camera mount and GP Lite camera, Eliminated the jello of the camera and FPV camera, and we can use 3, 4 and 5 damping rings according to the flight state to obtain the best stability in vibration and noise.

Specification

Brand: GEPRC

Item: GEP-CL25 Frame

Motor to Motor: 109mm

Internal diameter of Guard: 2.5inch

Camera size: 19~20mm

Propeller: 2.5inch

The hole size of Motor: 9mm ( Compatible with 1105/1204/1206Motor)

FC mounting hole: 25.5*25.5mm

Thickness of Top Plate: 2.5mm

Thickness of Bottom Plate: 1.5mm

Thickness of Bottom Plate(camera): 2mm

Weight: 47.8 Grams

Include:

1 x Top plate 2.5mm

1 x Bottom plate 1.5mm

1 x Bottom Plate(Camera)1.5mm

4 x（M2*3.5*25mm）Aluminum posts

2 x（M2*3.5*8mm）Aluminum posts

28 x（M2*6mm）YFS Round head screws

2 x（M2*8mm）YFS Round head screws

4 x（M2*12mm）YFS countersunk head screws

16 x（M2*2mm）Nylon Nuts

4 x（M2*18mm）YFS countersunk head screws

5 x Damping Rings

1 x（19*19mm）Mount of camera

1 x（14*14mm）Mount of camera

1 x 3D print part of XM antenna

1 x 3D print part of TBS antenna

1 x Naked Camera Base

2 x Batteries pads

2 x EVA Landing pads

4 x 2.5inch Guards

1 x EVA Damping Ring of Guard

2 x Antenna Tubes

2 x Batteries straps (M15*150mm）
