Summary:

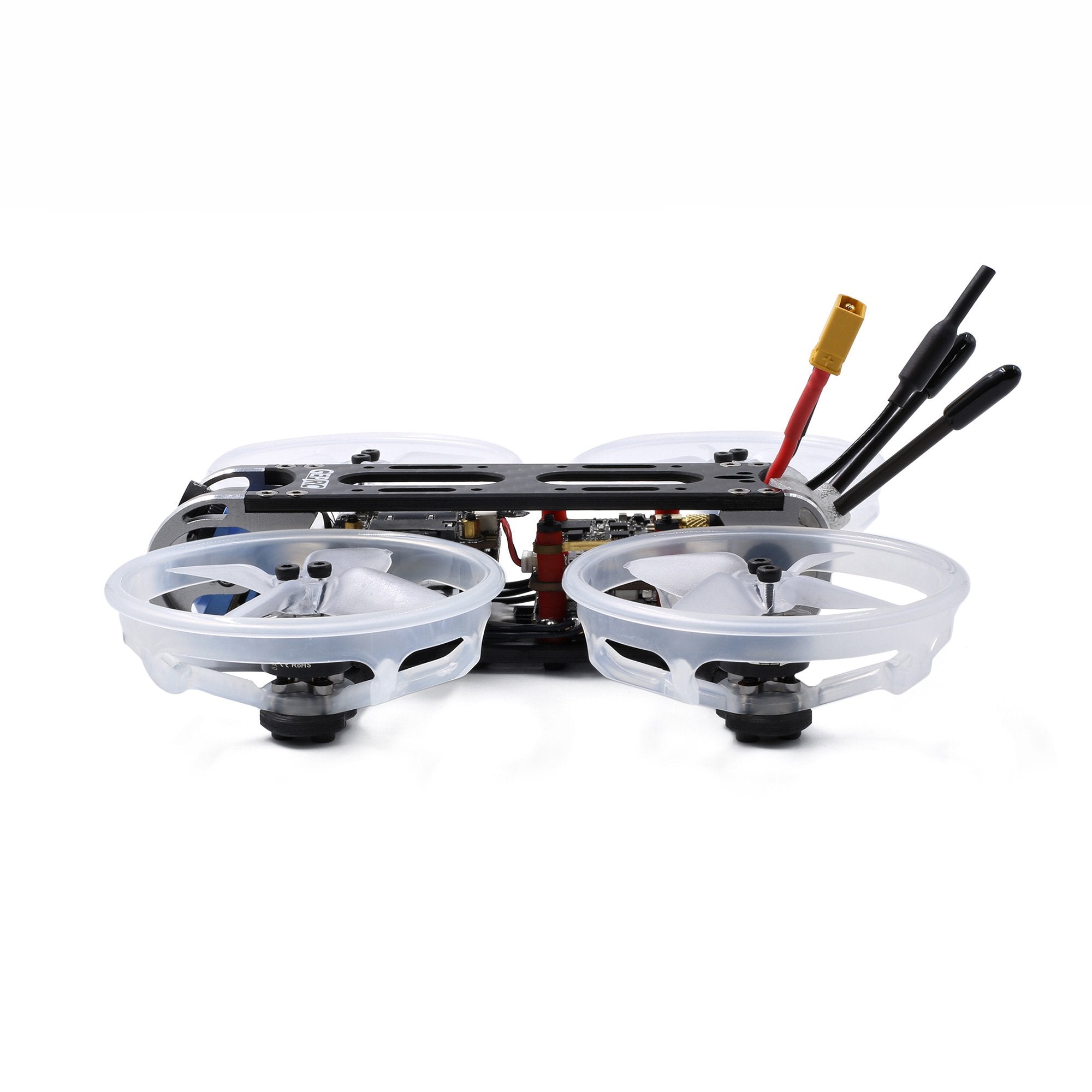

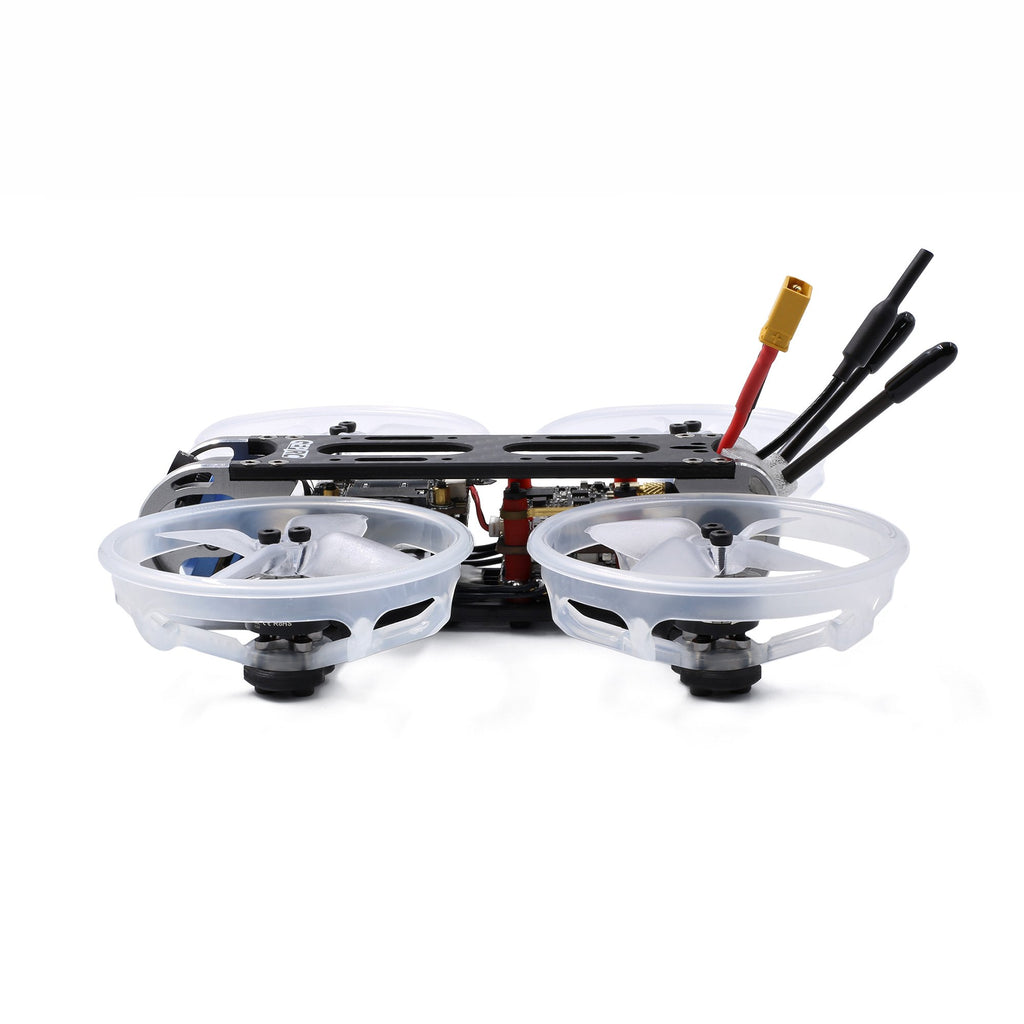

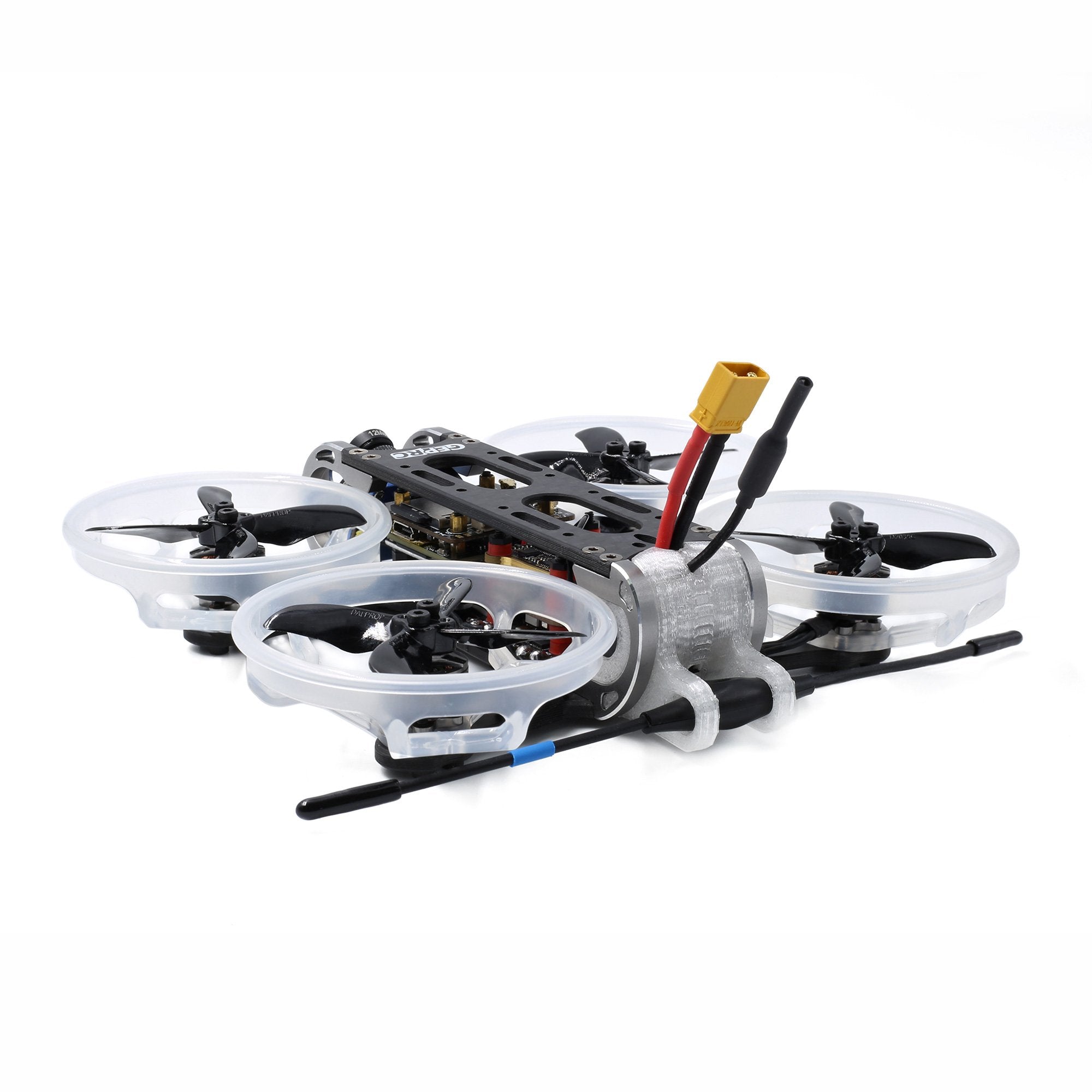

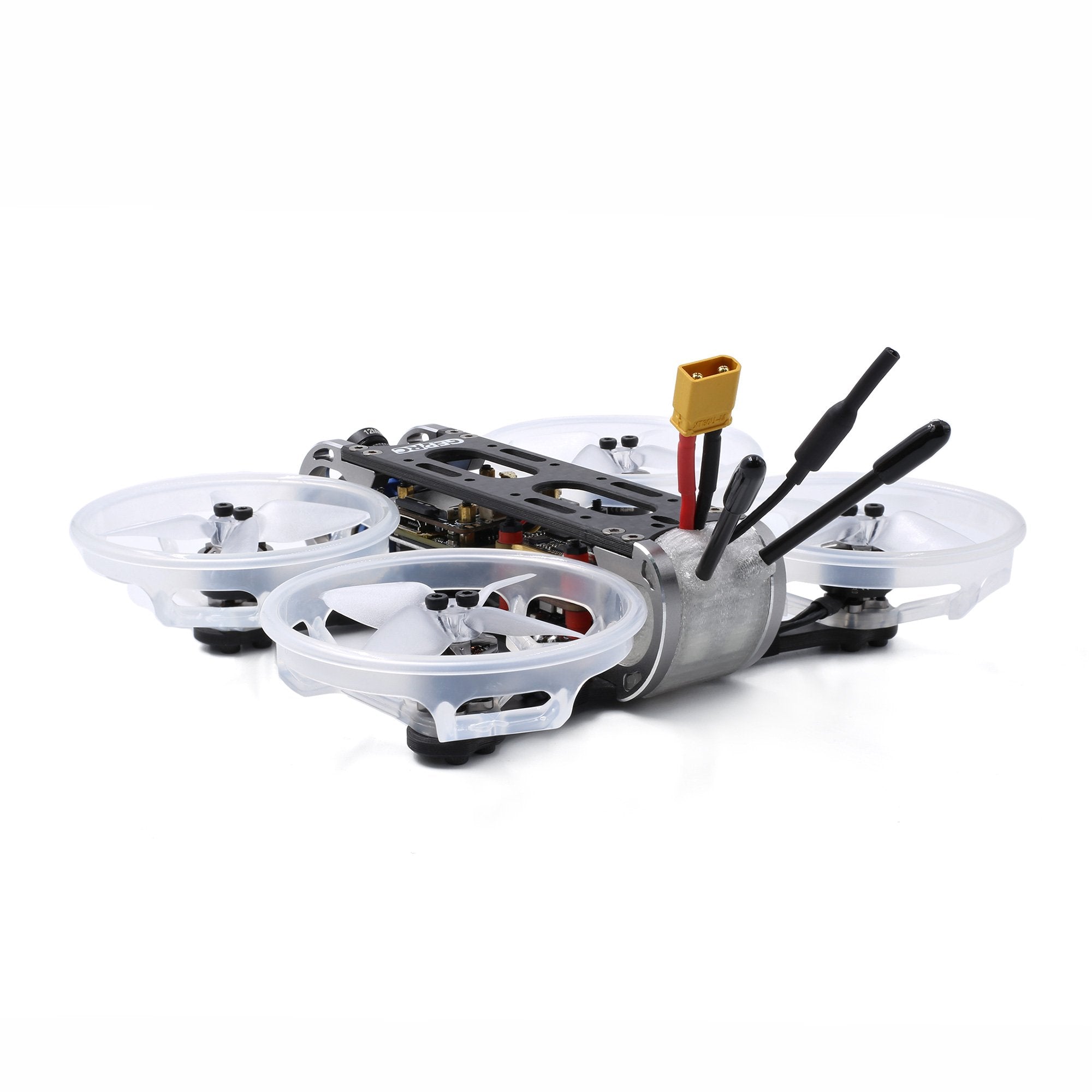

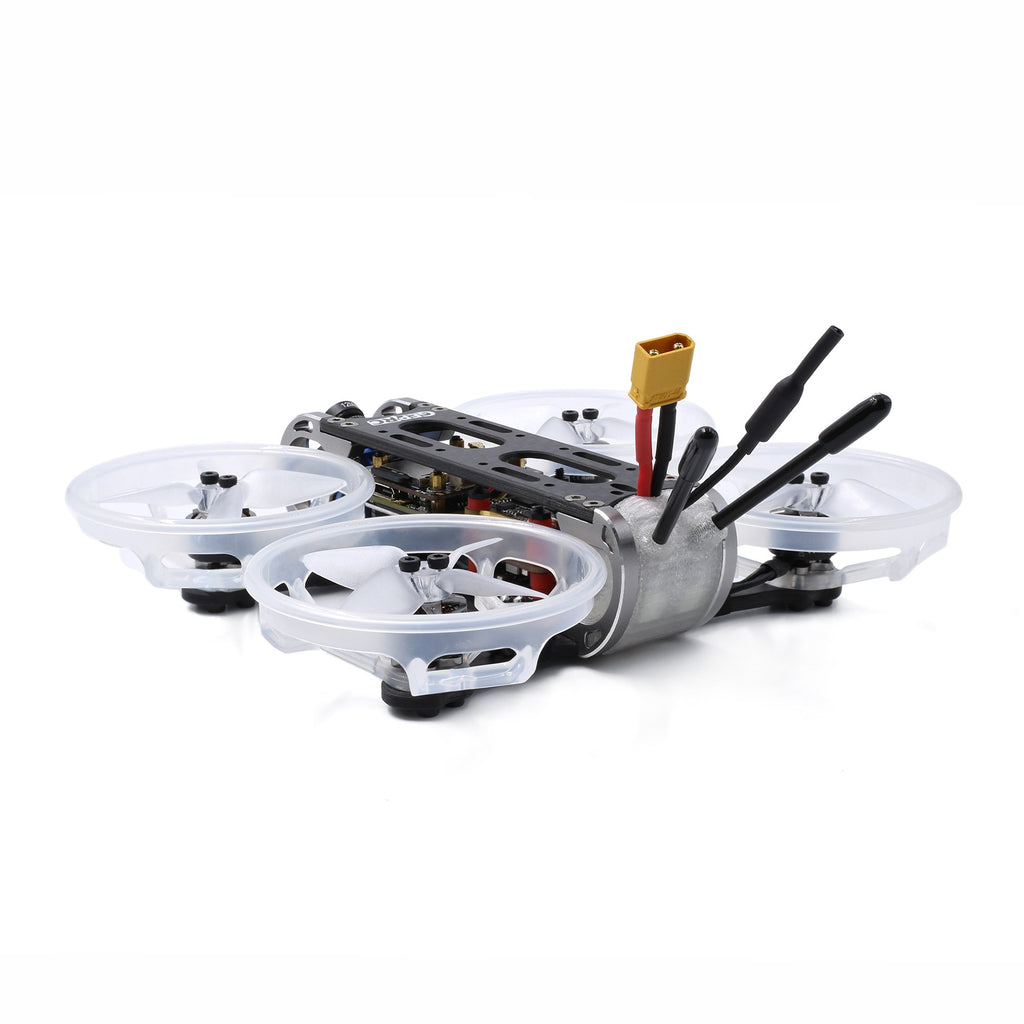

We are glad to introduce you to CinePro 4K, which can accomplish some tasks that traditional aerial photographic aircrafts can not do. It is lightweight, compact and capable of recording 4K@30fps video with excellent quality and moving colors.

We are very proud to choose STABLE PRO F722 DUAL GYRO, an AIO flight controller using STM F722 MCU and synchronous working dual ICM20689 gyros(currently most gyros are working asynchronously on other FCs). These provide you with a smooth and locked-in flight feeling. It is worth mentioning that the jelly problem that you may concern about will not happen to CinePro 4K. You can refer to the sample video.

CinePro 4K uses the improved GEP-CX2 frame and newly designed propeller guard. It has perfect aerodynamic performance, safety, durability and high efficiency.

In terms of power system, we use GR1105 kv5000 motor, which is balanced, smooth and very suitable for aerial photographic quads. It is recommended that 4S battery be used to achieve the best efficiency. 4S 450mAh battery for indoor, 4S 650mAh battery for outdoor. The safe flight time is more than 4 minutes.

CinePro 4K is carefully assembled and debugged by GEPRC team. The BNF kit is bind & fly, the PNP kit needs your own receiver.

Features:

HD Video Recording: 4K@30fps, 2.7K@60fps, 1080P@90fps.

Dual Camera System: 1200TVL FPV camera of competition-level, low latency within 10ms.

WIFI/APP support: Video recording parameters are adjustable by WIFI/APP.

Advanced Version: F722 Flight Controller, STABLE PRO F722 DUAL BL32 35A.

Basic Version: F405 Flight Controller, STABLE V2 F405 30A.

Black Box: 32Mb onboard flash memory.

500mW VTX Power: Effectively improves your flight distance.

Aerial Photography Friendly: No sight of propellers and propeller protection frames in your video.

Full Soft Mounted FC System: Provides a clean operating environment for gyro.

Say Goodbye to Jelly: Stable video, and comfortable FOV.

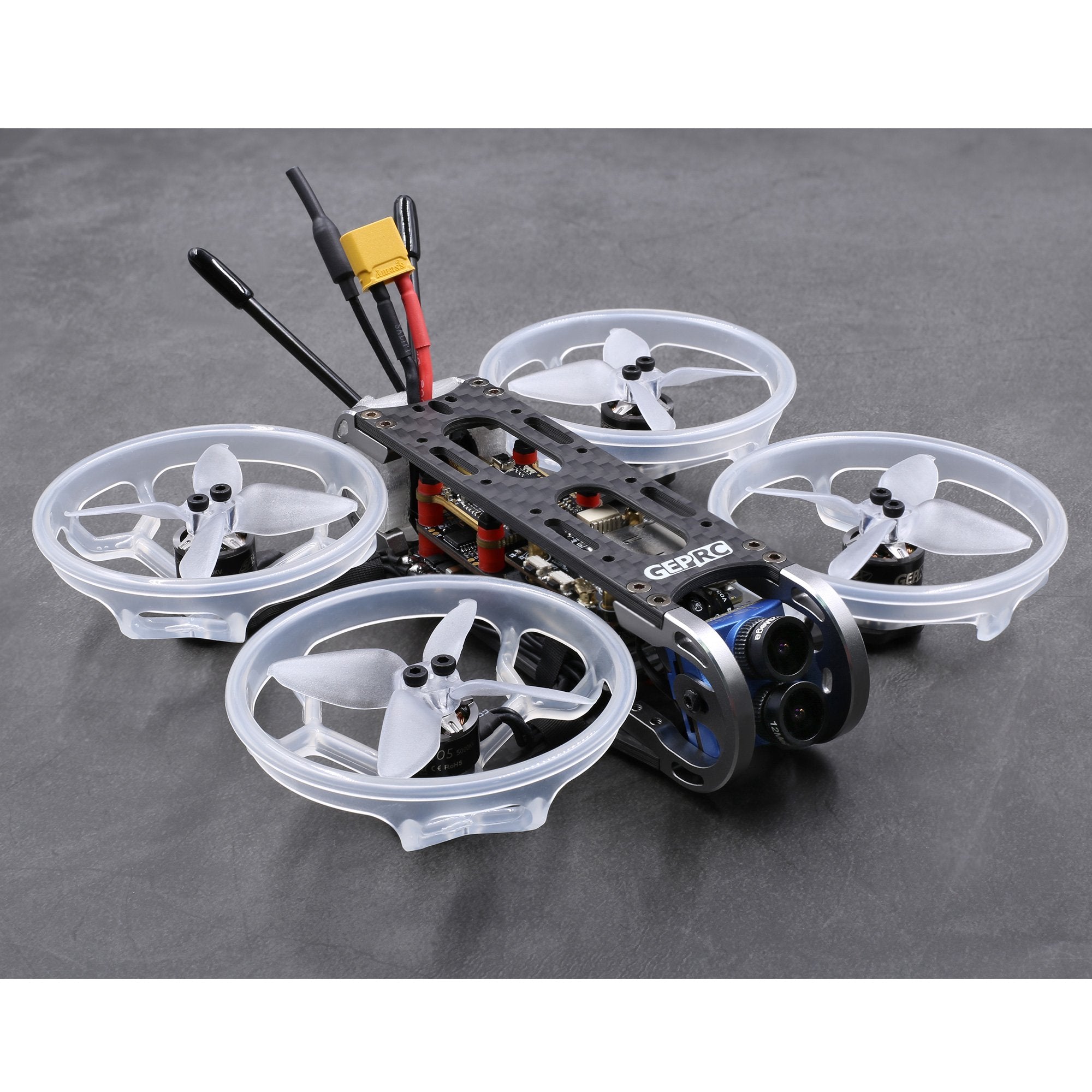

Improved GEP-CX2 Frame: Full 3K carbon fiber, 7075 aviation aluminum, High-precision CNC. Rugged and durable frame, Better protection for the 4K camera.

New Propeller Guard: Better airflow, Higher flight efficiency.

High Efficiency Motor: GEP-GR1105 5000KV Motors, 4S battery (450-650mAh) recommended.

Taillight Design: Eye-catching night view and lighting effects.

Exquisite Assembly Process: Eliminate any potential installation problems.

Specification:

Frame:GEP-CX2(Improved version,Including Guards)

STABLE PRO F722 DUAL Gyro ICM20689

OR

STABLE V2 F405

Camera:

Caddx Tarsier 4K 1200TVL

Motor:GEP-GR1105 5000KV

(4S lipo battery is Best)

Propeller:EMAX AVAN 2Inch or DalProp Q2035 4-blade

VTX 5.8G 500mW

Weight:Around 125g(without battery)

STABLE PRO F722 DUAL Gyro ICM20689

Version:

Flight Controller：

Model:STABLE PRO F7 35A

MCU: STM32F722RET6

IMU: 2x ICM20689(SPI)

BlackBox: 32Mb onboard Flash

OSD: BetaFlight OSD w/ AT7456E chip

Firmware target: EXF722DUAL

Integrated LC Filter

Size: 26x26mm board, 20mm mounting holes (M2)

ESC BLheli_32 2-6S 4in1：

MCU:STM32F051

Constant:35Amps

Burst:45Amps

Mounting Holes:20*20mm,M2

Supports Dshot1200,Proshot,Oneshot,Multishot

Current meter: Yes

Target: GEPRC-BL32-4IN1

5.8g 500mW VTX:

Input voltage: 5V

Channel: 48

Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW

Connector type: MMCX Connector

Traditional button

IRC Tramp protocol

STABLE V2 F405

Version:

Flight Controller：

Model:STABLE V2 F4 30A

MCU: F405

IMU: MPU6000 gyro/accelerometer (SPI)

OSD: BetaFlight OSD w/ AT7456E chip

Baro:NO

BEC Output: 5V@3A

Integrated LC Filter

Firmware target: OmnibusF4SD

BLheli_S ESC 2-5S 4in1：

MCU:STM32F051

Input:2-6s lipo

Constant:35Amps

Burst:45Amps

Supports Dshot1200,Proshot,Oneshot,Multishot

Current meter: Yes

Target: GEPRC-BL32-4IN1

5.8g 500mW VTX:

Input voltage: 5V

Channel: 48

Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW

Connector type: MMCX Connector

Traditional button

IRC Tramp protocol

You might need the following equipment to fly

Remote control: You can choose: Frsky X9d or something like that

Goggle: Such as FatShak V2 or something like that

Battery: The recommends using the 4S 450mAh – 650mAh battery.

Include：

– 1 x CinePro 4K

– 1 x EMAX AVON 2inch PROP(SET)

– 1 x DalProp Q2035 4-blade(SET)
