GEP BLHeli_32 G50A 4IN1 ESC｜電子變速器

GEP BLHeli_32 G50A 4IN1 ESC｜電子變速器

GEPRC 官方電子變速器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Main Feature:

Copper thickness:4OZ*4(Power Layer）+2OZ*2

MCU: STM32F051K86(32bit 48mHz)

TDK ceramic capacitors

Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot

Continuous Current: 50A

Reasonable layout, Easy installation

Specifications:

Model:GEP-BL32-G50A-4IN1-ESC

MCU: STM32F051K86(32bit 48mHz)

Continuous Current: 50A

Peak Current: 55A (5S)

BEC:NO

Current sensor: YES

Telemetry：Supported

Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot

Firmware Version:GEPRC-BL32-4IN1

Size: 43x40mm board, φ4mm with Grommets φ3mm

Mounting Holes: 30.5*30.5mm/Φ3mm

Input Voltage: 3-6S Lipo

Weight:14.5g

BLHeliSuite download:

http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

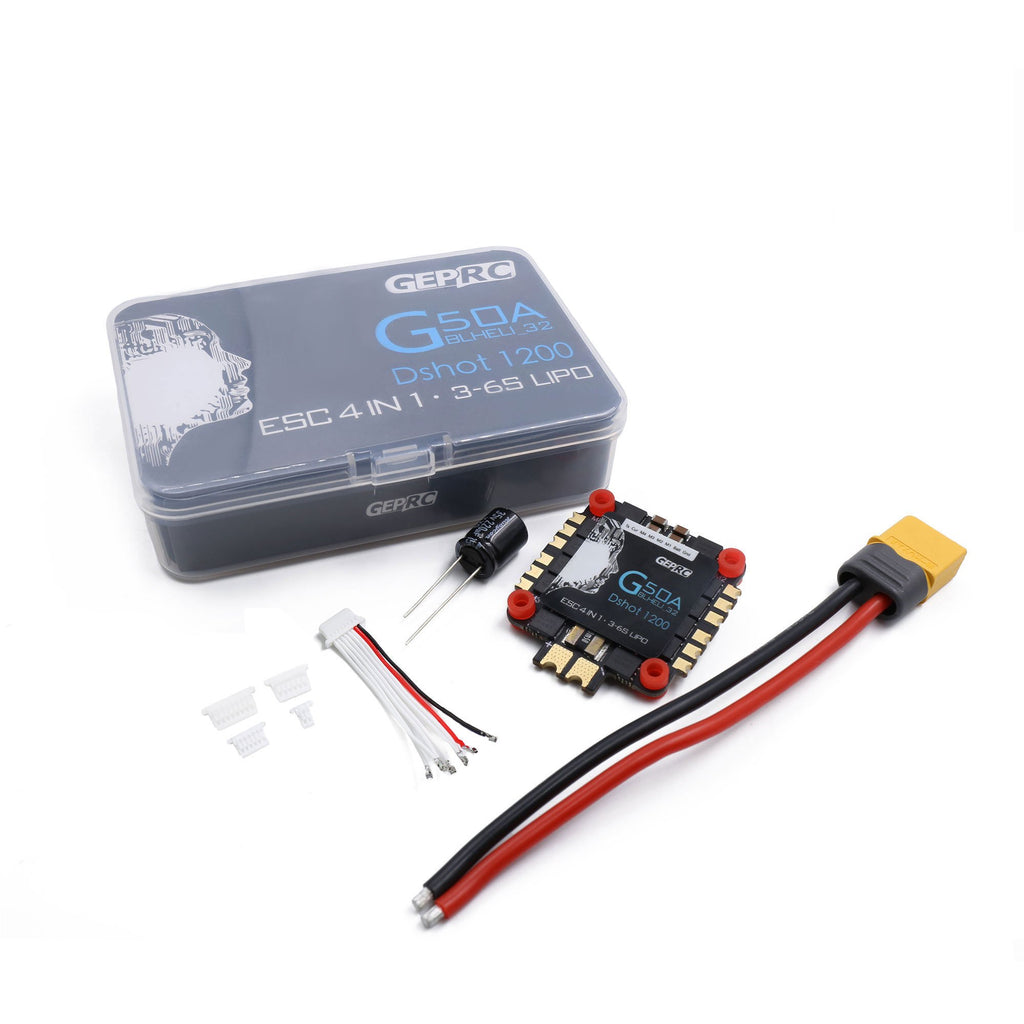

Package Included:

1x GEP-BL32-G50A-4IN1-ESC

1x 8pin cable

1x 35v 220uf Capacitor

1x XT60 Lead

4x Silicon grommets M4 to M3
