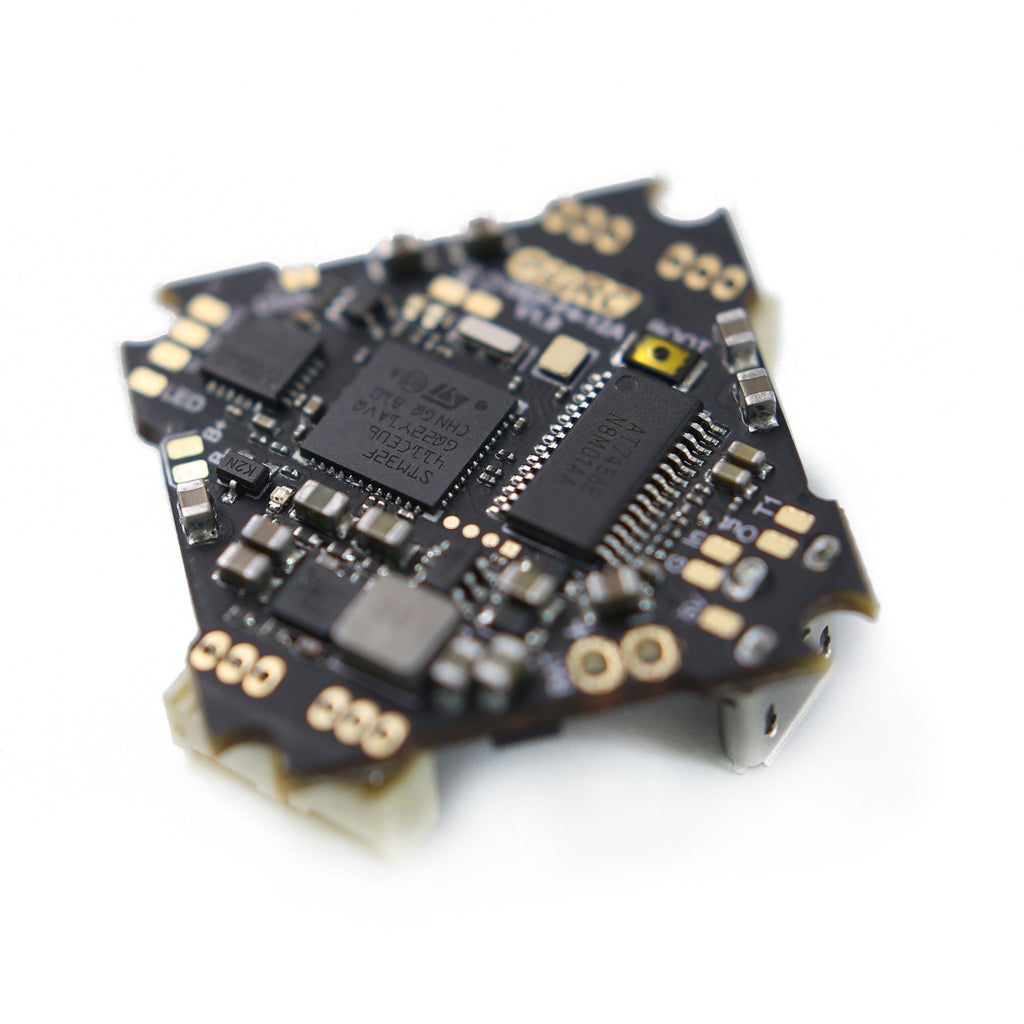

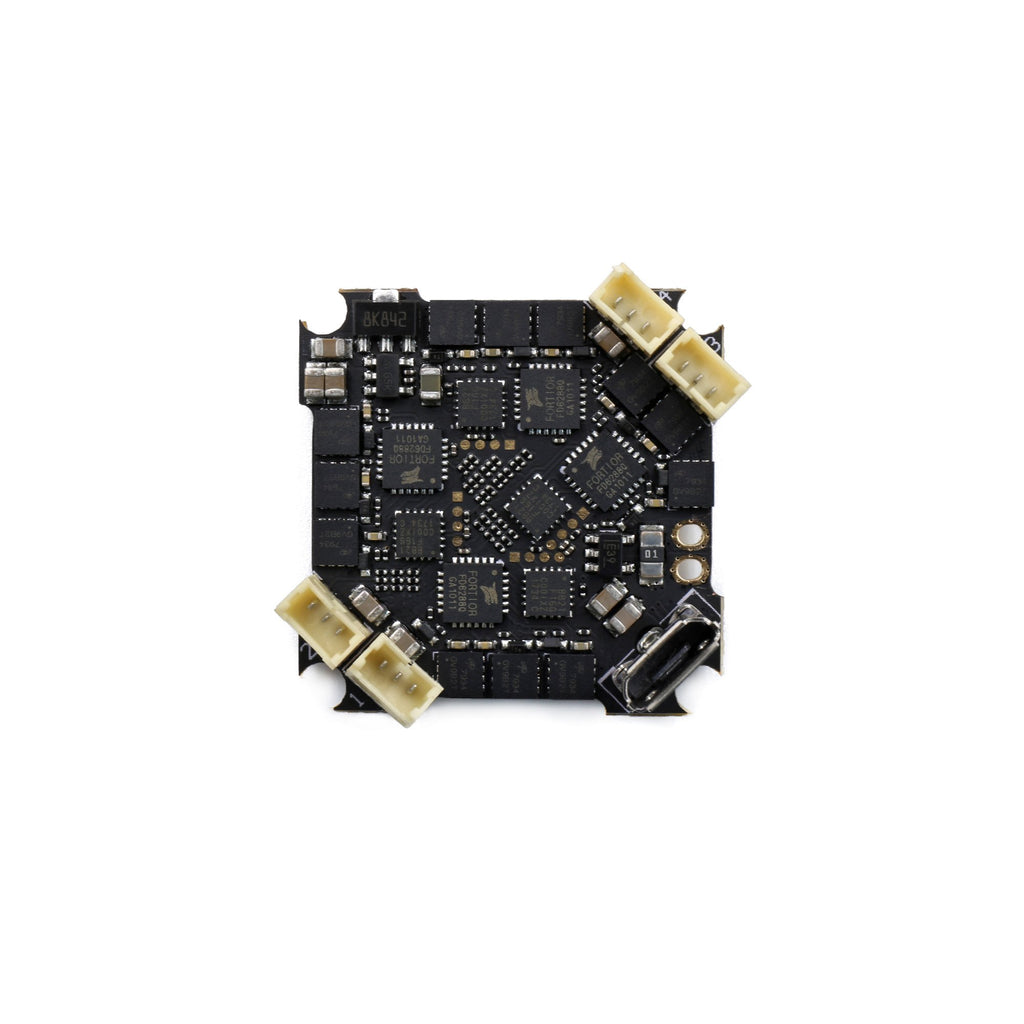

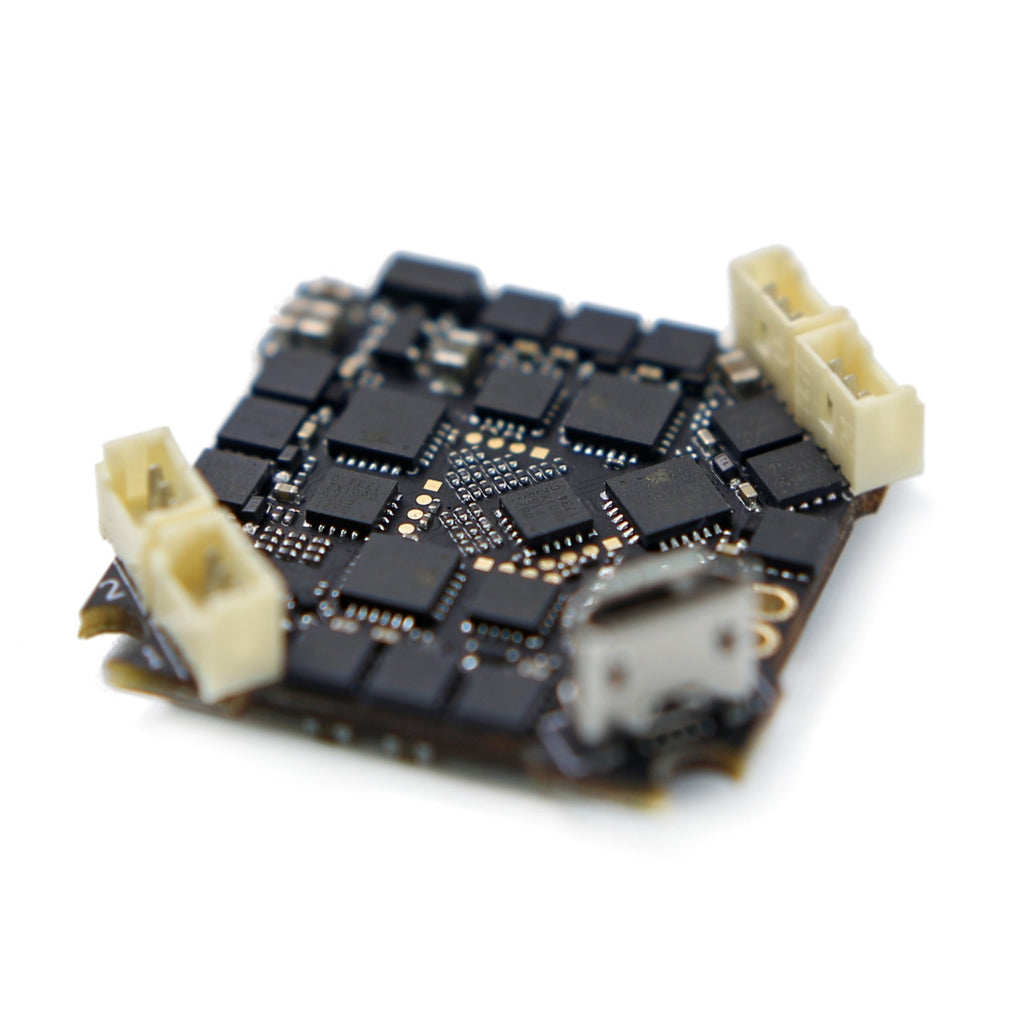

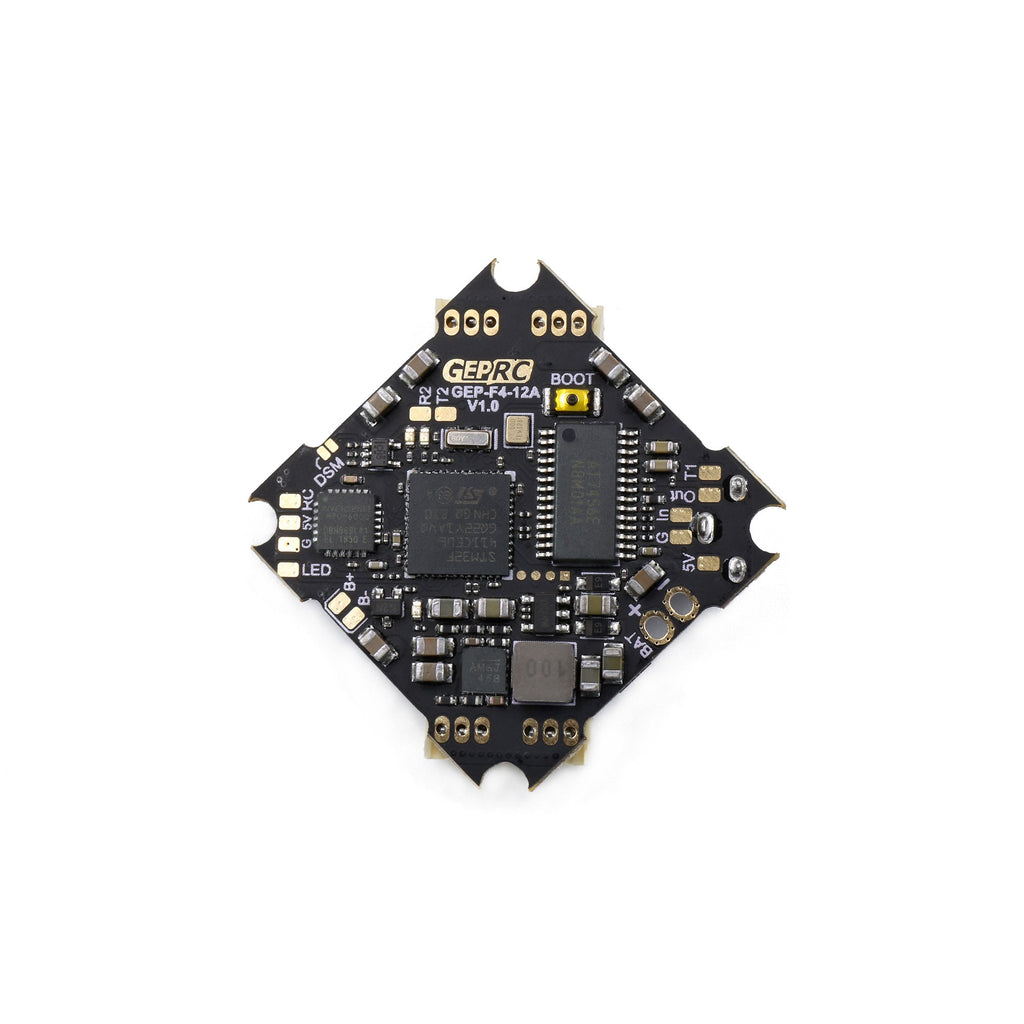

GEP-12A-F4 Flight Controller 12A ESC｜飛行控制器

GEP-12A-F4 Flight Controller 12A ESC｜飛行控制器

GEPRC 官方飛行控制器，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

Crazy, tiny indoor Quad essential flight control, 4S battery will be popular.

After six months of research, the GEP-12A-F4 is success. This is a great project, Maximum support 4S battery, perfect use of 1103-1105 motor, F4 flight control chip ensures computing speed, MPU6000 gyroscope,OSD,Easy and super light, This is a new choice for Micro indoor quad.

Changelog:

June 14th, 2022: Gyro updated to BMI270/42688

January 1, 2023: We use a new version of FC

Specifications:

Model Name:

GEP-12A-F4

MCU:

STM32F411

IMU:

BMI270/42688 gyro/accelerometer (SPI)

OSD:

BetaFlight OSD w/ AT7456E chip

Baro:

NO

BEC Output:

5V@1A

Integrated LC Filter

Firmware target:

GEPRCF411

Size:

28.5×28.5mm board,25.5mm mounting holes (M2)

Installing Hole:

25.5×25.5mm, M2

ESC MCU:

8BB21F16G

Continuous current:

12A

Input voltage:

2-4s lipo

Supports Dshot600 ,Oneshot,Multishot

Current meter:

210

Target:

G_H_30

Receiver Support:

Frsky XM/XM+/R-XSR

Futaba Receiver

DSM/DSMX

FlySky Receive

TBS Crossfire Receiver

AC900

Most receivers that support SBUS

Features:

BLheli_S 12A ESC GEP-12A-F4 the largest support 4S Lipo battery, with Current meter

Silica gel shock absorption, solve the problem of vibration

F411 Flight Controller

BMI270/42688 Gyro

Include Buzzer pad

weight: 5.6g

Include：

– 1 x GEP-12A-F4

– 1 x Power cable

– 8 x screw

– 4 x Soft silicone
