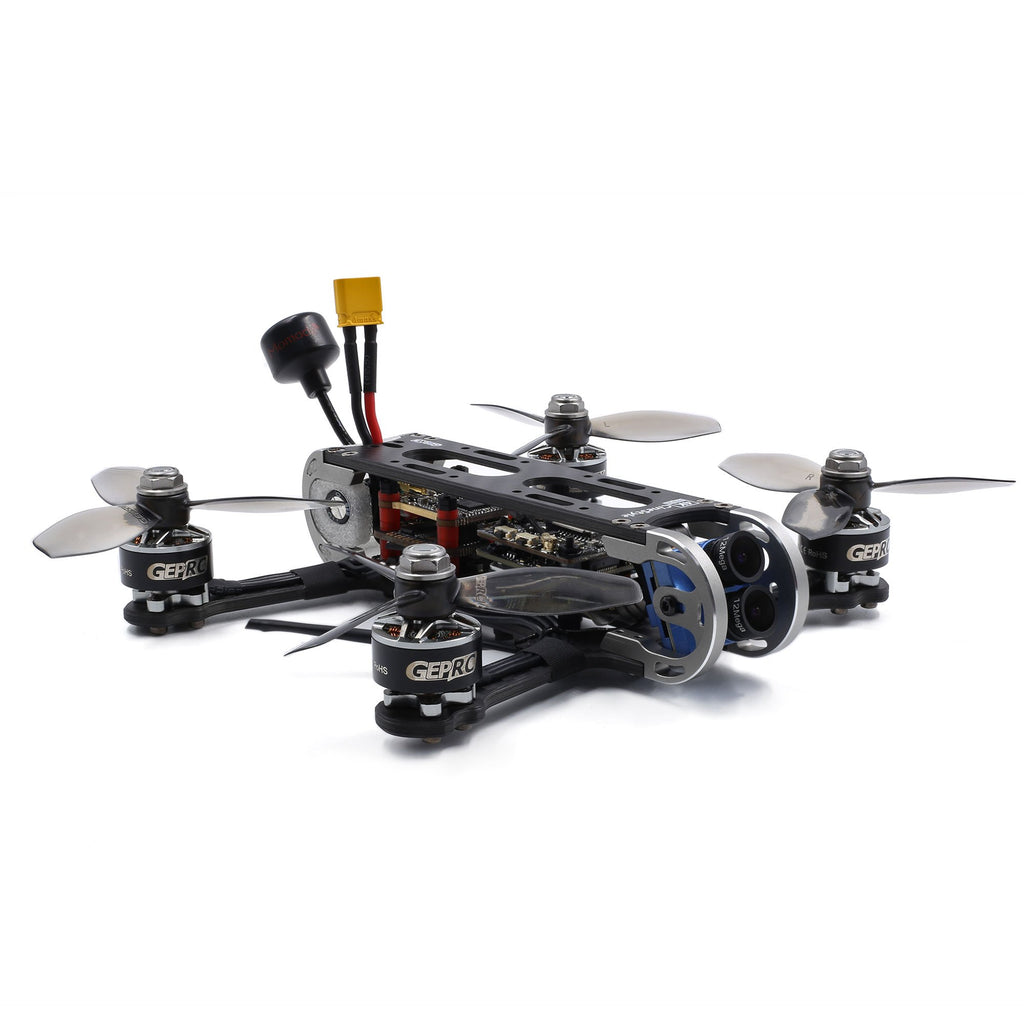

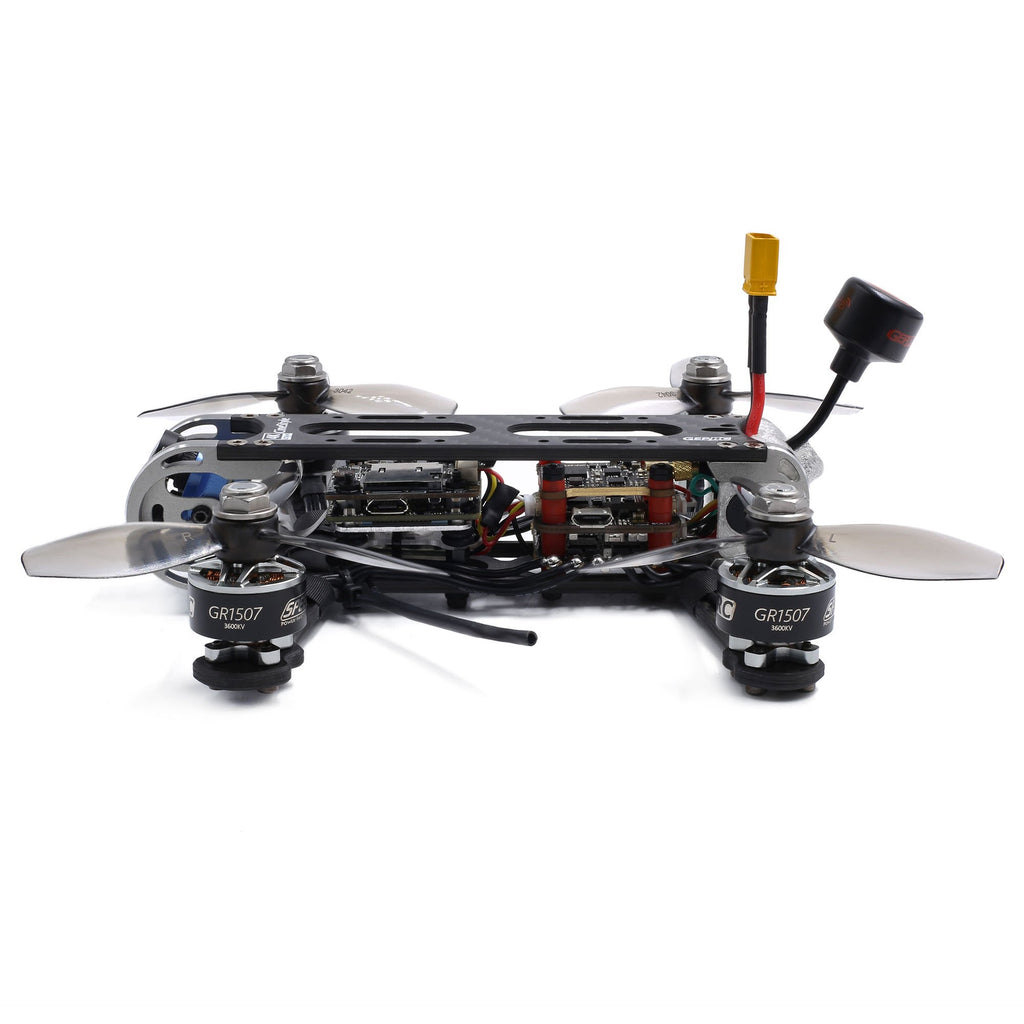

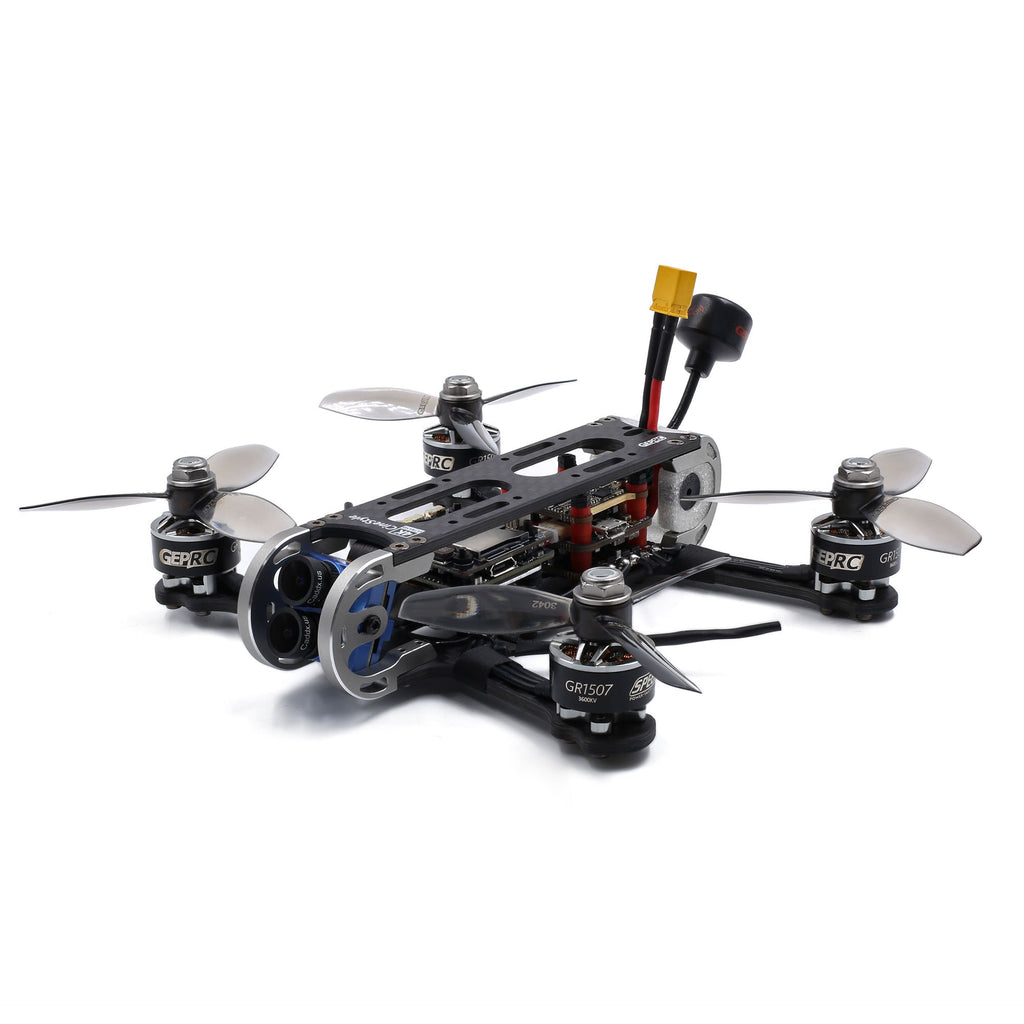

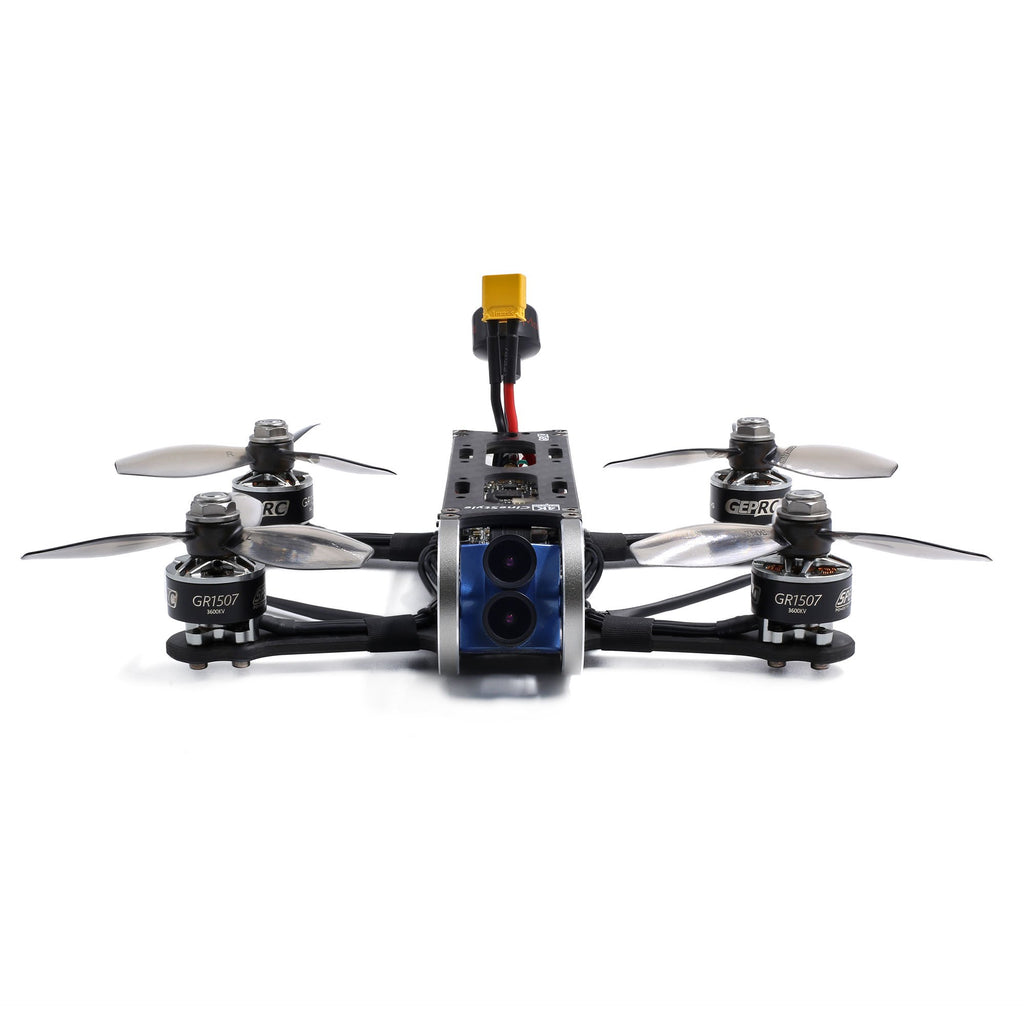

CineStyle 4K F722｜FPV 穿越機

CineStyle 4K F722｜FPV 穿越機

GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Features:

No Props in the view.

HD Video Recording: 4K@30fps, 2.7K@60fps, 1080P@90fps.

Dual Camera System: 1200TVL FPV camera of competition-level, low latency within 10ms.

WIFI/APP support: Video recording parameters are adjustable by WIFI/APP.

F722 Flight Controller, STABLE PRO F722 DUAL BL32 35A.

Black Box: 32Mb onboard flash memory.

500mW VTX Power: Effectively improves your flight distance.

Aerial Photography Friendly: No sight of propellers and propeller protection frames in your video.

Full Soft Mounted FC System: Provides a clean operating environment for gyro.

Say Goodbye to Jelly: Stable video, and comfortable FOV.

Improved GEP-CX2 Frame: Full 3K carbon fiber, 7075 aviation aluminum, High-precision CNC. Rugged and durable frame, Better protection for the 4K camera.

New Propeller Guard: Better airflow, Higher flight efficiency.

High Efficiency Motor: GEP-GR1507 3600KV Motors, 4S battery (850mAh) recommended.

Taillight Design: Eye-catching night view and lighting effects.

Exquisite Assembly Process: Eliminate any potential installation problems.

Specification:

Frame:GEP-CX3(Improved version,Including Guards)

STABLE PRO F722 DUAL Gyro ICM20689

Camera:

Caddx Tarsier 4K 1200TVL

Motor:GEP-GR1507 3600KV

Propeller:GEP3042-3

VTX 5.8G 500mW

Weight:Around 163g(without battery)

Flight Controller：

Model:STABLE PRO F7 35A

MCU: STM32F722RET6

IMU: 2x ICM20689(SPI)

BlackBox: 32Mb onboard Flash

OSD: BetaFlight OSD w/ AT7456E chip

Firmware target: EXF722DUAL

Integrated LC Filter

Size: 26x26mm board, 20mm mounting holes (M2)

ESC BLheli_32 2-6S 4in1：

MCU:STM32F051

Constant:35Amps

Burst:45Amps

Mounting Holes:20*20mm,M2

Supports Dshot1200,Proshot,Oneshot,Multishot

Current meter: Yes

Target: GEPRC-BL32-4IN1

5.8g 500mW VTX:

Input voltage: 5V

Channel: 48

Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW

Connector type: MMCX Connector

Traditional button

IRC Tramp protocol

You might need the following equipment to fly

Remote control: You can choose: Frsky X9d or something like that

Goggle: Such as FatShak V2 or something like that

Battery: The recommends using the 4S 850mAh battery.

Include：

1 x CineStyle 4K F722 Quadcopter

10 x GEP-3042 Props(Pairs)

3x Battery strap

1x Momoda RHCP SMA Antenna(using Received signal)
