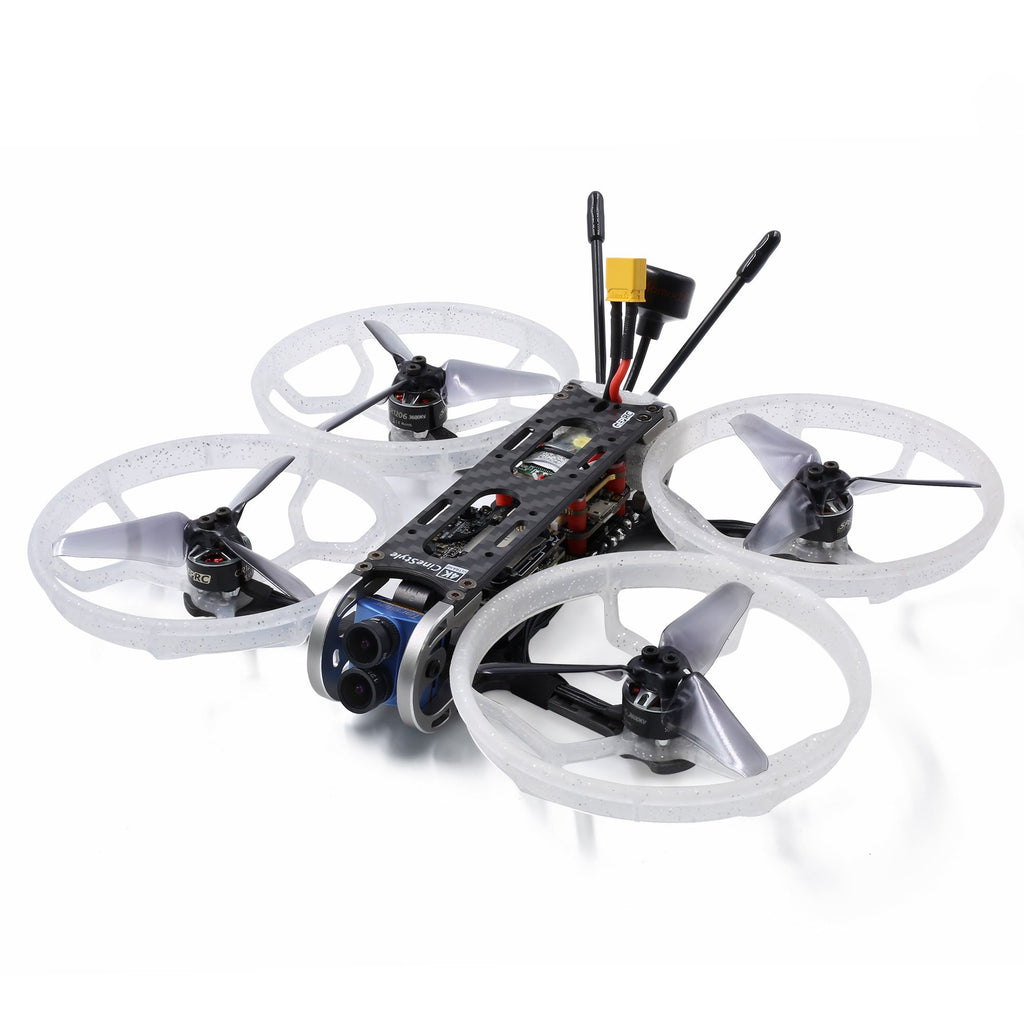

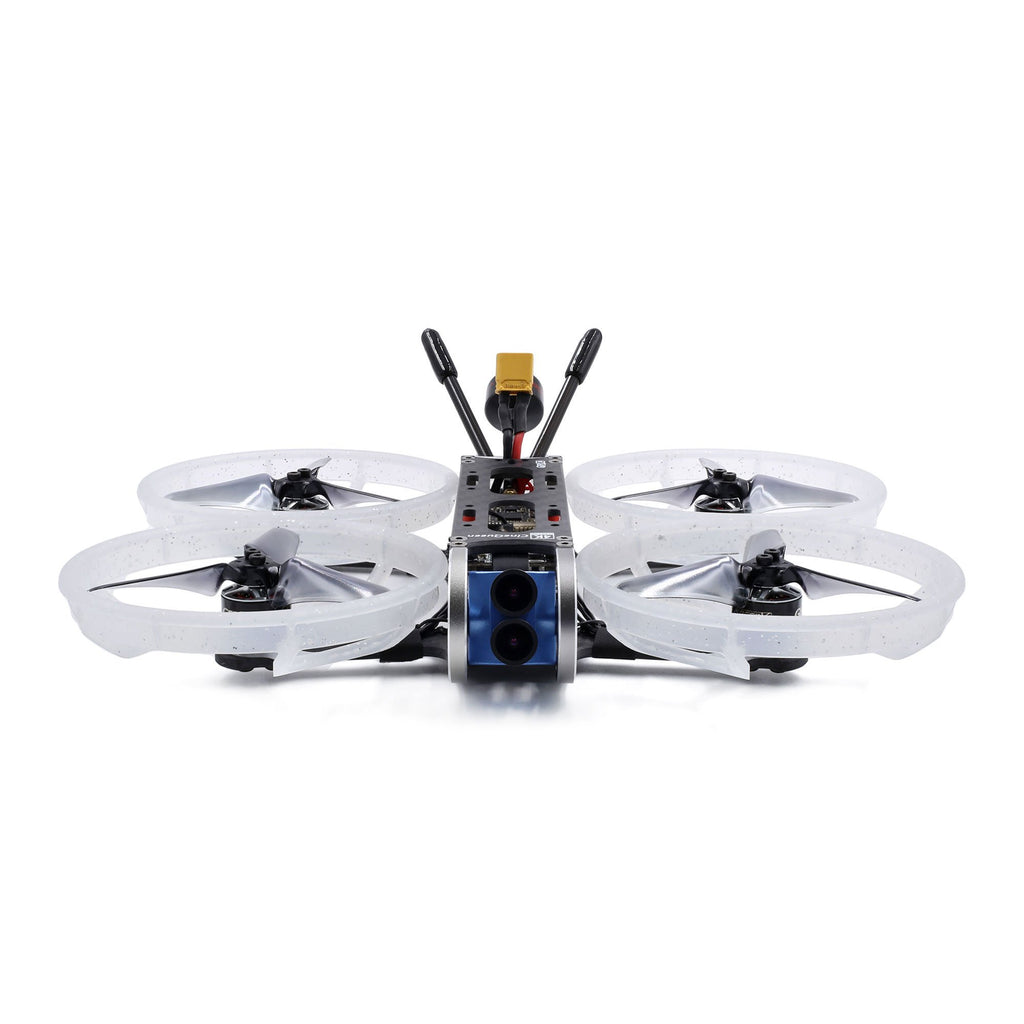

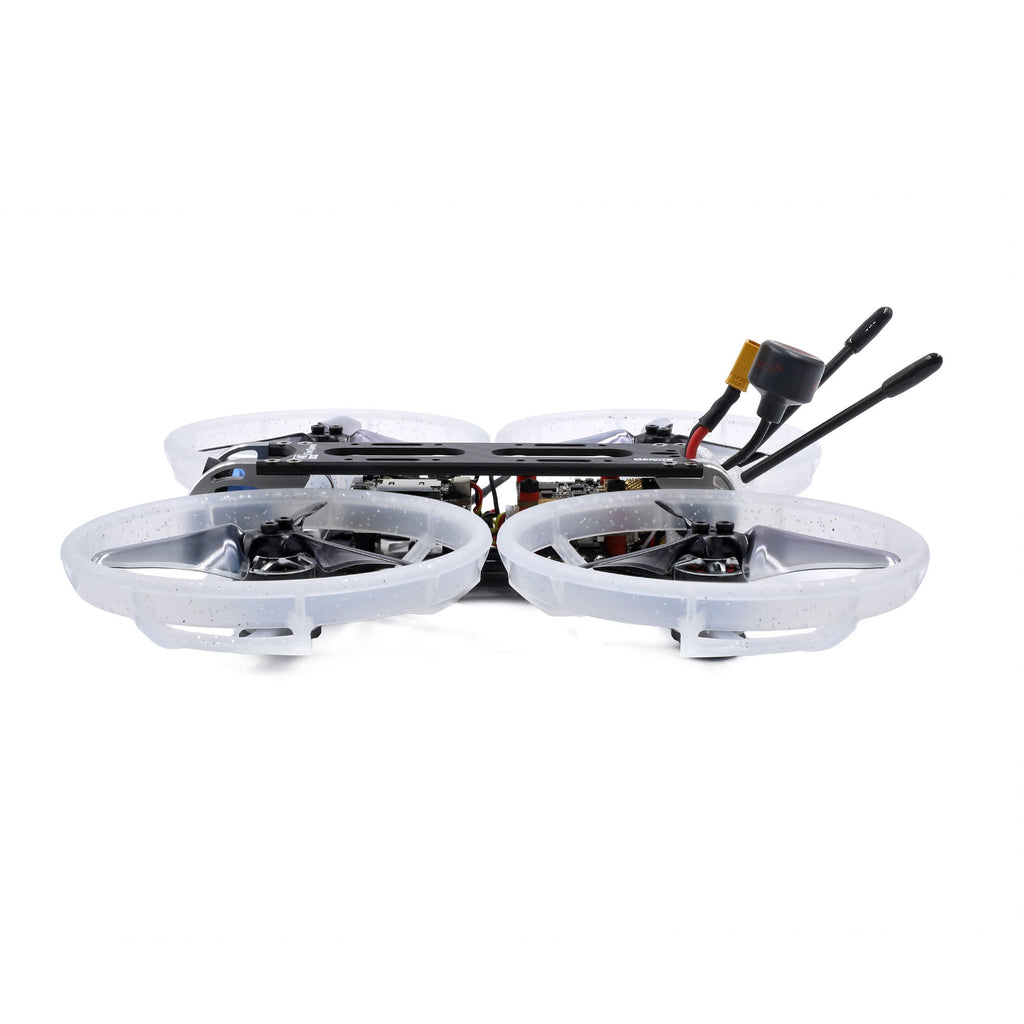

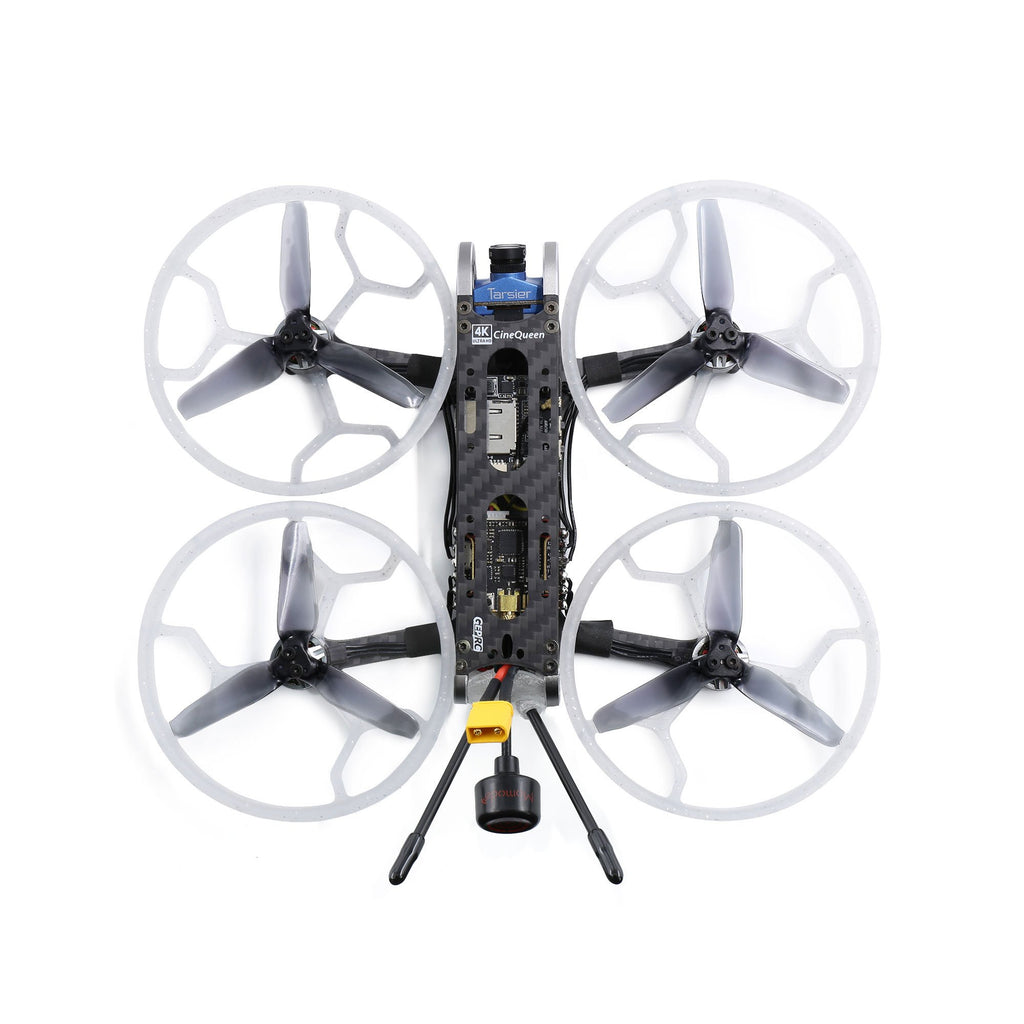

CineQueen 4K 3inch Tarsier V2 CineWhoop｜FPV 穿越機

CineQueen 4K 3inch Tarsier V2 CineWhoop｜FPV 穿越機

GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Features:

HD recording no propellers in view

3-inch propeller with guard(New Propeller Guard: Better airflow, higher flight efficiency).

Runcam Hybrid 4K Video Recording: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps

Dual Camera System: True 145° Wide Angle 4K HD & FPV Camera.

STABLE V2 F4 30A SYSTEM.

500mW VTX Power: Effectively improves your flight distance.

Full Soft Mounted FC System: Provides a clean operating environment for gyro.

Say Goodbye to Jelly: Stable video, and comfortable FOV.

Improved GEP-CX3 Frame: Full 3K carbon fiber, 7075 aviation aluminum, High-precision CNC. Rugged and durable frame, Better protection for the 4K camera.

New Propeller Guard: Better airflow, Higher flight efficiency.

High Efficiency Motor: GEP-GR1206 3600KV Motors.

Taillight Design: Eye-catching night view and lighting effects.

Exquisite Assembly Process: Eliminate any potential installation problems.

Specification:

Model Name: CineQueen 4K

SYSTEM:

STABLE V2 F4 30A

Camera:

Caddx Tarsier V2 4K

Motor:GEP-GR1206 3600KV

Propeller:AVAN Mini 3×2.4×3 (3 blades)

VTX 5.8G 500mW

Antenna:

Momoda 5.8G RHCP

Input Battery: 3-4S(4S 650mAh – 4S 850mAh)

Receiver option：Frsky XM+ / Frsky R-XSR / TBS NanoRX / FlySky A8SV2

Weight:156g(without battery)

Propellers:AVAN Mini 3 inch Propeller 3×2.4×3

Frame:

Frame Model:GEP-CQ3(Improved version,Including Guards)

Full 3K carbon fiber

Wheelbase:145mm

#7075 Aviation aluminum CNC

High efficiency 3-inch guard

Top plate thickness:3mm

Bottom plate thickness:3mm

Electronic System

:

STABLE V2 F4 Flight Controller Specs

：

MCU: F405

IMU: MPU6000 gyro/accelerometer (SPI)

OSD: BetaFlight OSD w/ AT7456E chip

Baro:NO

BEC Output: 5V@3A

Integrated LC Filter

Firmware target:

OmnibusF4SD

STABLE V2 F4 ESC 4in1 Specs

：

Constant:30Amps

Burst:35Amps

Supports Dshot600,Proshot,Oneshot,Multishot

Current meter: Yes

Target: G_H_30

STABLE F4 5.8g 500mW VTX Specs:

Channel: 48

Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW

Connector type: MMCX Connector

Traditional button

IRC Tramp protocol

STABLE F4 Manual:

GEPRC-STABLE-V2-F4-MANUAL-V1_0.pdf

Caddx Tarsier 4K:

Manual

Include：

1 x CineQueen 4K Hybrid Quadcopter
