CineKing 4K RunCam Hybrid｜FPV 穿越機

$3,067.00

規格 receiver-option: PNP(Without Receiver) receiver-option: Frsky XM+ receiver-option: Frsky R-XSR receiver-option: Flysky FS-A8S V2 receiver-option: TBS Crossfire Nano RX

付款方式全額付款訂金預購

商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。

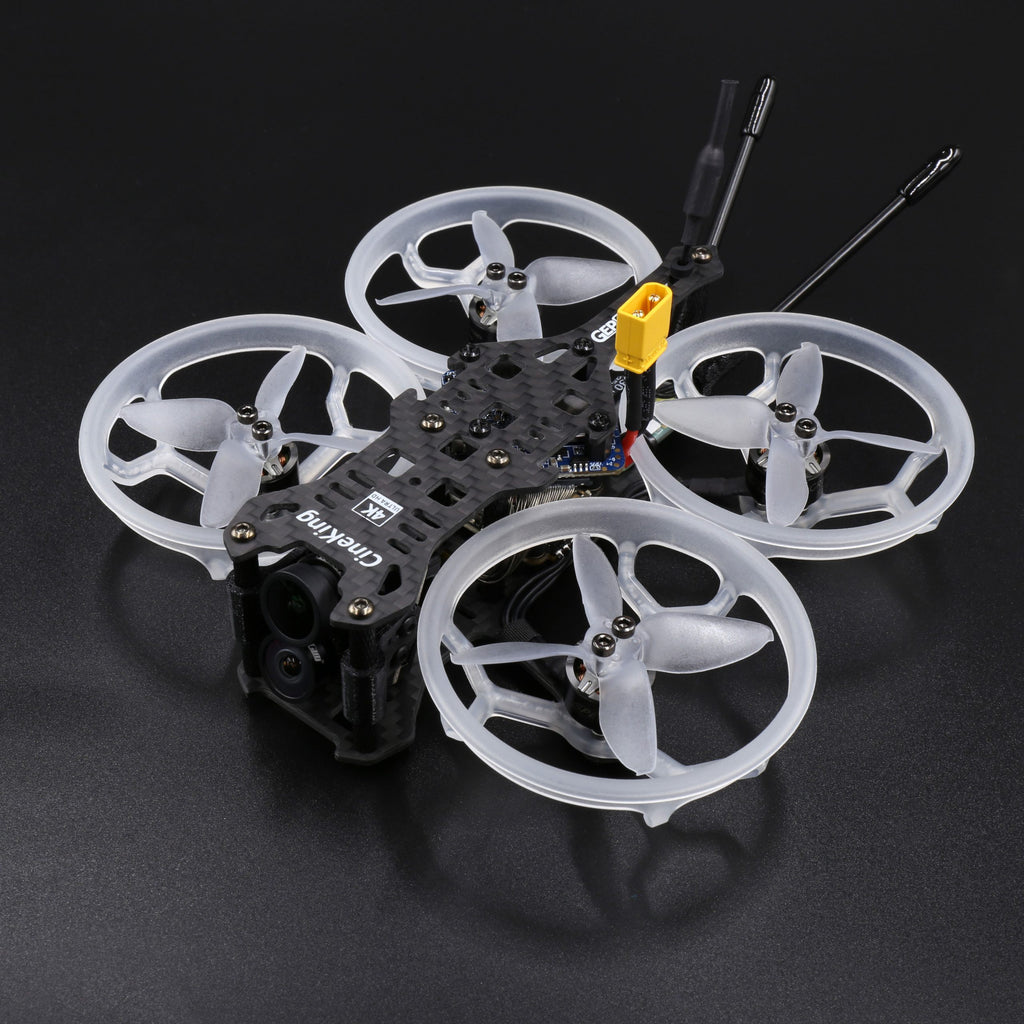

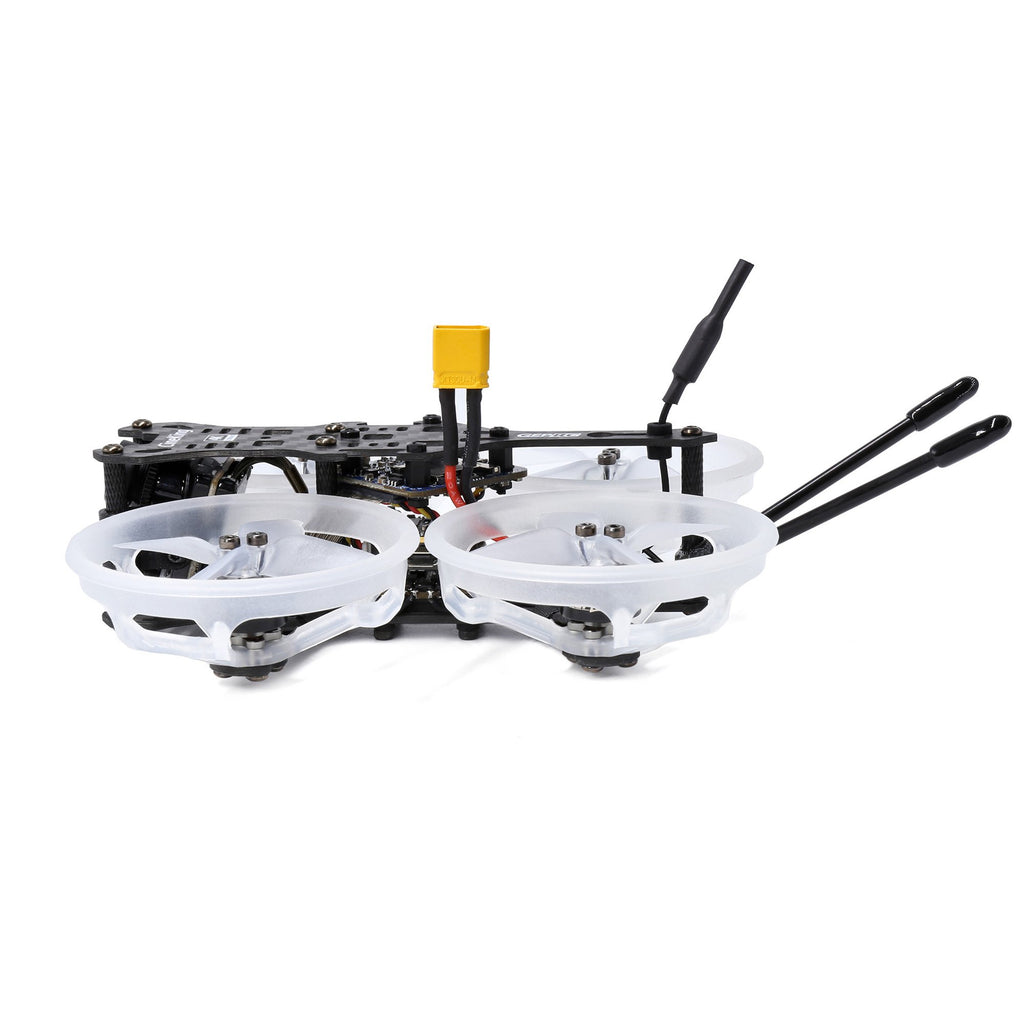

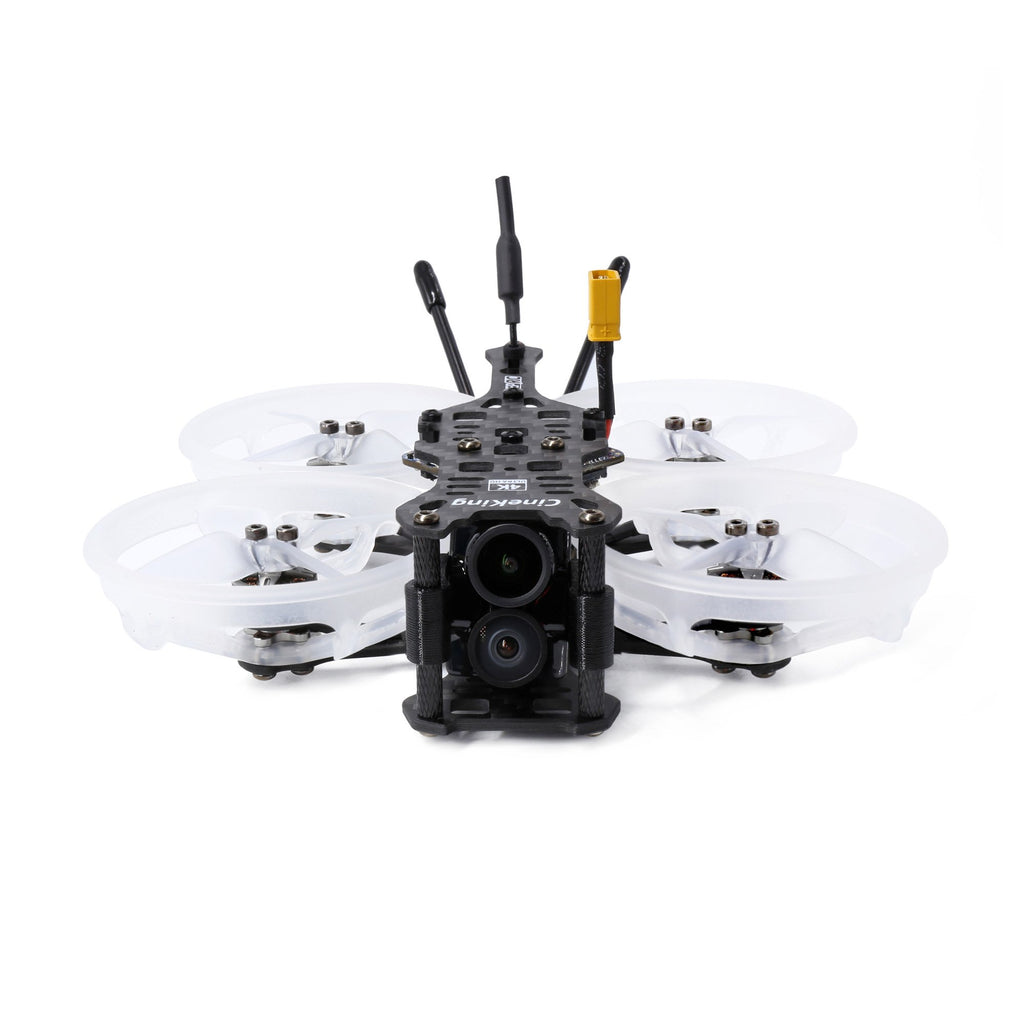

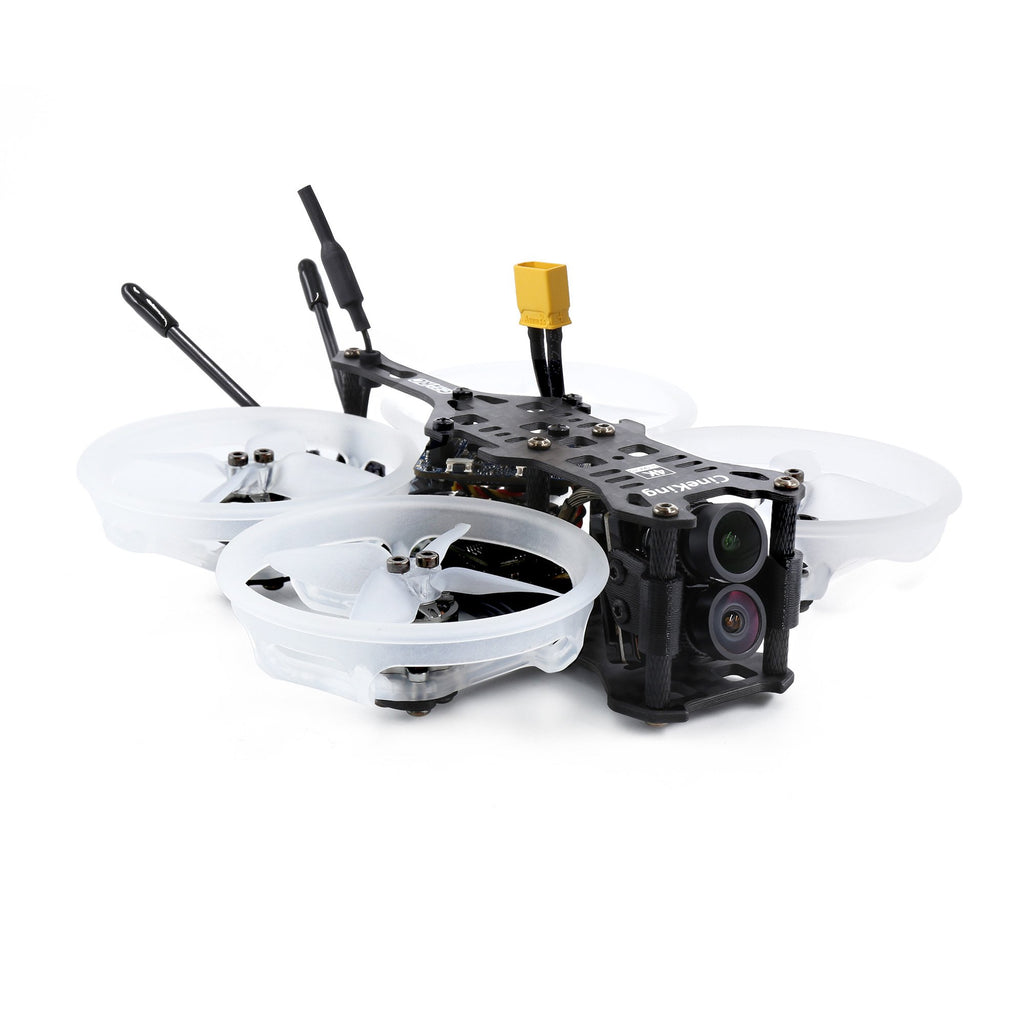

CineKing 4K RunCam Hybrid｜FPV 穿越機

GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

CineKing 4K has been able to complete the shooting task with great success. This time, the Runcam Hybrid 4K version can be added to meet the needs of different customers.

We are pleased to introduce CineKing 4K to you, a lightweight and compact quad which can accomplish some tasks that traditional aerial photographic aircraft can not accomplish, with capability of shooting beautiful and moving film up to 4K 30fps.

CineKing is mainly for indoor shooting, not only aerial photography, but also through obstacles, competitions, etc. The propeller protection is very safe. It has good airflow, safety, durability, and high efficiency, without fear that the propeller will harm people.

CineKing is carefully assembled and tested by the GEPRC team. When you get the BNF suite, you can bing and fly.For PNP suite, you need a sbus reciever of your own.

Changelog:

May 2022: Gyroscope changed from MPU6000(SPI) to 6-Axis.

Features:

Runcam Hybrid HD Video Recording: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps

Dual Camera System: True 145° Wide Angle 4K HD & FPV Camera

New Propeller Guard: Better airflow, higher flight efficiency.

Using STABLE F411 electronic system, which is very stable.

Full Soft Mounted FC System: Provides a clean operating environment for gyro.

Say Goodbye to Jelly: Stable video and comfortable FOV.

The newly designed GEP-CK2 frame has a more reasonable layout.

Aerial Photography Friendly: No sight of propellers and propeller protection frames in your video.

Exquisite Assembly Process: Eliminate any potential installation problems.

Fine pre-tuned PIDs by GEPRC team, you can bind and fly.

Specifications:

Model：CineKing

Frame：GEP-CK2

Wheelbase：95mm

FC：

STABLE F411 SYSTEM

Camera：

RunCam Hybrid 4K

Propeller：2inch

Receiver option：Frsky XM+/ Frsky R-XSR//TBS Nano SE/FlySky

Motors：

GR1105 5000KV

Recommend battery：3-4S 450-550mAh Battery

Weight：4s version 99g（Without battery）

Specifications(Runcam Hybrid 4K):

HD sensor:SONY 8MP

Analog sensor:SONY 1.3MP

Field of View (FOV):HD Recording FOV 145°(FPV FOV 150° @ 4: 3)

Video Resolution:4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps

TV Mode:NTSC (720*480)/PAL (720*576) Switchable

Interface:HD supports UART remote control; FPV(Analog) supports UART fimrware update.

Lens Specs: HD Lens : M10 FPV Lens : M8

Power Input:DC 5-20V (Non-direct power supply from 4s battery or above. Powered directly with battery will generate surges and burn the camera.)

Working Current:480mA @5V / 140mA @12V

Max Micro SD Card Supported: Up to 128G. U3 recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is FAT32, otherwise, it will easily cause errors.

Runcam Hybrid 4K:

Manual

STABLE F411 Micro System:

STABLE F411 Flight Controller

(16*16mm)

MCU: STM32F411

Gyro: 6-Axis

OSD: BetaFlight OSD w/ AT7456E chip

BEC Output: 5V@2A

Size: 21mm*21mm

Mounting holes: 16mm*16mm

Integrated LC Filter
