GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

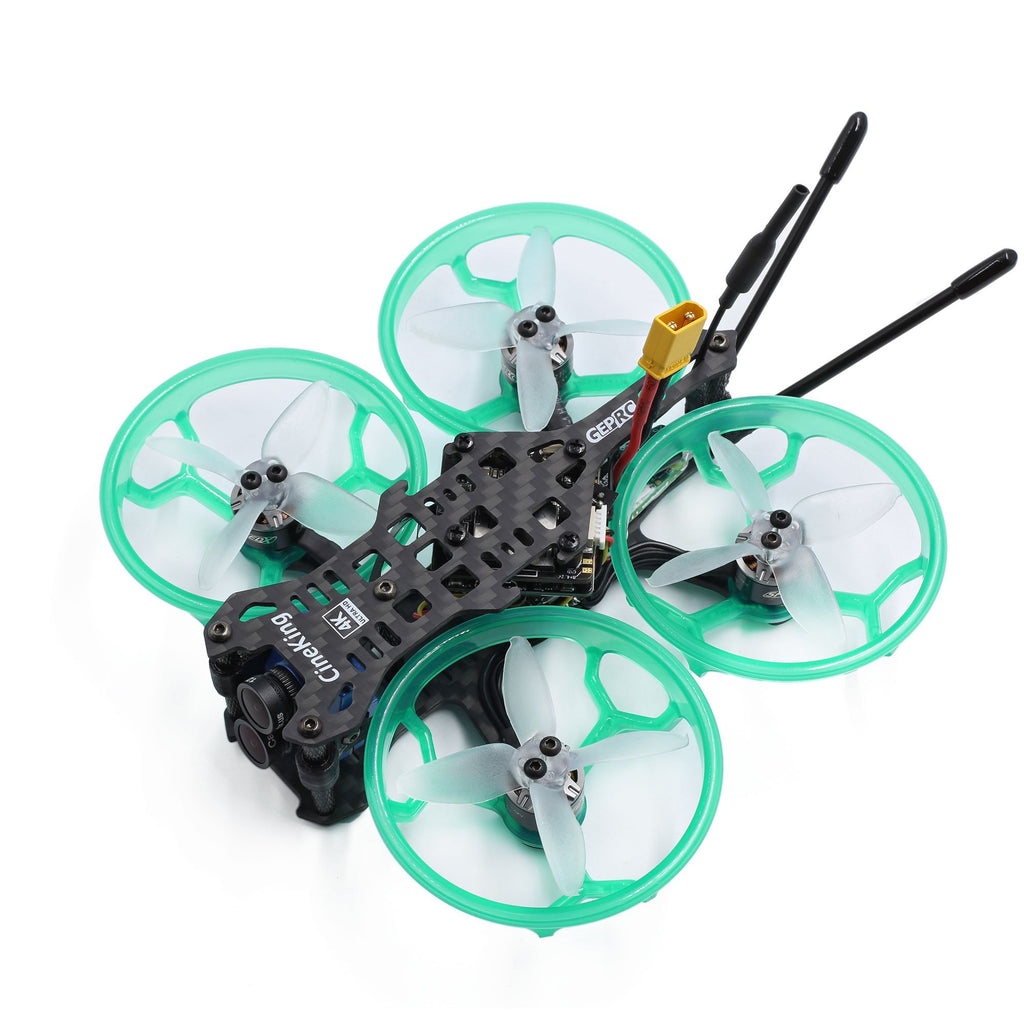

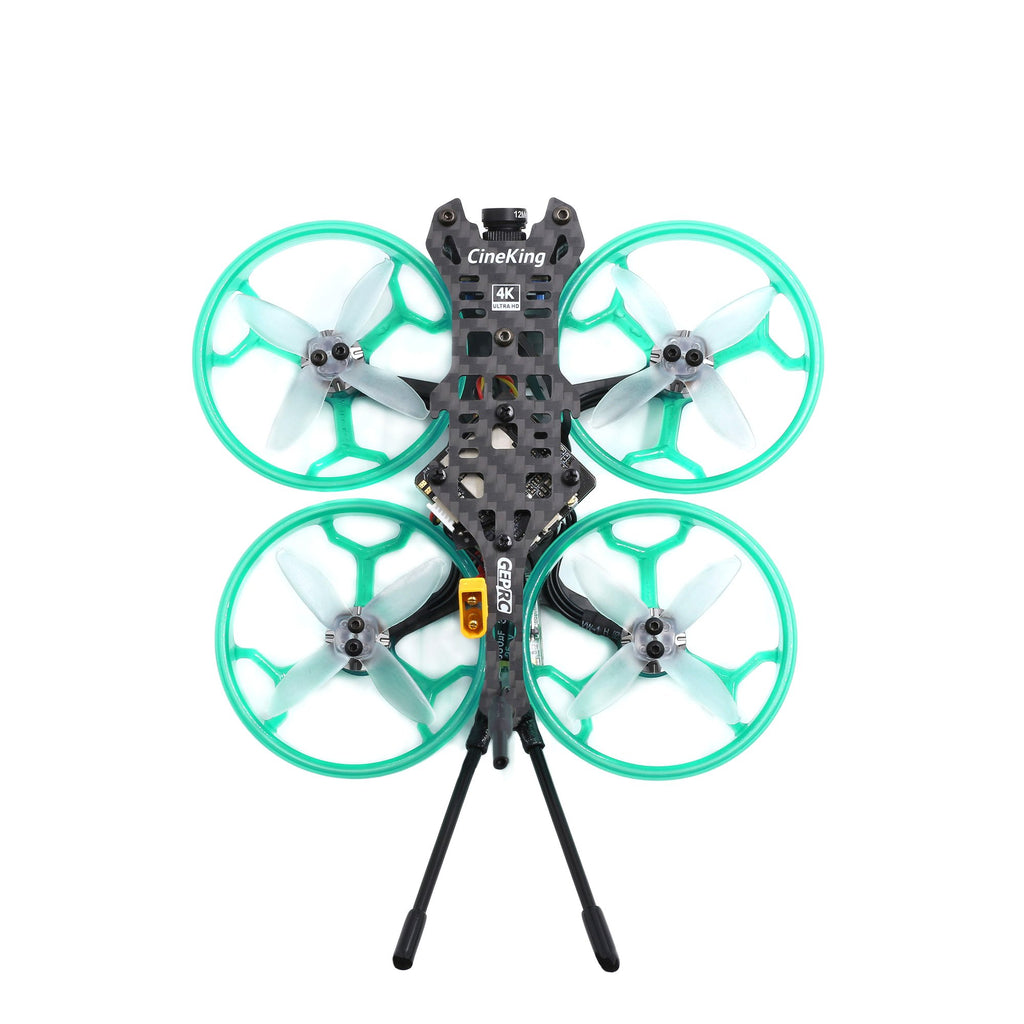

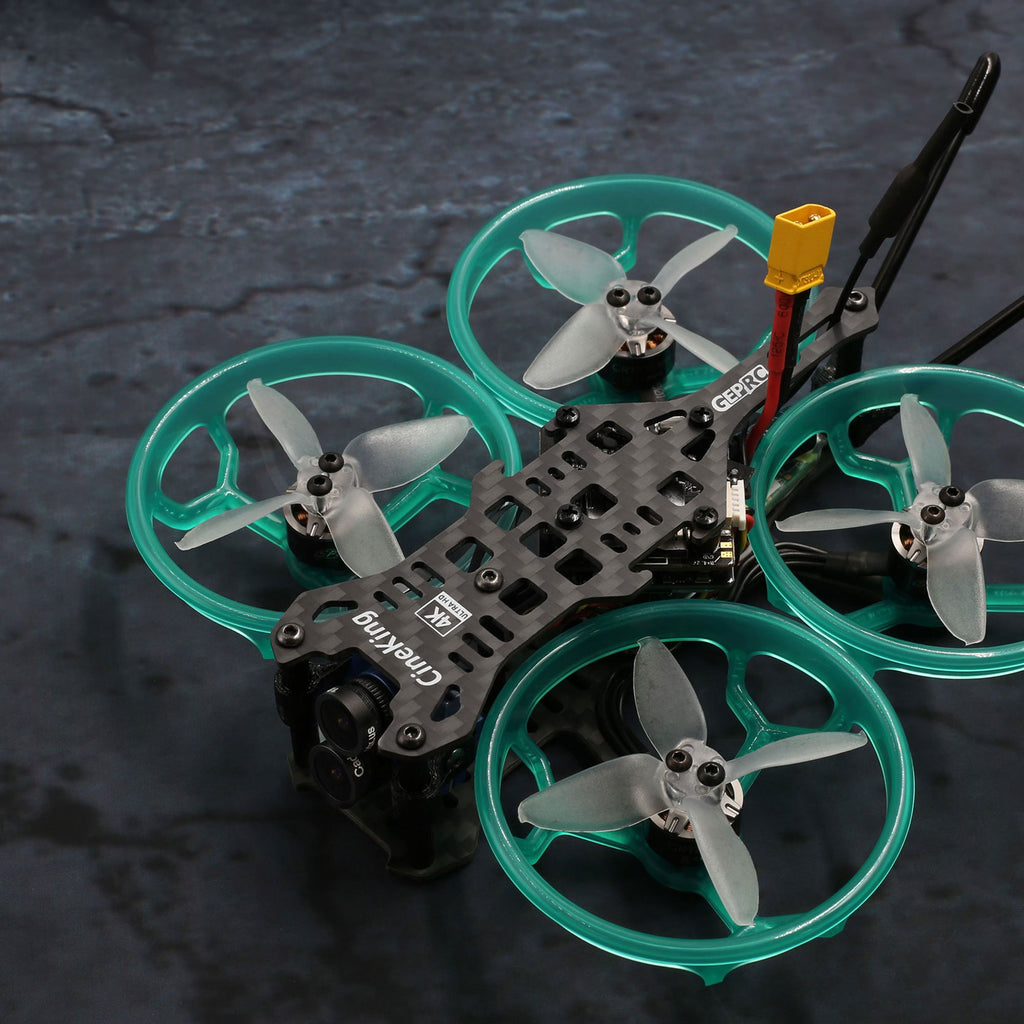

We are pleased to introduce CineKing 4K to you, a lightweight and compact quad which can accomplish some tasks that traditional aerial photographic aircraft can not accomplish, with capability of shooting beautiful and moving film up to 4K 30fps.

CineKing is mainly for indoor shooting, not only aerial photography, but also through obstacles, competitions, etc. The propeller protection is very safe. It has good airflow, safety, durability, and high efficiency, without fear that the propeller will harm people.

We redesigned the frame of CineKing, which is very compact and flexible at 95mm wheelbase. The weight of GR1103 motor 2S version is about 89g. It can cross obstacles very flexibly and complete some difficult aerial photography actions. CineKing has opted for an electronic system called STABLE F411, which is lighter and runs stably.

On the power side, CineKing is equipped with GR1103 8000KV (2S battery) and GR1105 5000kv (4S battery) motors, compatible with 3-4s power supply. 3S is suitable for indoor shooting, 4S has stronger wind resistance and power.

CineKing is carefully assembled and tested by the GEPRC team. When you get the BNF suite, you can bing and fly.For PNP suite, you need a sbus reciever of your own.

Features:

HD Video Recording: 4K@30fps, 2.7K@60fps, 1080P@90fps.

Dual Camera System: 1200TVL FPV camera of competition-level, low latency within 10ms.

WIFI/APP support: Video recording parameters are adjustable by WIFI/APP.

New Propeller Guard: Better airflow, higher flight efficiency.

Using STABLE F411 electronic system, which is very stable.

Full Soft Mounted FC System: Provides a clean operating environment for gyro.

Say Goodbye to Jelly: Stable video and comfortable FOV.

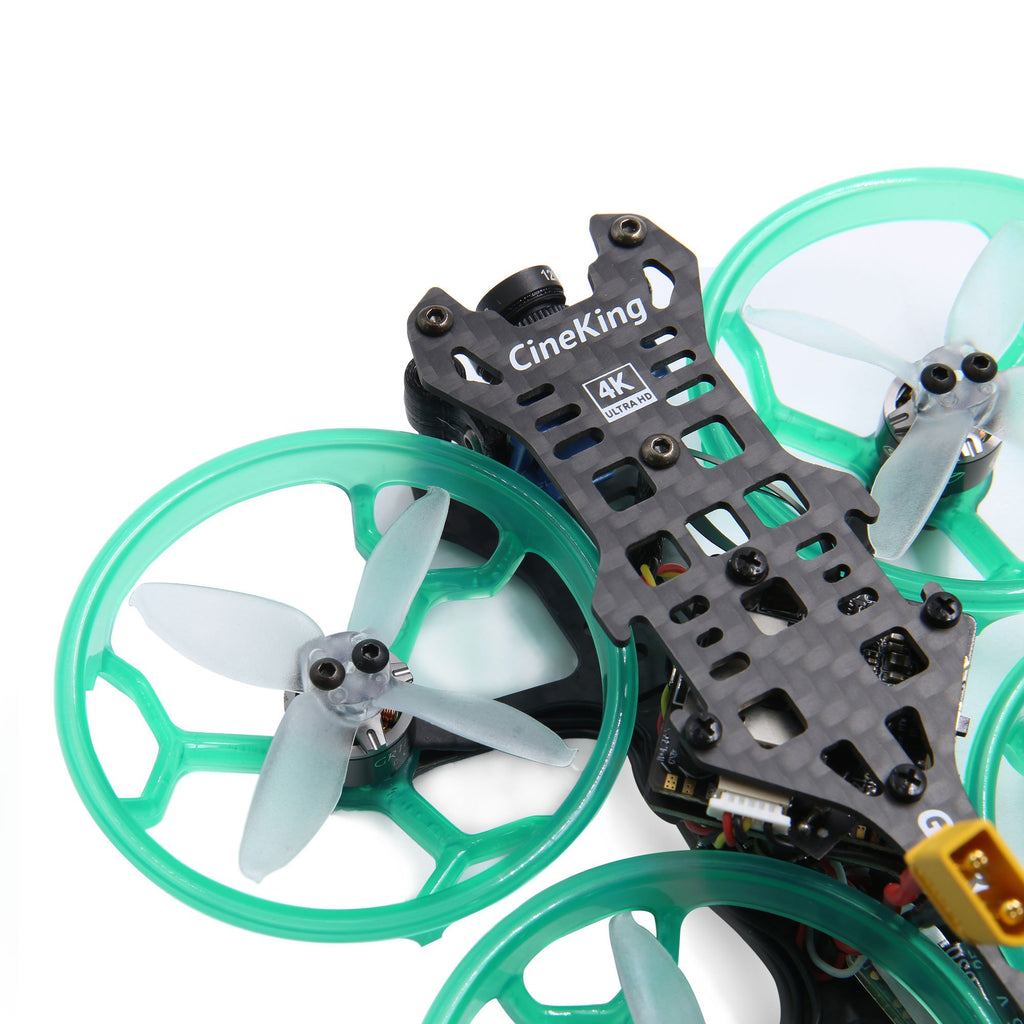

The newly designed GEP-CK2 frame has a more reasonable layout.

Aerial Photography Friendly: No sight of propellers and propeller protection frames in your video.

There are 2S and 4S versions to meet different flight requirements.

Taillight Design: Eye-catching night view and lighting effects.

Exquisite Assembly Process: Eliminate any potential installation problems.

Fine pre-tuned PIDs by GEPRC team, you can bind and fly.

Specifications:

Model：CineKing

Frame：GEP-CK2

Wheelbase：95mm

FC：STABLE F411 SYSTEM

Camera：

Caddx Tarsier 4K 1200TVL(V2)

Propeller：2inch

Receiver option：Frsky XM+/ Frsky R-XSR/ Frsky R9mm/TBS Nano SE/DSMX/Futaba/FlySky

CineKing 1103:

Motors：GR1103 8000KV

Recommend battery：2S 650mAh Battery

Weight：2S version 88g（Without battery）

CineKing 1105:

Motors：GR1105 5000KV

Recommend battery：3-4S 450-550mAh Battery

Weight：4s version 98g（Without battery）

STABLE F411 Micro System:

STABLE F411 Flight Controller(16*16mm)

MCU: STM32F411

IMU: MPU6000 gyro/accelerometer (SPI)

OSD: BetaFlight OSD w/ AT7456E chip

BEC Output: 5V@2A

Size: 21mm*21mm

Mounting holes: 16mm*16mm

Integrated LC Filter

Input voltage 2-4S LIPO

Firmware target: MATEKF411

STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)

MCU: BB21F16G

Continuous current: 12A

Input voltage : 2-4S LIPO

ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.

Size: 23mm*21mm

Mounting hole 16*16mm

Firmware target: Blheli_S G_H_30

Current meter: 210

STABLE F411 VTX 5.8G 200mW(16*16mm)

Power : PIT/25/100/200mW

Antenna interface : IPEX (UFL)

Telemetry: IRC Tramp

Size: 17mm*27mm

Mounting holes: 16*16mm

Integrated LC Filter

Include：

-1 x CineKing Quadcopter
