CineGO HD FPV｜FPV 穿越機
CineGO HD FPV｜FPV 穿越機
此選項為一次支付商品全額。完成付款後，我們將依商品庫存及訂單順序安排出貨。
此選項為支付商品總價三分之一作為訂金。庫存補充後，我們將通知您支付剩餘尾款，完成尾款付款後安排出貨。
商品價格與庫存以實際確認為準；如遇缺貨或價格異常，我們將主動聯絡並提供退款或取消訂單。
CineGO HD FPV｜FPV 穿越機
GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。
Summary:

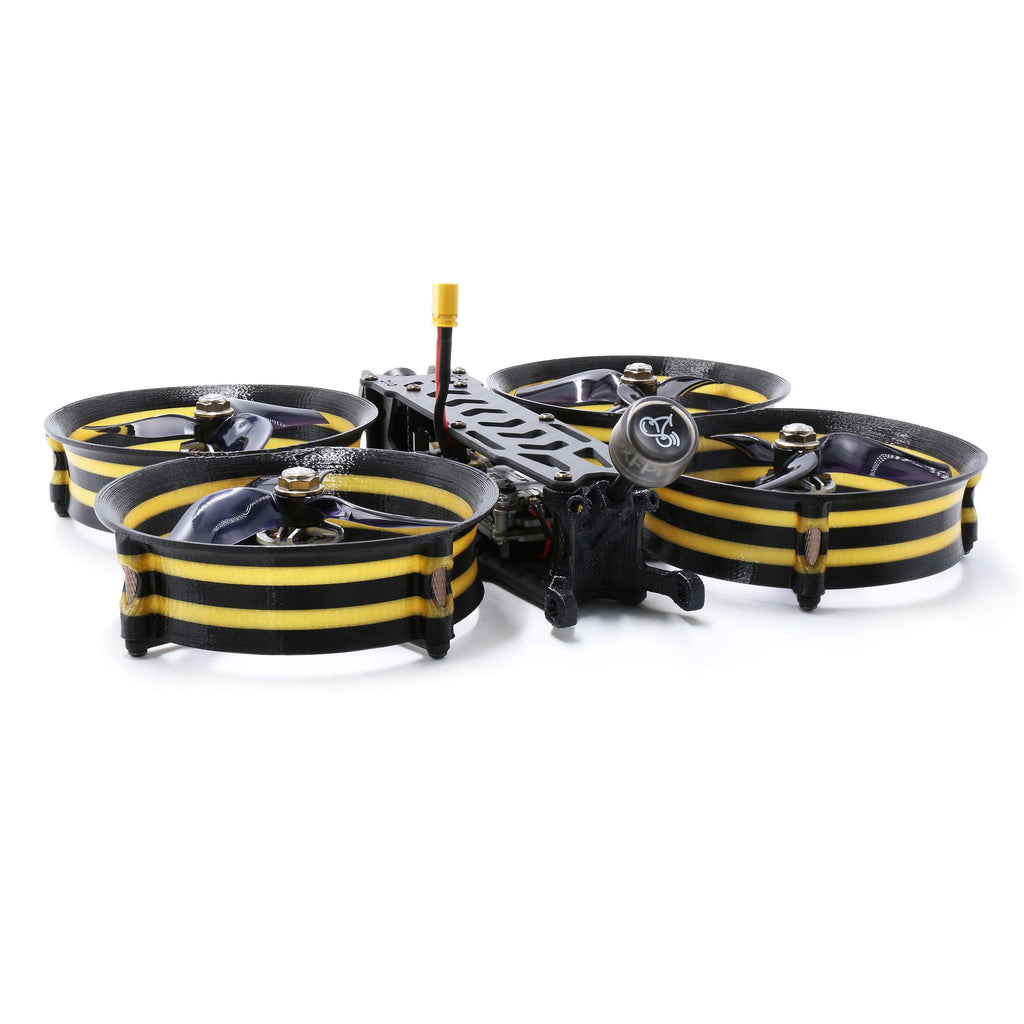

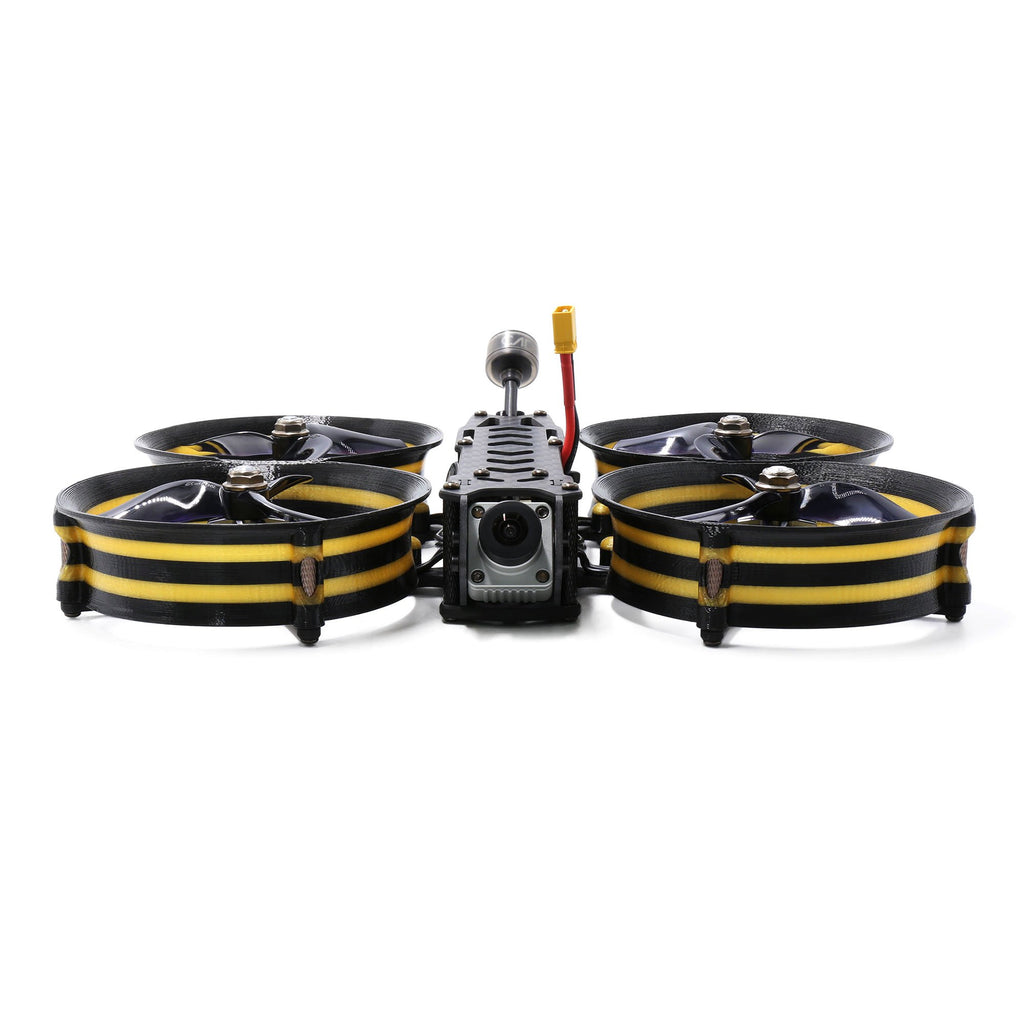

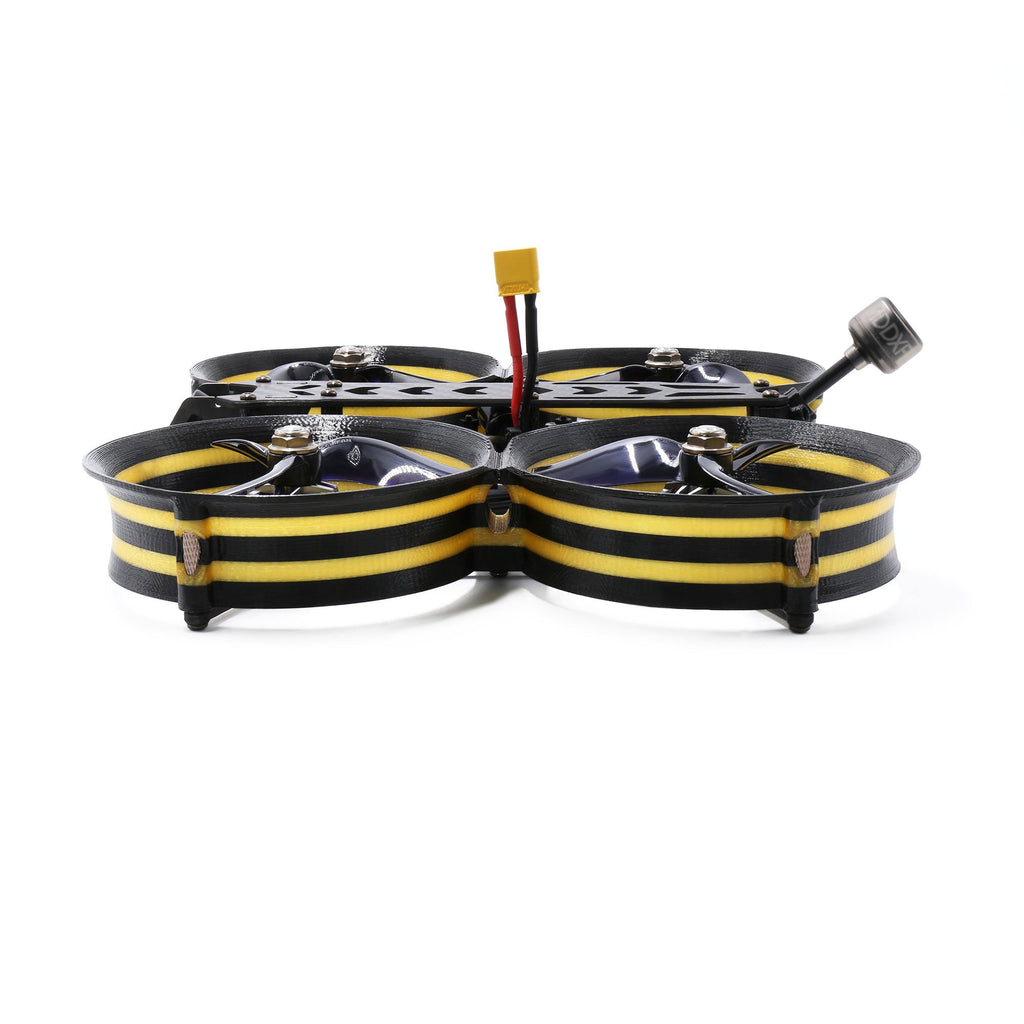

CineGO HD is the latest CineWhoop model of our team. It is equipped with the latest Caddx Vista high-definition image transmission. So far, it is the lightest Cine model. CineGO HD is mainly used for CineWhoop flight. Its ultra-light design is 30% lighter than traditional GoPro 7/8 aircraft. The whole machine is only 247g, and the flight experience is very flexible.
Features:
No Propellers in view.
With Caddx Vista Digital HD video transmission system, Goggle can record 720P video
Equipped with a 3-inch tpu guard frame, Ensure safety and reliability
Full 3K Carbon Fiber
Flight Control System:STABLE F405 SYSTEM
Two types of power. 6S version uses GR1507 2800KV motor. 4S version uses GR1507 3600Kv motor
Full Soft Mounted FC System: Provides a clean operating environment for gyro.
Exquisite Assembly Process: Eliminate any potential installation problems.
Weight:247g(without battery and GoPro Mounts TPU)
Specifications:
Frame:
Full 3K Carbon Fiber
Top plate : 2mm
Bottom plate : 3mm
Side plate : 1.5mm
Wheelbase : 155mm
Motors:
GR1507 2800Kv/3600Kv
Propeller:GemFan 3018 (Three Blades)
Recommended Battery：6S 1050mAh (No inclued)//4S 650mAh-850mAh

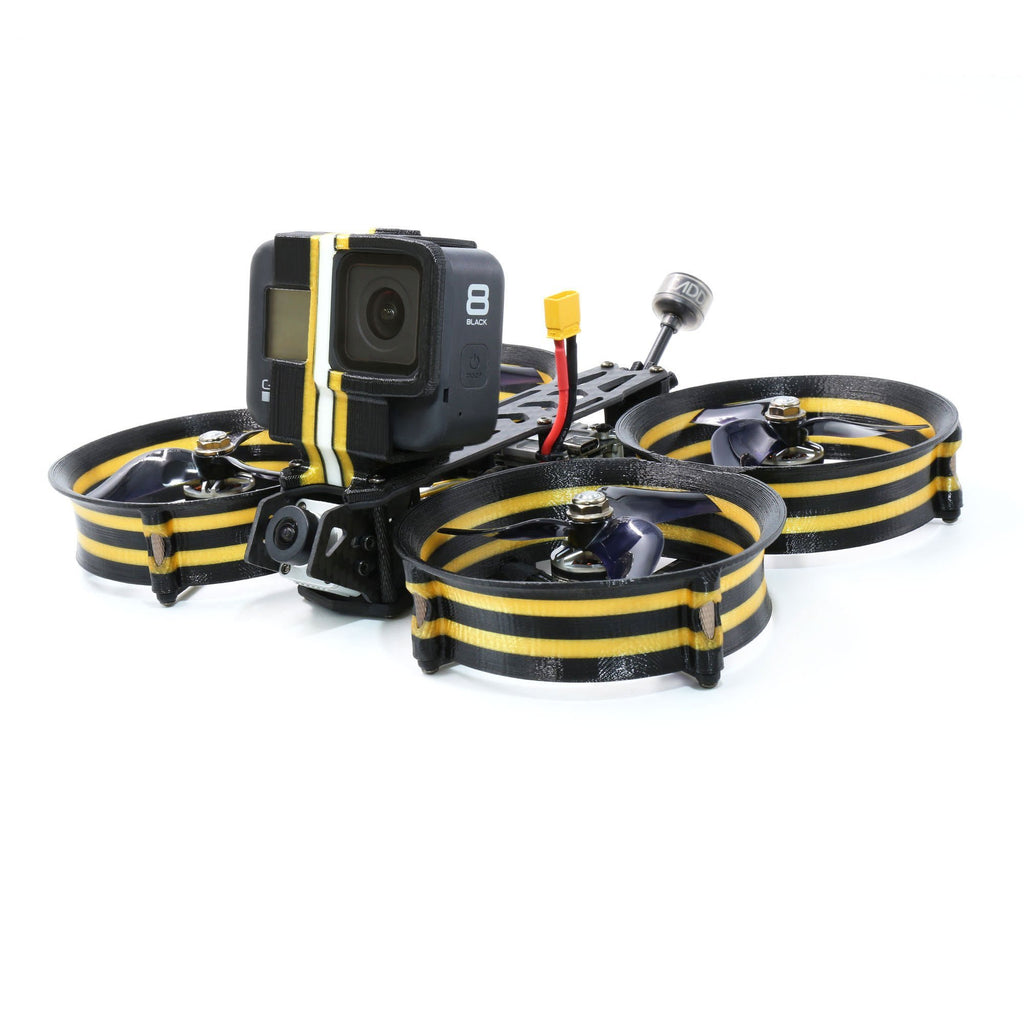

Recommended Camera：GoPro Hero 7/8(No inclued)
Flight / Take off weight is less than 500g
Caddx Vista SPECS:
Size: 30.45 x 29 x 13mm
Weight: 19g
Antenna Connector: U.FL
20×20 stack
200mw to 1200mw max output power
Range 4km max
2S to 6S
High quality mode 30-40 ms
Low latency mode 21-28ms
Compatible with DJI HD camera
Compatible with DJI HD goggles
Electronic System(
STABLE PRO F4 35A
):
STABLE V2 F4 Flight Controller Specs：
Model:STABLE F4 35A
MCU: F405
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
BEC Output: 5V@3A
Integrated LC Filter
Firmware target: OmnibusF4SD
Size: 26x26mm board, 20mm mounting holes (M2)
STABLE V2 F4 ESC BL32 2-6S 4in1 Specs：
MCU:STM32F051
Input:2-6s lipo
Constant:35Amps
Burst:45Amps
Dimensions:31*31mm(including the power pads)
Mounting Holes:20*20mm,M2
Supports Dshot1200,Proshot,Oneshot,Multishot
Current meter: Yes
Target: GEPRC-BL32-4IN1
Include：
1x CineGO HD CineWhoop Quadcopter
4x 3inch Props(pairs)
