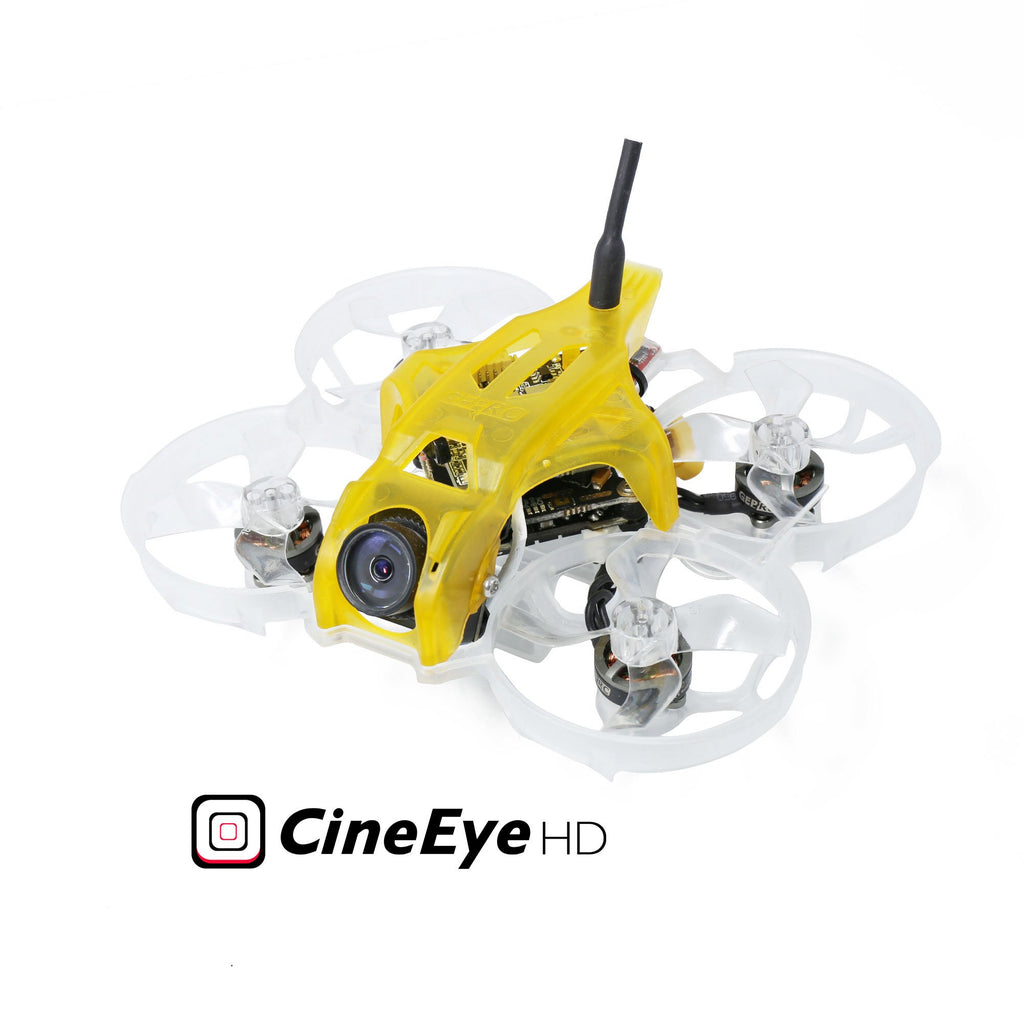

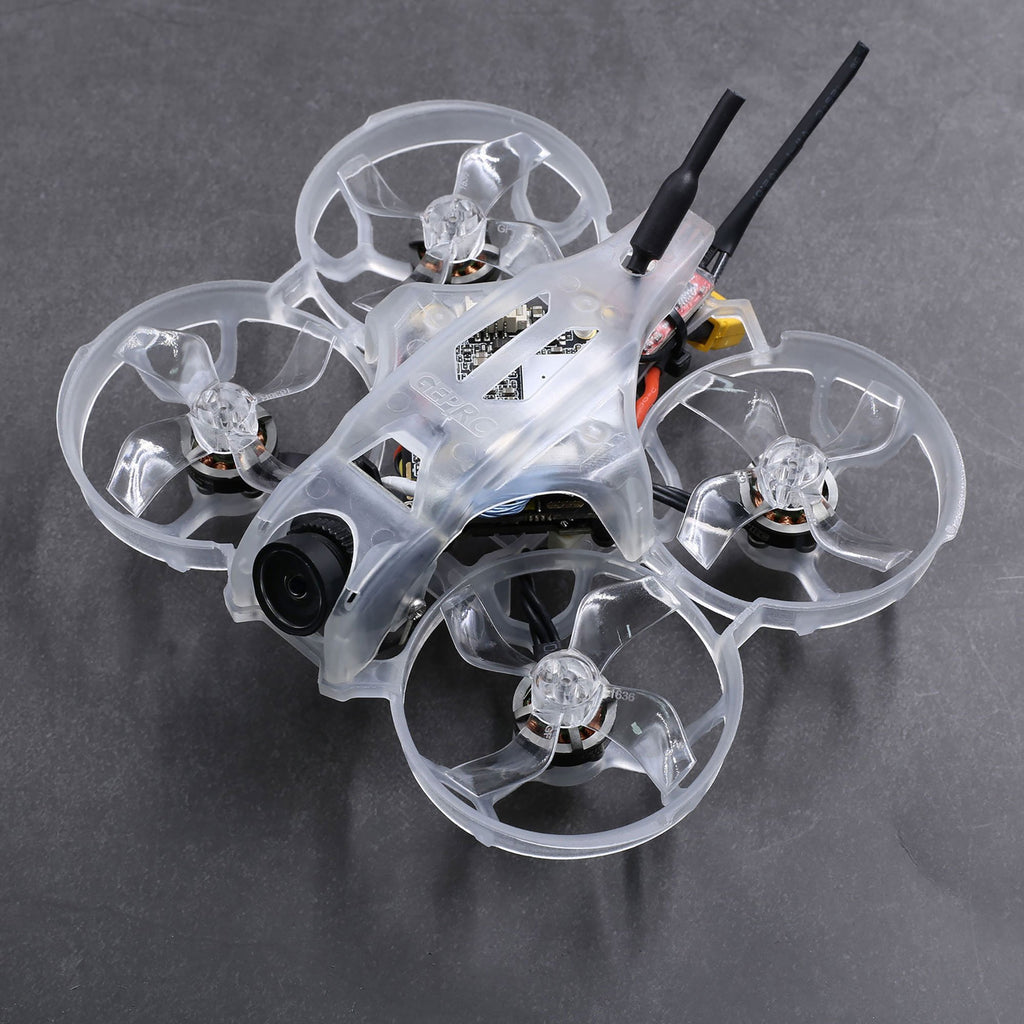

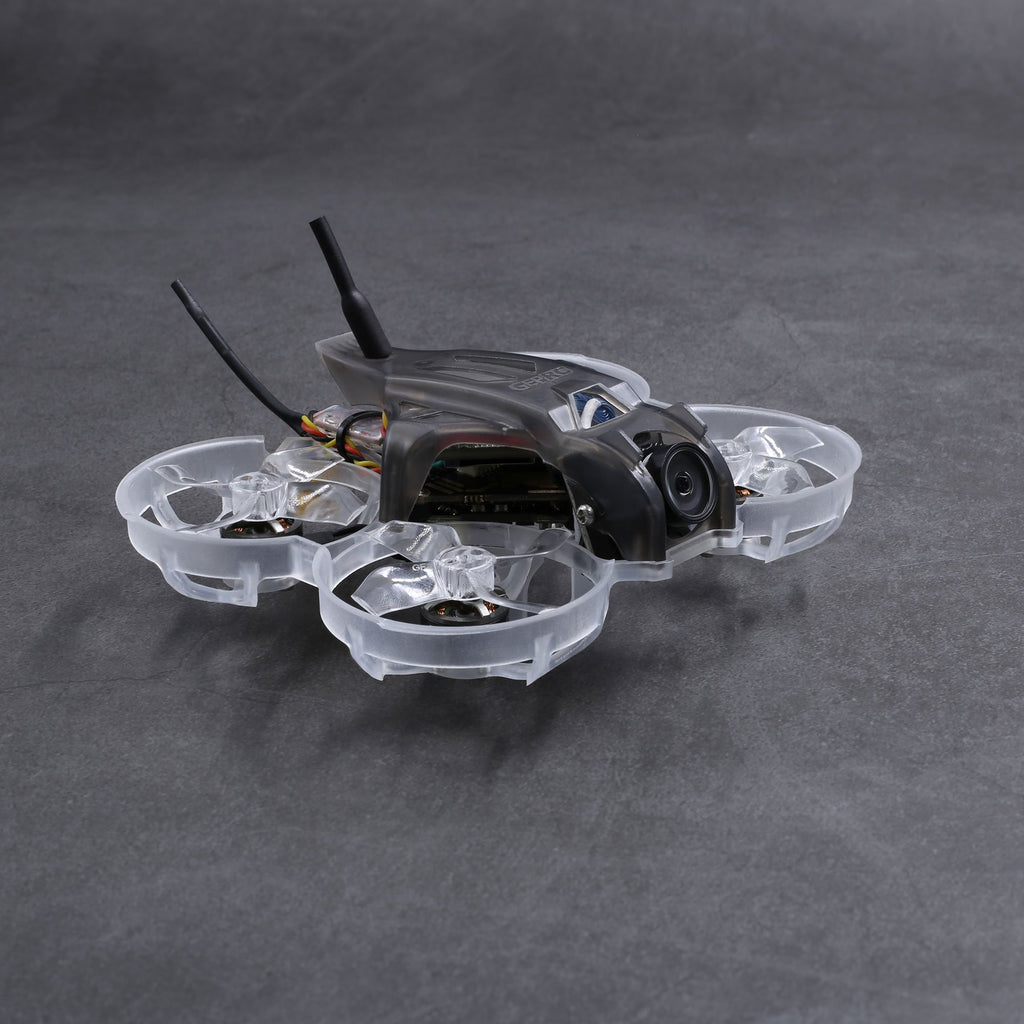

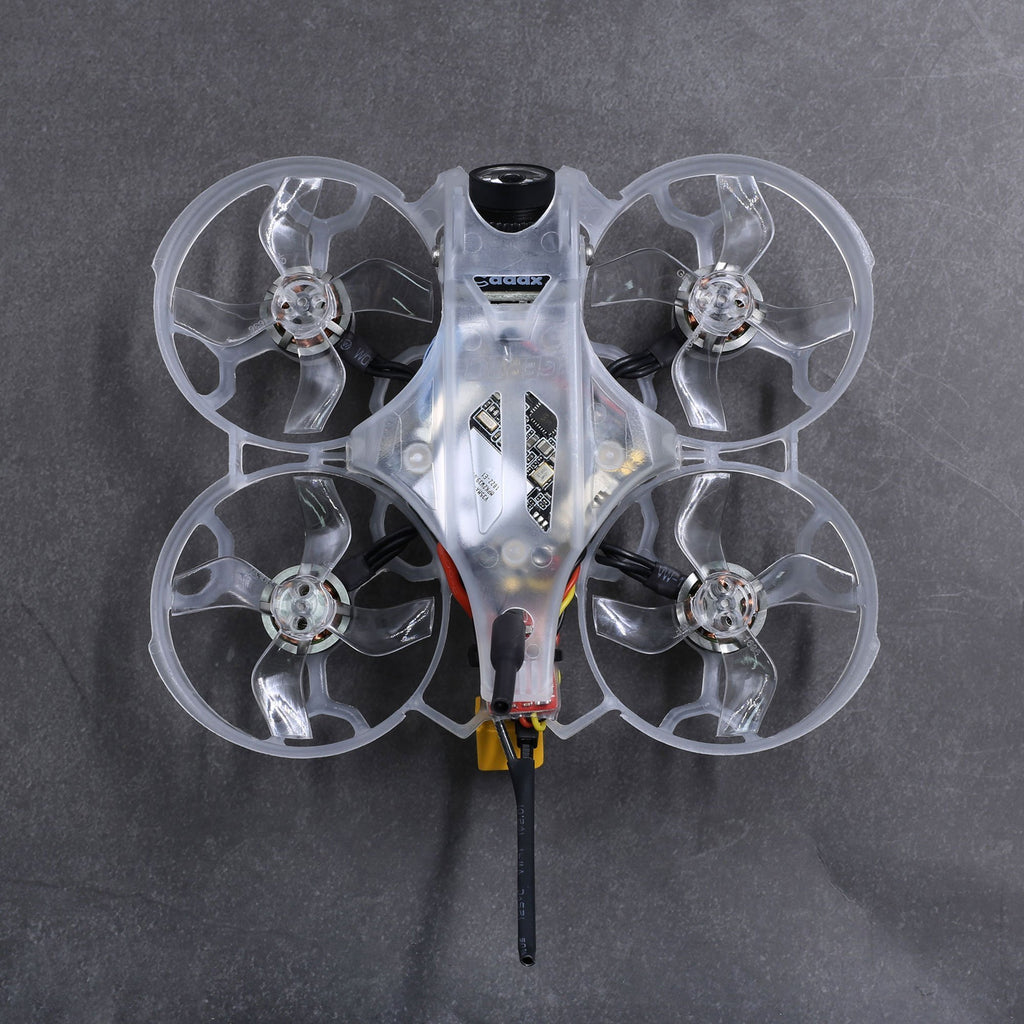

CineEye HD CineWhoop Drone｜FPV 穿越機

CineEye HD CineWhoop Drone｜FPV 穿越機

GEPRC 官方FPV 穿越機，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

CineEye’s frame uses a simple structure and high-quality materials as its foundation to build a frame with excellent toughness and strength. The aircraft as a whole has comprehensive protection electronics, excellent flight performance and Smooth handling feel.

CineEye is designed for indoor Micro FPV Quad. Because of its light weight, it has weak wind resistance. With the Turtle V2 high-definition video lens and stable 5.8g 200mW video transmission, whether you are at a family gathering, recording freely or having an exciting indoor FPV race with friends, you can record every exciting moment while flying .

Powerful flight control module “ GEP-12A-F4 “ which is stable and high-performance computing STM32F411 chip combined with MPU6000 gyroscope to ensure flight stability and comfortable feel. Firmware target: MATEKF411 (MK41), built-in Betaflight OSD, integrated LC filter. The flight controller has a silicone shock-absorbing structure, and the adjusted PID has a significant noise reduction effect.

This micro quad is using the GR1102 10000Kv motors, light weight and sufficient power. Using a 300mAh 4.35V high-voltage lithium battery, paired with GEMFAN 1636-4 40mm propeller, this set of power mix brings the strong lift to the Air.

Features:

No Props and guard in the view

Ultra-light weight

HD 1080@60fps

Caddx baby turtle V2 1080P

5 colors canopy included

Reliable electronic equipment, reducing weight

Specifications:

Name: CineEye HD

FC & ESC:GEP-12A-F4 (BLheli_S)

Frame:GEP-CE1.6

Wheelbase: 79mm

Motors:GR1102 10000KV

Propeller: 1.6 inch

VTX:5.8g 200mW

Camera: Caddx baby turtle V2

Weight: 50g (without battery)

Battery 300mAh 3S battery (No inclueded)

Flight time: Almost 4mins in a smooth flight

Receiver: Frsky XM+ / Frsky R9mm / TBS Nano RX / Flysky A8SV2

Specifications(Caddx baby turtle V2):

Image sensor: 1/2.7″ CMOS sensor

Horizontal: 800TVL

TV system: NTSC/PAL changeable

Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps

Power Input: DC 4.5-20V

FPV FOV: 155°

Recording FOV: 170°

Mini Illumination: 0.01lux

Image Resolution: 2 Megapixels

Lens: 1.8mm Turbo Eye Lens

Working Current: 380mA@5V/160mA@12V (low consumption)

OSD Menu: Yes (Support Voltage Display)

Video Files: MP4

Audio: Support

Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100

S/N Ratio: >60dB (AGC OFF)

Video Output: CVBS

Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)

GEP-12A-F4 System:

MCU: STM32F411

IMU: MPU6000 gyro/accelerometer (SPI)

OSD: BetaFlight OSD w/ AT7456E chip

BEC Output: 5V@2A

Mounting holes: 25.5mm*25.5mm

Input voltage 2-4S LIPO

FC Firmware target: MATEKF411

Continuous current: 12A

ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.

ESC Firmware target: Blheli_S G_H_30

Current meter: 210

VTX 5.8G 200mW

Power : PIT/25/100/200mW

Antenna interface : IPEX (UFL) // 5.8 G Antenna UFL LHCP

Telemetry: IRC Tramp

Integrated LC Filter

Include：

-1 x CineEye HD CineWhoop Drone

-4 x 1636 3-Blade Propellers ( 4 CW & 4 CCW)

-4 x Spare Part Canopy(4 colors)
