CEP-STABLE 12A Whoop Stack｜飛控電變飛塔

CEP-STABLE 12A Whoop Stack｜飛控電變飛塔

GEPRC 官方飛控電變飛塔，已依台灣顧客使用習慣整理名稱、分類與付款方式。下單前請確認規格、接頭、頻段、極化方向、電壓及相關法規需求。

Summary:

Crazy, tiny indoor through the machine must fly control, indoor through the machine into the 4S battery era.

After a long time of research, STABLE 12A Whoop Stack finally came out, the maximum support 4S battery, perfect use of 1103-1105 motor, F4 flight control chip can complete the required operation, MPU6000 gyroscope to ensure the hand, with OSD adjustable parameters, very convenient, very light weight, is the indoor traverser of the choice.Coupled with a 200mW map transmission specifically designed for Whoop classes and toothpick racks, it has stable signals, clean graphics, and light weight.Easy to use.

GEP-12A-F4 Flight contorller:

Specifications:

Model Name:GEP-12A-F4

MCU: STM32F411

IMU: MPU6000 gyro/accelerometer (SPI)

OSD: BetaFlight OSD w/ AT7456E chip

Baro:NO

BEC Output: 5V@1A

Integrated LC Filter

Firmware target: GEPRCF411

Size: 28.5×28.5mm board,25.5mm mounting holes (M2)

Installing Hole: 25.5×25.5mm, M2

ESC MCU: BB21F16G

Continuous current: 12A

Input:2-4s lipo

Supports Dshot600 ,Oneshot,Multishot

Current meter: 210

Target: G_H_30

VTX Specifications:

Model Name:GEP-VTX200-Whoop

Item name: 25~200mw 48CH VTX FPV Transmitter

Output power: Pit/25/100/200mw switchable

Channels: 48CH

Input voltage: 4.5V – 5.3V

Current consumption: 300mA(type)

Antenna: RG178 antenna U.FL interface

Frequency: 5.8GHz 5 bands 48 channels With Raceband

Video Format:PAL/NTSC

Control protocol：IRC Tramp

Weight: 2g without antenna

Receiver Support:

Frsky XM/XM+/R-XSR

Futaba Receiver

DSM/DSMX

FlySky Receive

TBS Crossfire Receiver

AC900

Most receivers that support SBUS

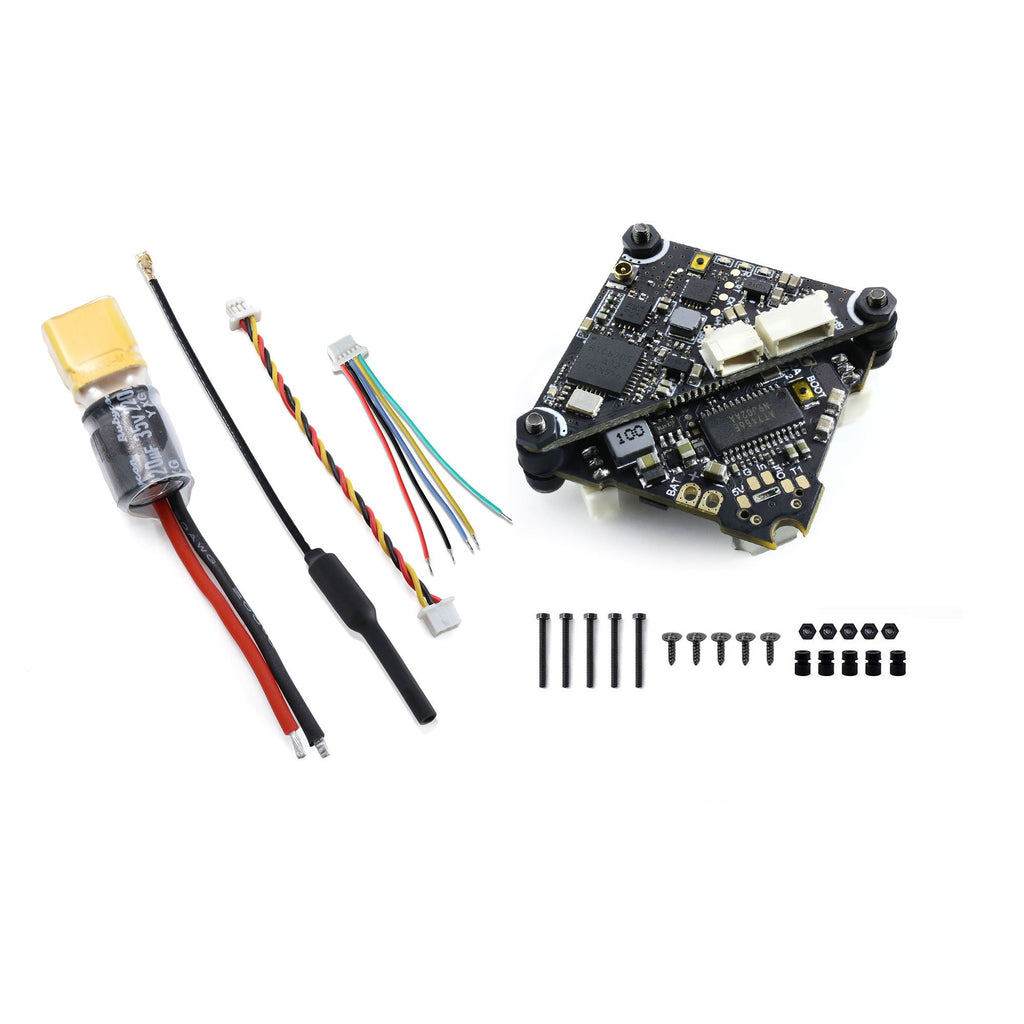

Include：

– 1 x GEP-12A-F4

– 1 x GEP-VTX200-Whoop

– 1 x Power cable

– 8 x screw

– 4 x Soft silicone
