CaddxFPV Protos FPV 穿越機到手飛套裝｜FPV 穿越機
CaddxFPV／Walksnail 官方 FPV 穿越機，已依台灣使用者習慣整理繁體中文名稱與規格。下單前請確認型號、版本、接頭、尺寸及相容設備；套裝內容以所選規格為準。

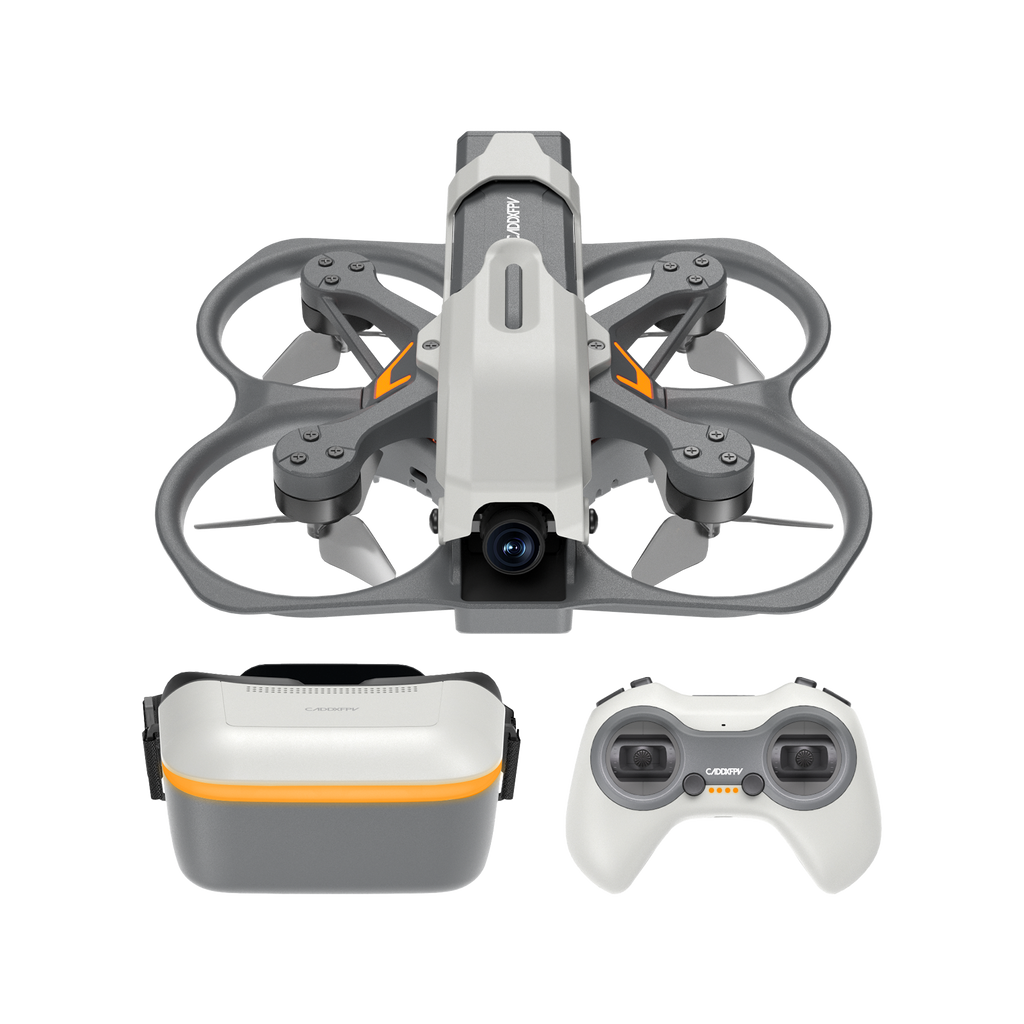

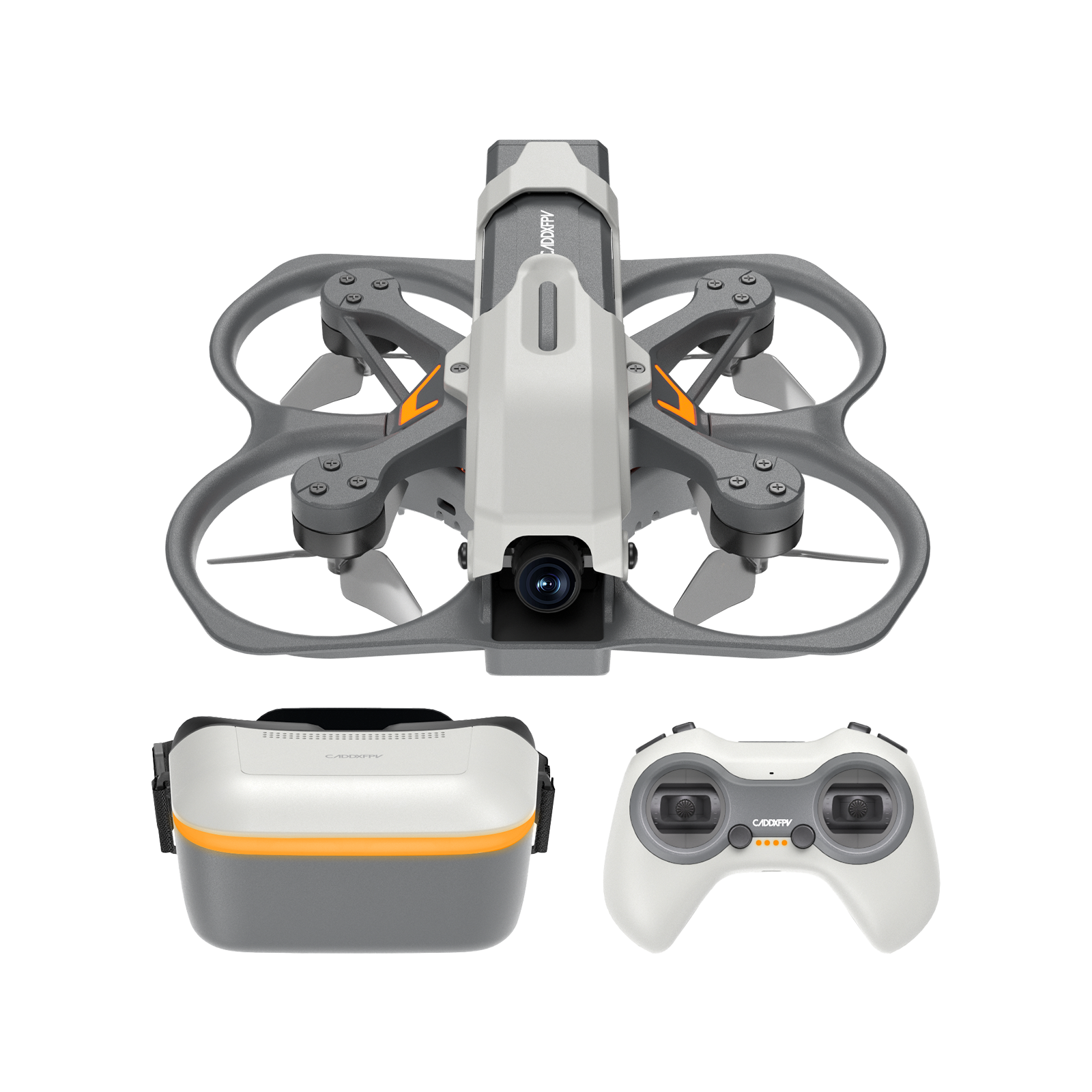

CADDXFPV Protos FPV Drone RTF Kit
Instant Control. Total Confidence.
Key 產品特色 Highlight
Feather-light Build. Rock-Solid Signal
At only 6g, this ultra-light digital HD VTX makes your drone lighter, its signal stronger, and its flight smoother.
Optimized Brushless Motor for Instant Takeoff
High RPM and efficient power delivery ensure smooth, responsive performance with minimal delay, giving you faster launches and steady flight control.
Your Flight, Redefined
Dive into the action with our 4.5" high-resolution FPV display. Every detail, from the sharp edges of urban landscapes to the vibrant hues of nature, springs to life with stunning clarity and rich color.
Strong Low-Light Performance
With 0.01 Lux low-light sensitivity, smooth 1080P/60FPS video, and a 147° FOV, you'll capture every detail—even in challenging light.
Immersive, Eye-Friendly Goggles
Strong signal, 256 GB recording, and custom diopter lenses deliver an all-day clear view. A stylish, LED-accented frame completes the immersive flight experience.
Start as a Beginner, Fly Like a Pro
Three intelligent flight modes help you progress from simple flying to advanced maneuvers with confidence.
Smart Hover & Fail-Safe Lock
Optical flow enables precise indoor hovering, with a smart failsafe lock for easy emergency recovery.
Make Stunts Look Easy
Pull off flips, rolls, and 180° spins with ease for an exciting flying experience-—show off smooth tricks with minimal effort.
A-LINK ELRS Control, Ultimate Freedom
Powered by A-LINK ELRS, it delivers millisecond-level response, long-range performance, and strong signal penetration. It’s also compatible with popular FPV simulators like Liftoff.
Smart Charging Anywhere
Integrated safety systems protect and prolong battery life. Universal Type-C support means convenient charging on the go.
*The first 200 orders come with a free charger plug! Compatible with all standard Type-C cable for ultimate convenience.
FPV Drone for Every Play
Flying anytime anywhere, ready for all your FPV adventures
包裝內容
產品規格
| PROTOS | FC | VTX | |||||
| Flight Control | Caddx Protos Aio 1.0 | Main Control Chip | STM32-F405RGT6 | VTX Model | Ascent Lite | ||
| Video Transmission | Ascent Lite | Gyroscope | BMI270 | Image Sensor | 1 / 2.8 inch Sensor | ||
| Motor Diagonal Distance | 78mm | Barometer | SPL06 | FOV | 147° | ||
| Motor | 1102 14000KV | Onboard Receiver | ESP8285 | Ratio | 16:9 | ||
| Propeller | HQprop U40mm×3GR-PC-1.5mm | Receiver Protocol | ELRS 2.4GHz | Resolution | 1080P 60FPS;720P 60FPS | ||
| Weight | 104.4g±1.5g | ESC Protocol Compatibility | Bluejay / BLHeli-S Optional | Built-in Storage | N/A | ||
| Dimensions | 110x102.8x41mm | ESC Maximum Current | 12A (Single Channel) | Max Transmission Range | Max 3km | ||
| Flight Endurance | 8.5min ±0.5min | Latency | Average delay 35ms | ||||
| RC Receiver | ELRS 2.4GHz | Power | 25~100mW |
| Ascent Goggles | |
| Communication Frequency | 5.725-5.850GHZ |
| Transmit Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot |
| Transmission Resolution | 1080P60FPS, 720P60FPS |
| Code Rate | Max 50 Mbps |
| Minimum Latency | Average 32ms |
| Average Gain | 4.9dBi |
| Polarization | LHCP |
| Transmission Distance | >4km |
| Channel | 8 |
| Screen Resolution | 1920*1080 / 60Hz |
| Screen Material | LCD |
| Screen Size | 4.5 Inch |
| Wide Voltage Input | 6V~25.2V (2S~6S) |
| SD Card Slot | Support 256G |
| CADDXFPV Alink | |
| Main Control Chip | AT32 F413RCT7 |
| RF Module | ELRS 2.4GHZ |
| RF Protocol | CRSF |
| Max RF Power | 100mW (20dB) |
| Number of Available Channels | 10 Channels (including 4 joystick channels) |
| Joystick Type | Full-Bearing Hall-Sensor Joystick Assembly |
| Function Switch | 1 x Latching Button / 2 x Momentary Buttons / 2 x 3-Position Toggle Switches / 1 x Scroll Wheel |
| Status Indicator Module | 4 x Status Indicator LEDs / Buzzer |
| Charging & Communication Interface | USB-Type C |
| Battery Specification | Lipo 1s 1000mAh |
| Max Charging Power | 5V / 1A / 3.50W |
| Operating Voltage Range | DC 3.50V~4.20V |
| Dimensions | 158mmx108mmx58mm |
| Weight | 180g±5g |
| 2S Charger | 2S Battery | |||
| Name | 2S Charger | Name | 2S Battery | |
| Display | LEDx4 | Battery Type | Li-ion (Lithium-ion Battery) | |
| Channel | 3 (Sequential Charging) | Battery Capacity | 840mAh | |
| Function Selection | Charging, Storage | Battery Specification | 2S1P (2 Cells in Series, 1 in Parallel) | |
| Battery Type | Li-ion 2S 840mAh Battery | Discharge Rate (C-Rate) | 15C | |
| Input Voltage | 12‒15V (PD Input, 5V Adapter Not Supported) | Maximum Power | 6.384Wh | |
| Output Voltage | 8.7V | Voltage Range | 6.80V~8.70V | |
| Input Current | Max.3A | Max Charging Voltage | 8.5V | |
| Charging Current | Max.3A | Charging Method | 2S Charger | |
| Balancing Current | Max.0.21A | Charging Time | ≤20min | |
| Charging Power | Max.25W | Protection Mechanism | When the voltage of a single cell drops below 2.8V, battery lock protection is triggered and charging is required to reactivate |
|
| Discharging Power | Total Power: 5W (Max 1.6W per Channel) | Dimensions | 77.5x24x21mm | |
| Interface | Type-C | Weight | 41.9g±0.5g | |
| Operating Temperature | -10~45℃ | |||
| Storage Temperature | -20℃~60℃ | |||
| Dimensions | 94x63x39.1mm | |||
| Weight | 65±0.5g | |||
